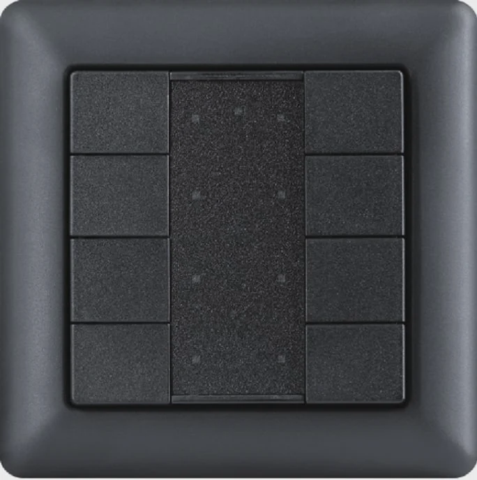

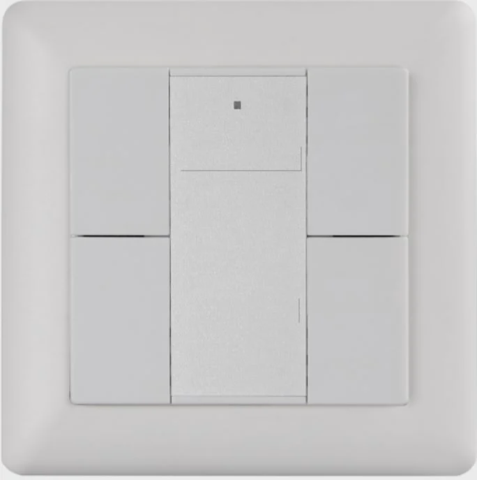

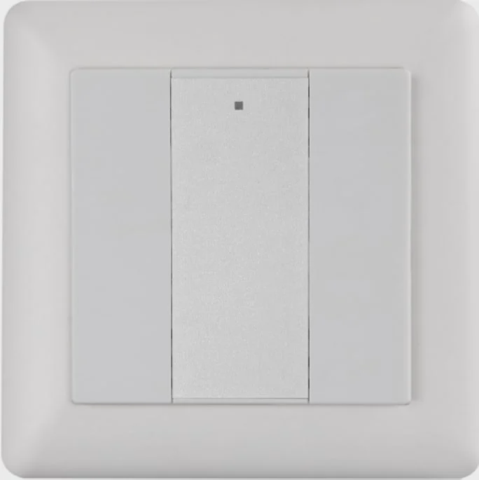

4 configurations
14xD2 Control Panels (DALI-2)
DALI-2 certified, easy to use control panel range, with an industry standard 55×55 form factor, compatible with frames from other manufacturers to seamlessly integrate with the electrical accessories in a space.
Technical specifications
ProtocolDALI-2, IEC 62386 parts 101, 103, 301, 332
Button configurations2, 4, 6 or 8 buttons
DALI supply input12–22.5 V
DALI consumption10 mA max
Start-up time≤ 500 ms
Dimensions (without frame)71.2 × 71.2 × 22 mm
Weight62 g
ColoursWhite (RAL 9016), Signal Black (RAL 9004)
IP ratingIP20
Ambient temperature0 °C to +50 °C
FramesFits Berker, Elko, Gira, Jung, Merten and Schneider 55 mm frames
Compatible controllers950 Application Controller, Designer 5.7.0 or later
