14xD2 Control Panels (DALI-2)
DALI-2 certified, easy to use control panel range, with an industry standard 55×55 form factor, compatible with
| Protocol | DALI-2, IEC 62386 parts 101, 103, 301, 332 |

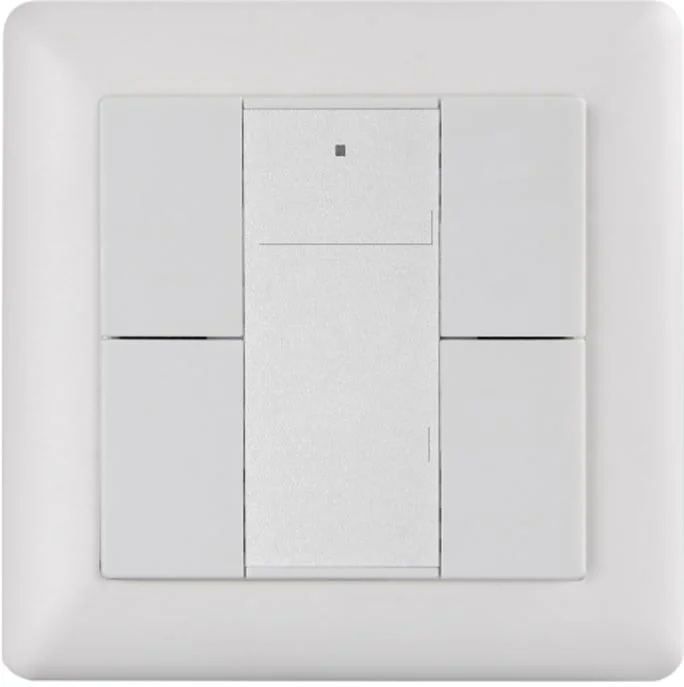

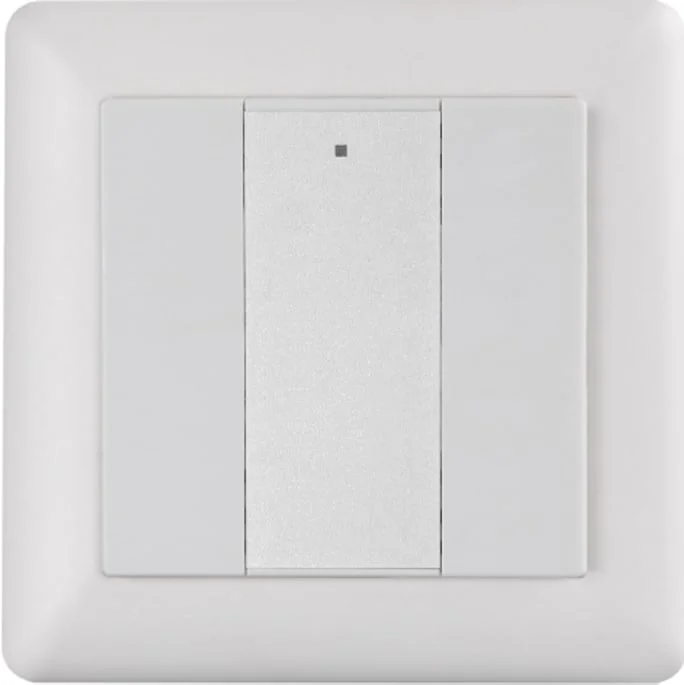

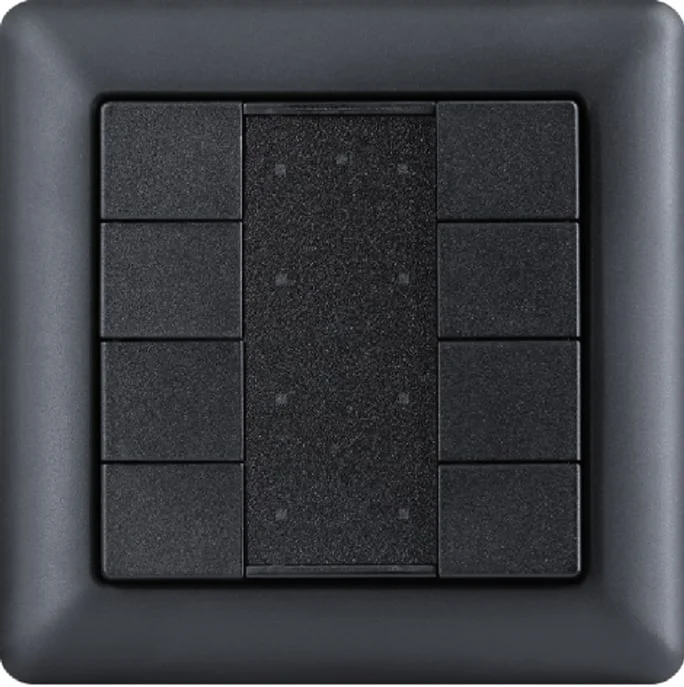

| Button configurations | 2, 4, 6 or 8 buttons |
| DALI supply input | 12–22.5 V |
| DALI consumption | 10 mA max |
| Start-up time | ≤ 500 ms |
| Dimensions (without frame) | 71.2 × 71.2 × 22 mm |
| Weight | 62 g |
| Colours | White (RAL 9016), Signal Black (RAL 9004) |
| IP rating | IP20 |
| Ambient temperature | 0 °C to +50 °C |
| Frames | Fits Berker, Elko, Gira, Jung, Merten and Schneider 55 mm frames |
| Compatible controllers | 950 Application Controller, Designer 5.7.0 or later |
