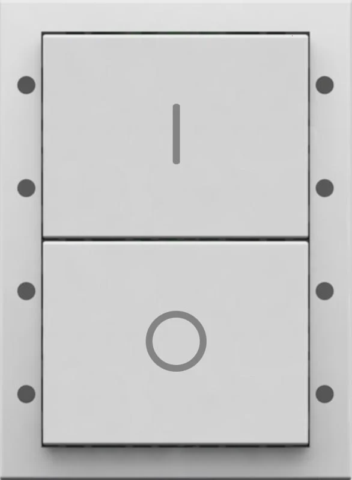

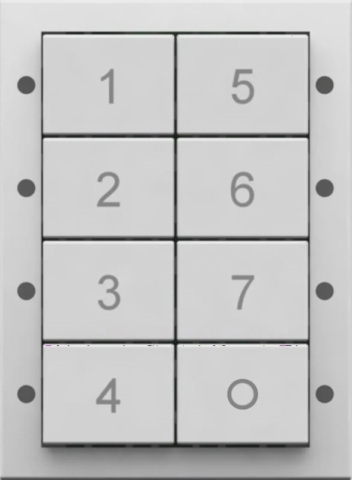

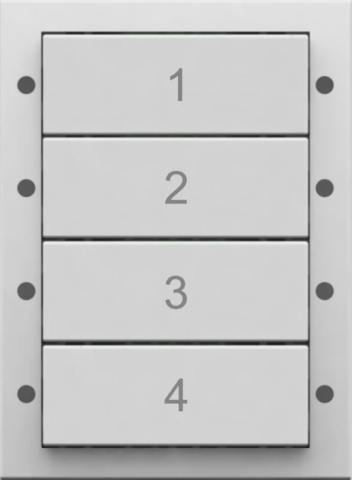

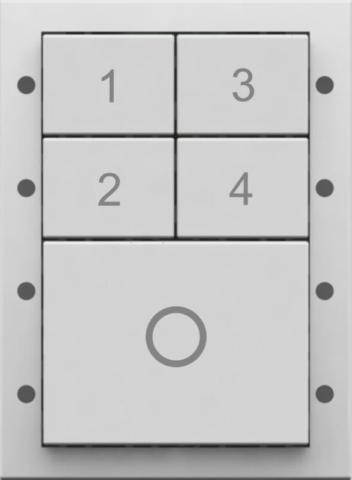

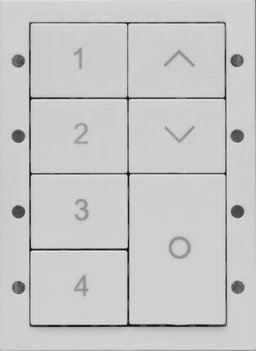

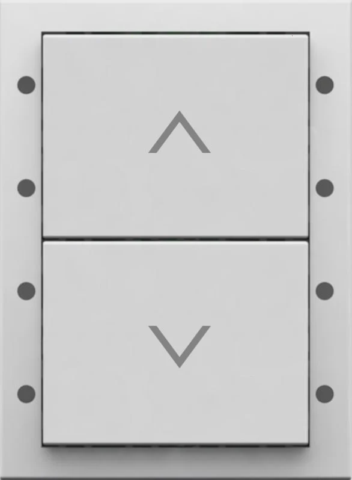

6 configurations
13xx Modular Panels
A versatile range of control panels which blends in perfectly into almost any space. Modular design with high quality tactile buttons with LED status indicators per button.
Technical specifications
DALI supply input13–22.5 V
DALI consumption10 mA max
IR frequency36 kHz
Start-up time≤ 500 ms
ConnectionRemovable connector block, 0.5–1.5 mm² solid or stranded
Module dimensions35.4 × 48.4 × 31.8 mm
Weight41 g with DALI connector
ColoursWhite (RAL 9003), Anthracite Grey (RAL 7016)
IP ratingIP30
Ambient temperature0 °C to +40 °C
StandardsEN 55015, EN 61547, EN 61347-2-11
ProtocolDALI
