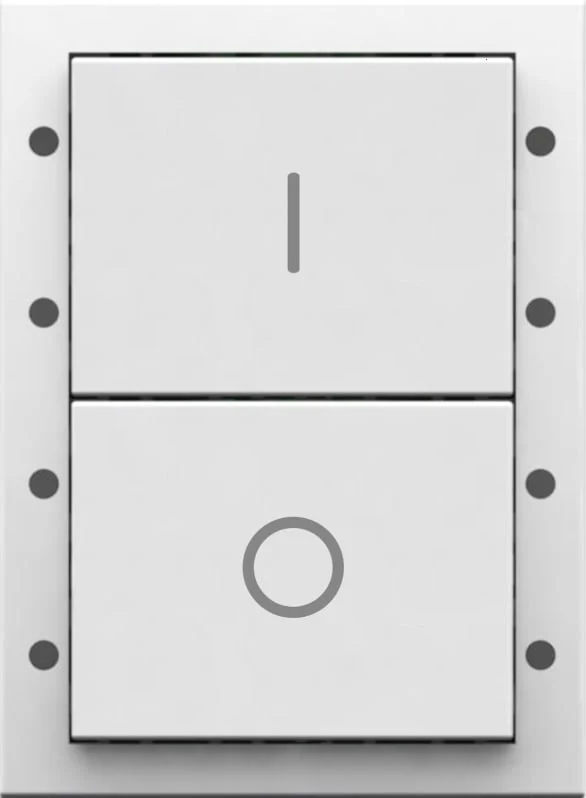

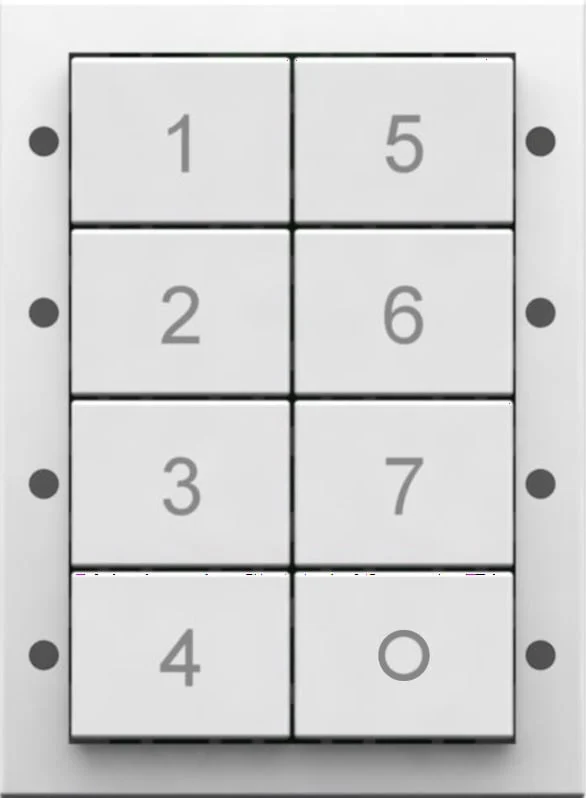

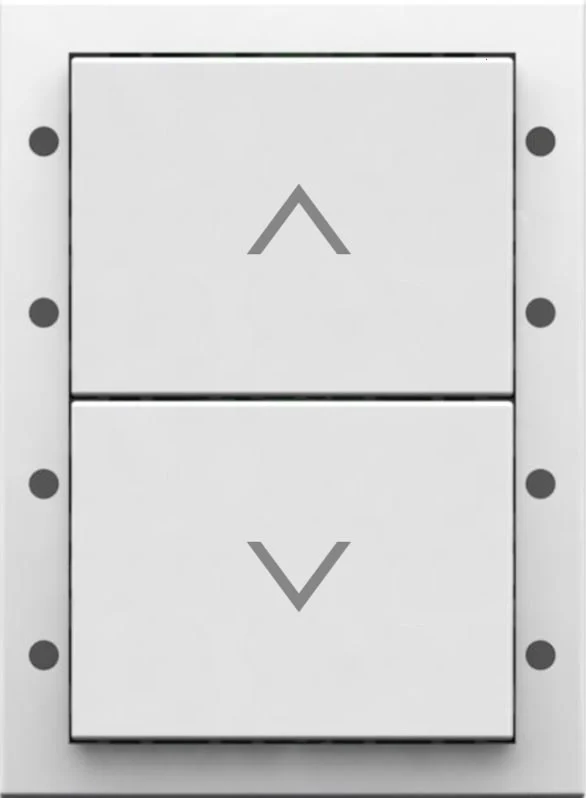

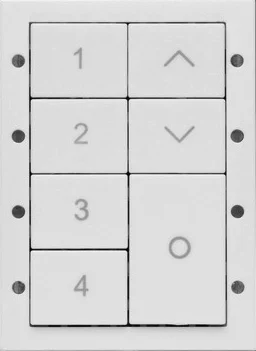

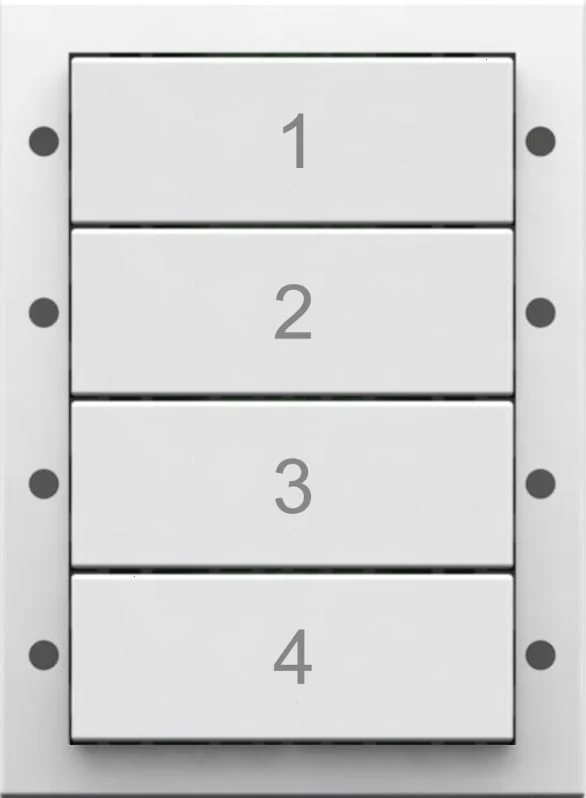

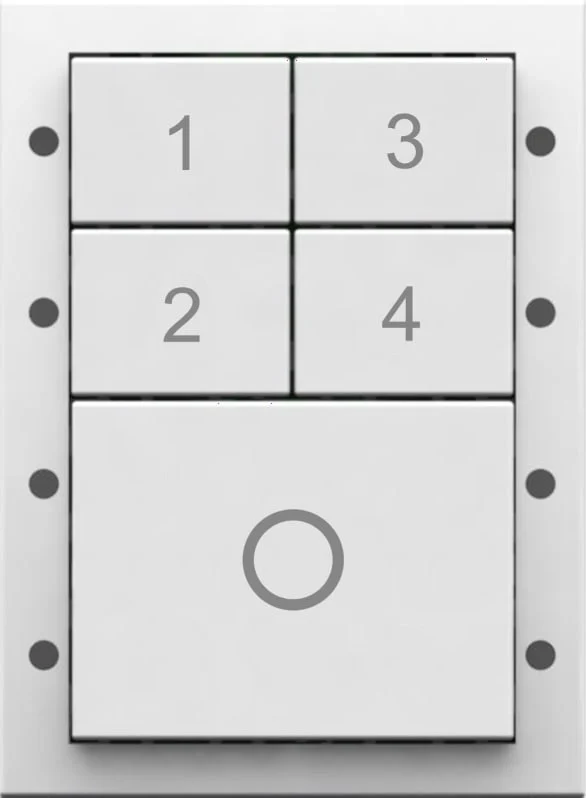

13xx Modular Panels
A versatile range of control panels which blends in perfectly into almost any space.
| DALI supply input | 13–22.5 V |
| DALI consumption | 10 mA max |
| IR frequency | 36 kHz |
| Start-up time | ≤ 500 ms |
| Connection | Removable connector block, 0.5–1.5 mm² solid or stranded |
| Module dimensions | 35.4 × 48.4 × 31.8 mm |
| Weight | 41 g with DALI connector |
| Colours | White (RAL 9003), Anthracite Grey (RAL 7016) |
| IP rating | IP30 |
| Ambient temperature | 0 °C to +40 °C |
| Standards | EN 55015, EN 61547, EN 61347-2-11 |
| Protocol | DALI |
