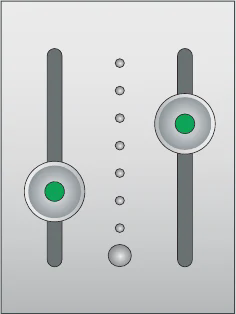

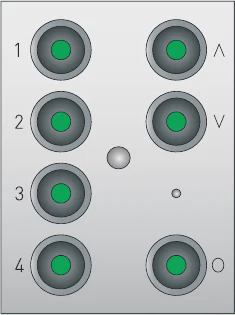

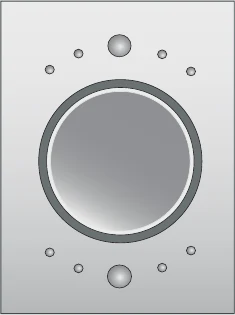

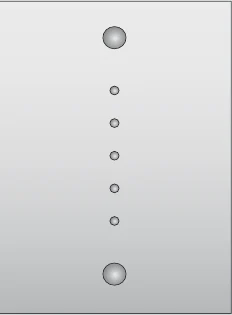

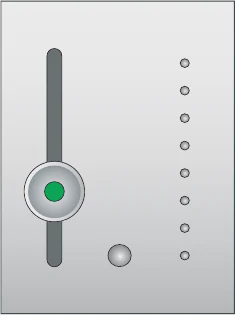

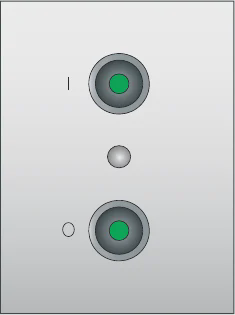

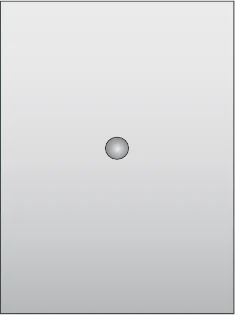

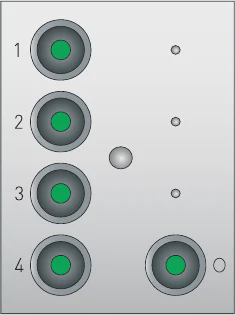

10 configurations
12x Modular Panels

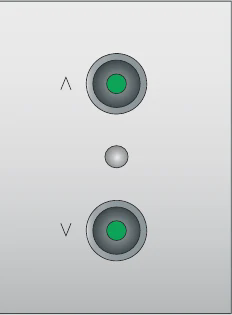

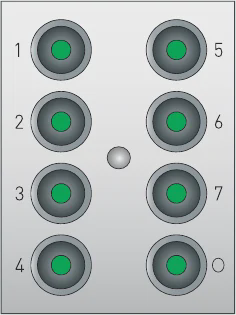

A simple and classic design of control panels with a range of button layouts and finishes
Technical specifications
ProtocolDALI
DALI supply input12–22.5 V
DALI consumption10 mA
IR frequency36 kHz
ConnectionRemovable connector block, 0.5–1.5 mm² solid or stranded
Module dimensions35.4 × 31.8 × 48.4 mm
Weight41 g with DALI connector
ColoursWhite (RAL 9016), Anthracite Grey (RAL 7016)
IP ratingIP30
Ambient temperature0 °C to +50 °C
FramesSatin white plastic 200S / 200D, stainless steel 232S / 232D (single / double gang)
Designer / Toolbox5.2.0 or later / 2.4.2 or later
