4 configurations
23x Frames
Range of button panel frame kits (frame and chassis) with customisable options. For use with Helvar 12x and 13x control modules.
Technical specifications
For13x and 12x modular panels
FinishesWhite plastic (230), polished brass (231), stainless steel (232), painted white metal (234), black plastic (235)

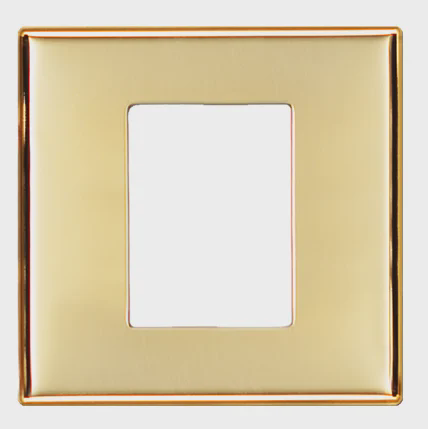

Single frame86 × 86 × 4.5 mm (plastic 88.4 × 88.4 × 4.5 mm)

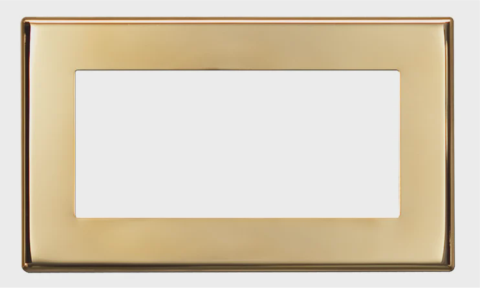

Double frame146 × 86 × 4.5 mm (plastic 160 × 88.4 × 4.5 mm)

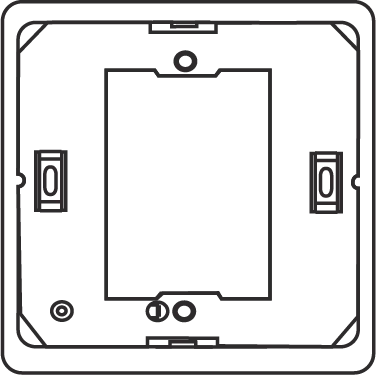

Single chassis86 × 86 × 5.9 mm

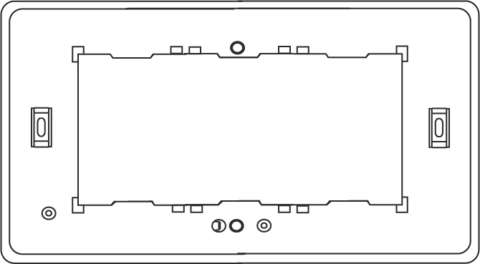

Double chassis146 × 86 × 5.9 mm
WeightSingle kit 100 g, double kit 144 g
StandardsWEEE and RoHS
