5 configurations
19x ILLUSTRIS Scene Panels

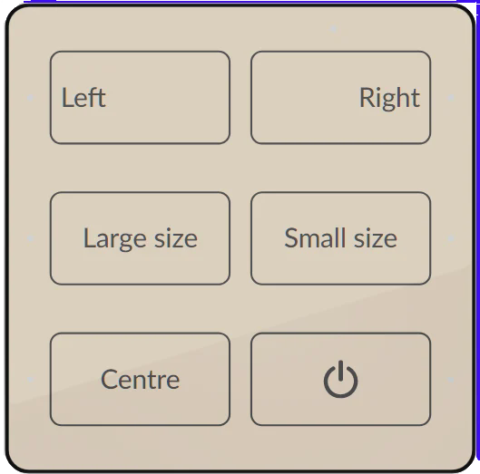

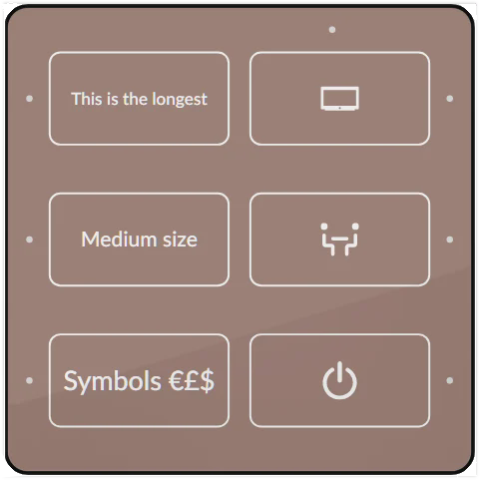

Touch panel for scene control. Sleek and modern design with intuitive haptic feedback response. Choose front fascia and rear connection plate separately according to your needs.
Technical specifications
ProtocolDALI (IEC 62386, part 209 for CT and x-y colour)
WirelessBluetooth Smart
DALI supply input9.5–22.5 V
DALI consumption22 mA typical @ 16 V, 40 mA max @ 9.5 V

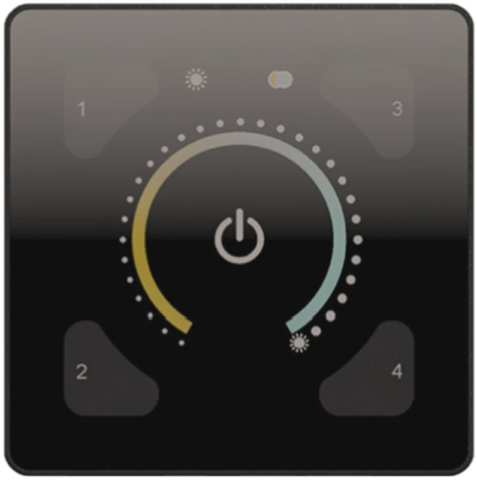

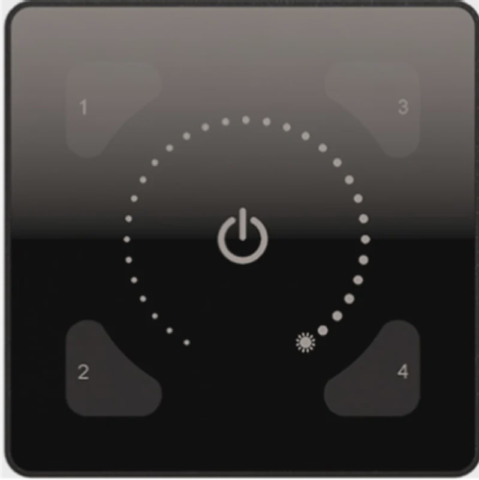

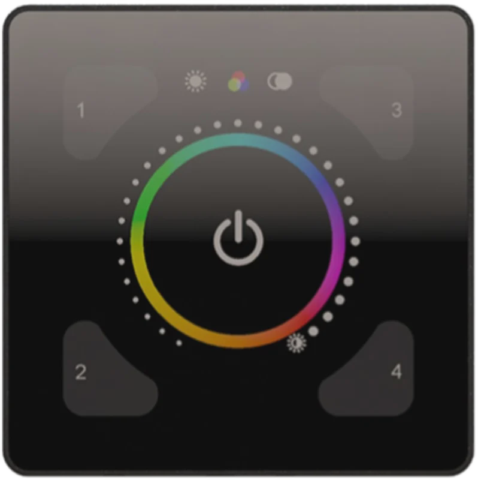

Models191 scene, 192 colour temperature, 193 full colour
Fascia19xHx glass 96 × 96 mm, 19xPx acrylic 89 × 89 mm, black or white
Weight19xHx 150 g, 19xPx 90 g
IP ratingIP30, IP44 with ISBW/ISBB gasket (glass fascia)
Ambient temperature0 °C to +50 °C
Designer5.3.0 or later, 5.4.3 for custom panels
