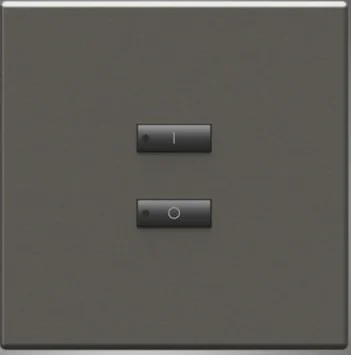

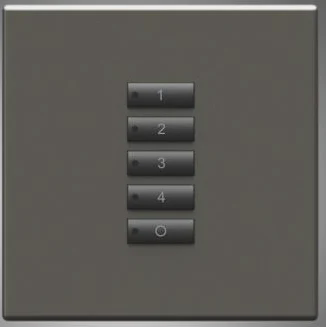

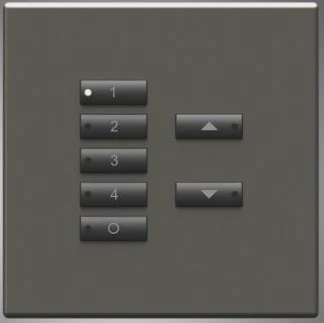

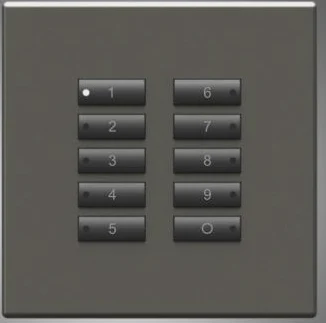

5 configurations
16xx Control Panels
A contemporary range of control panels available in different button layouts and a choice of high end finishes. Discrete LED button indicator and integrated infrared receiver allowing for remote operation using a handheld remote control.
Technical specifications
ProtocolDALI (IEC 62386)
DALI supply input13–22.5 V
DALI consumption10 mA
IR frequency36 kHz
Connection2-pole connector block, 0.5–1.5 mm², max 300 m @ 1.5 mm²
Dimensions86 × 86 × 25 mm
Weight150 g
MaterialMetal fascia, black plastic buttons
Fascia finishesAntique bronze, mirrored stainless, polished brass, polished nickel, stainless steel, painted white
IP ratingIP30
Ambient temperature0 °C to +40 °C
Designer / Toolbox4.2.18 or higher / 2.3.3 or higher
