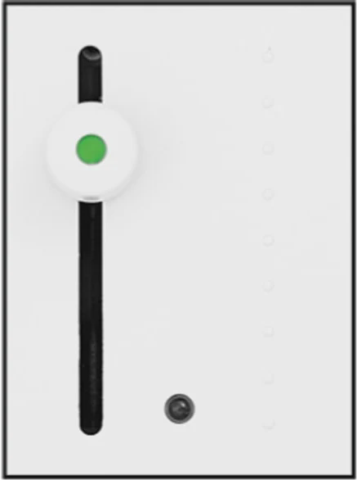

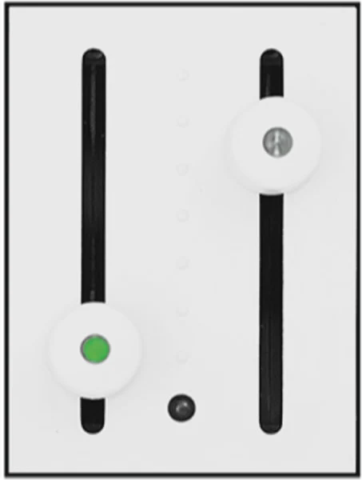

2 configurations
11xD2 Modular Panels
DALI-2 certified range of sliders with a modular design for intuitive dimming control of spaces.
Technical specifications
ProtocolDALI-2, IEC 62386 parts 101, 103, 301/302, 332
DALI supply input12–22.5 V
DALI consumption10 mA max
Start-up time≤ 500 ms
ConnectionRemovable connector block, 0.5–1.5 mm² solid or stranded
Module dimensions35.4 × 48.4 × 31.8 mm
Weight41 g with DALI connector
ColoursWhite (RAL 9003), Anthracite Grey (RAL 7016)
IP ratingIP30
Ambient temperature0 °C to +40 °C
Compatible controllersMulti Master Application Controllers
IR receiverNone on 11xD2 sliders
Designer5.8.4 or later
