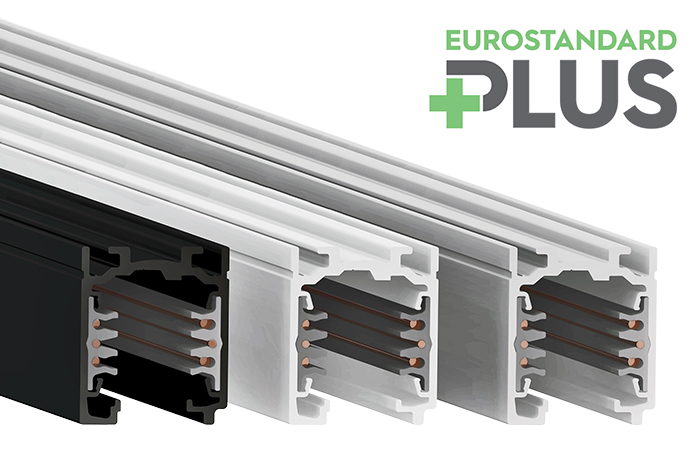

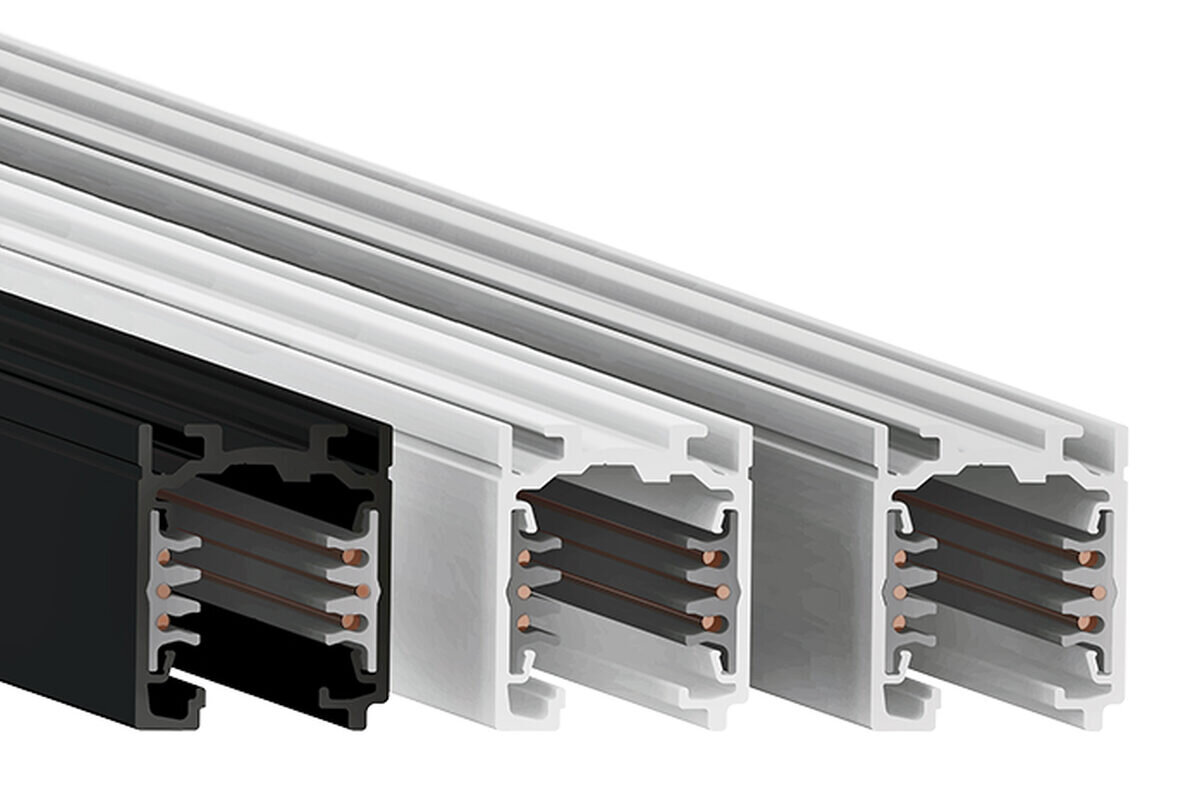

In July 2018 we started supplying A.A.G. Stucchi's Eurostandard Plus track from Dubai, for projects in the UAE, Bahrain, Kuwait, Saudi Arabia, Oman and the rest of the Middle East. It is a three-circuit mains track with six copper conductors in an extruded aluminium body, built around the Eurostandard Plus DALI platform so the same run can carry fixed output and dimmable luminaires.

Three circuits, six conductors

A three-circuit track lets you split the spotlights on one run into three groups and switch or dim each group on its own: window wall on one circuit, display on another, general light on the third. The extra conductors in Eurostandard Plus are what make it a DALI platform, so controllable luminaires can be addressed over the track itself instead of needing a separate control cable. Luminaires without control simply run as fixed output on their circuit.

Finishes and lengths

  • Colours: black (B), anodised (G) and white (W).
  • Lengths: 1 m, 2 m, 3 m and 4 m, joined with connectors for longer runs.
  • Accessories: straight joints, corners, T-connectors, flexible connectors, end feeds and suspension kits.

The track was easy to mount and extend as a modular system, and it was compatible with most international adaptors and accessories, such as Global Trac.

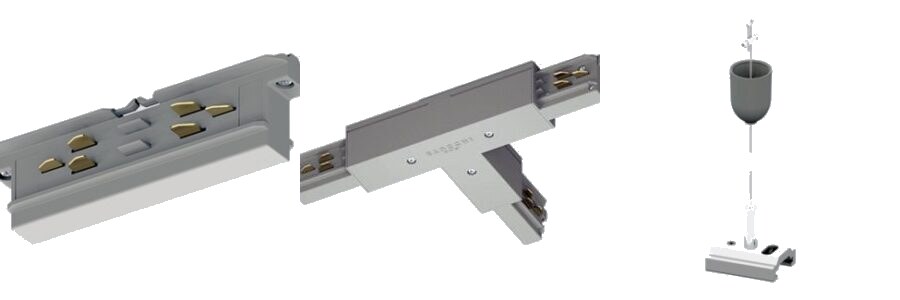

Three grey A.A.G. Stucchi track accessories: a straight joint with brass contacts, a T-connector and a ceiling suspension kit with steel cable
Eurostandard Plus accessories: straight joint, T-connector and suspension kit.

The same idea in ONETRACK

Stucchi's mains track today is the ONETRACK range, such as the 9000-2/B-H track, and it follows the same pattern: an aluminium extrusion, a PVC insulating body and copper conductors, rated 16 A / 440 V on the power circuits and 1 A / 50 V FELV on the data conductors, with up to 3.6 kVA per phase and 10.8 kVA across all three. Our product pages list ONETRACK tracks in 1000, 2000, 3000 and 4000 mm in black and white, with surface, suspended, recessed and trimless mounting, plus curved versions made to a radius.

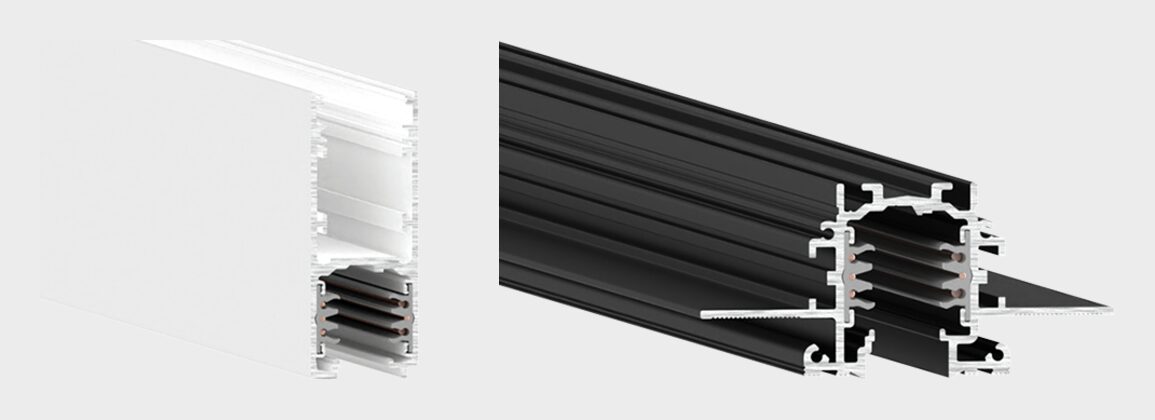

Two A.A.G. Stucchi ONETRACK profiles: a white surface and suspended track with a tall housing, and a black trimless track with plaster wings
ONETRACK in white surface and suspended (9000 H) and black trimless (9000 TR) versions.

Getting track for your project

For a quote we need the run lengths, the mounting and how many circuits you want to control separately. The full range is on the ONETRACK page, and the rest of what we carry is under track systems. Send us the layout and we will list the track, joints and feeds.
