In March 2019 A.A.G. Stucchi announced two new low voltage track versions, ST9 and ST10, for its MULTISYSTEM range. ST9 is a double track that takes spotlights on its upper and lower faces; ST10 extends the trimless range and can be retrofitted into drywall that is already in place.

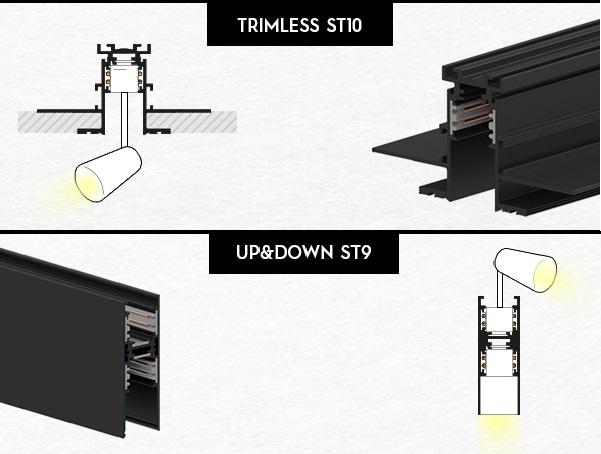

A.A.G. Stucchi launch illustration showing the ST10 trimless track set into a plasterboard ceiling with a spotlight below, and the ST9 UP&DOWN double track with one spotlight on top and one underneath
The launch illustration: ST10 trimless in a ceiling (top) and ST9 UP&DOWN (bottom).

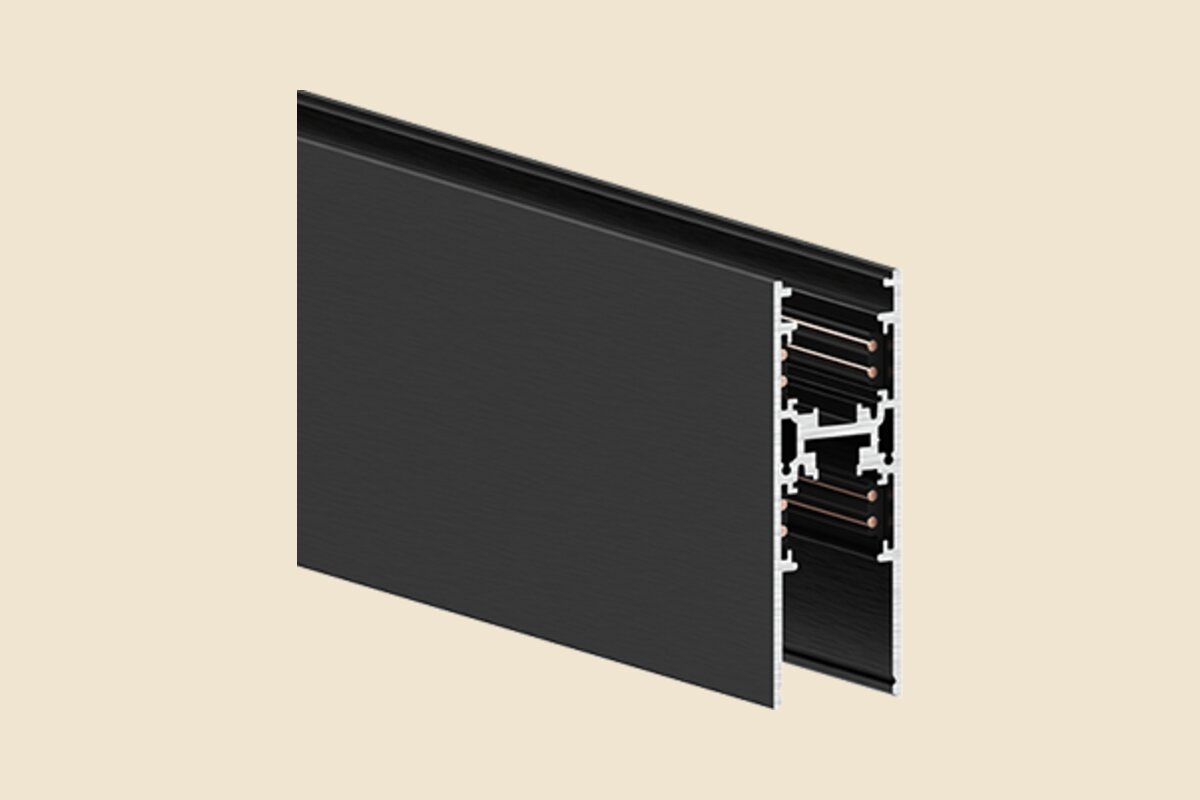

ST9 UP&DOWN: light above and below

ST9 is two tracks in one profile, back to back. Adaptors and spotlights fit in the upper channel as well as the lower one, so a single suspended run can light the ceiling and the floor at the same time, or aim spots both ways. For a designer, that means one line in the ceiling instead of a pendant plus a separate uplight, and the freedom to change what goes up and what goes down later.

ST10: trimless track for existing ceilings

ST10 joined the TRIMLESS family, the tracks that sit flush in plasterboard with no visible frame. The point of ST10 was retrofit: it can go into a drywall ceiling that already exists, so a refurbishment can get a recessed track without rebuilding the ceiling around it.

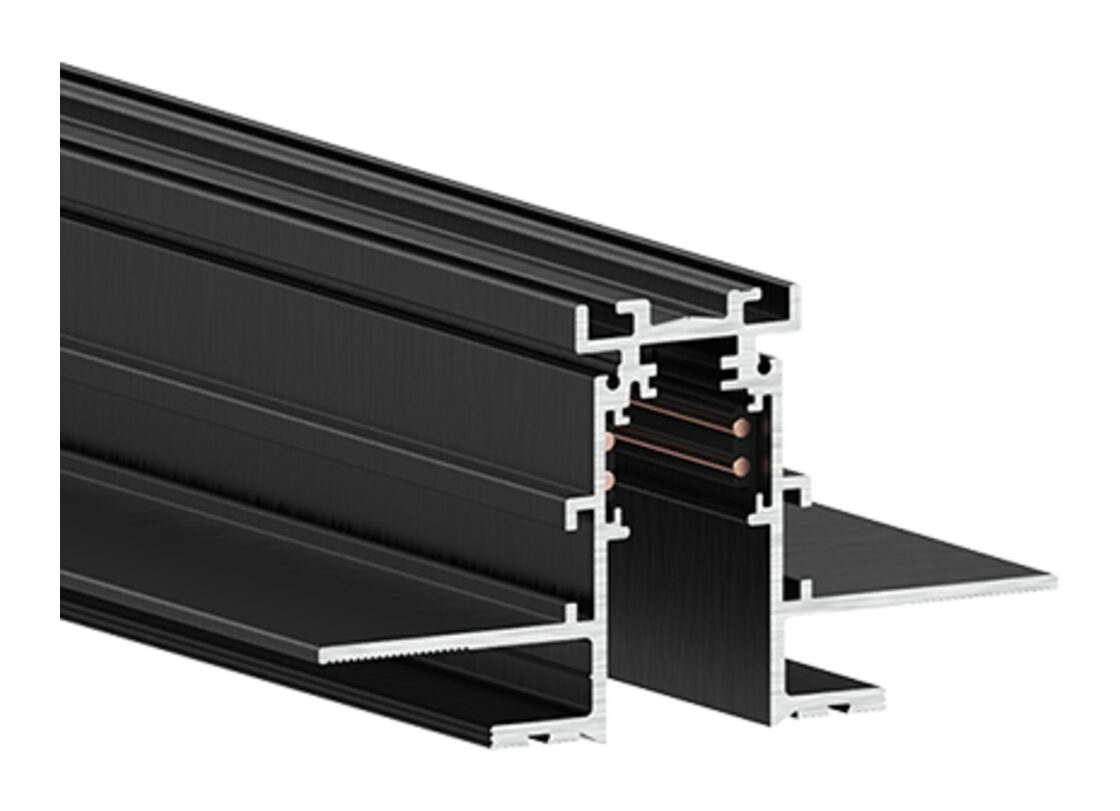

Render of a black A.A.G. Stucchi ST10 trimless track section with its plaster wings and copper conductors visible at the cut end
ST10 trimless track, black anodised.

Where the two tracks sit now

Both tracks were part of the low voltage MULTISYSTEM family and Stucchi expected them to be available early in 2019. Today they are listed in Stucchi's EVO range, which carries the MULTISYSTEM name forward, and both appear on our product pages:

9500 ST9-E9500 ST10
MountingSuspendedTrimless
Lengths1000, 2000, 3000 mm1000, 2000, 3000 mm
FinishBlack or whiteBlack anodised
Rating15 A / 60 V dc15 A / 60 V dc
Max load25 kg/m25 kg/m
Weight (1000 mm)1506 g1881 g

Both have an aluminium outer extrusion, a PVC insulating body and copper conductors. Stucchi's 48 V Senzafine EVO linear modules are made for the same 9500 track family.

Specifying ST9 or ST10

For ST10 we need the ceiling build-up; for ST9, the suspension height and what should light up and down. The full set of EVO tracks and fittings is on the EVO range page. Send us the layout and we will put the run together.
