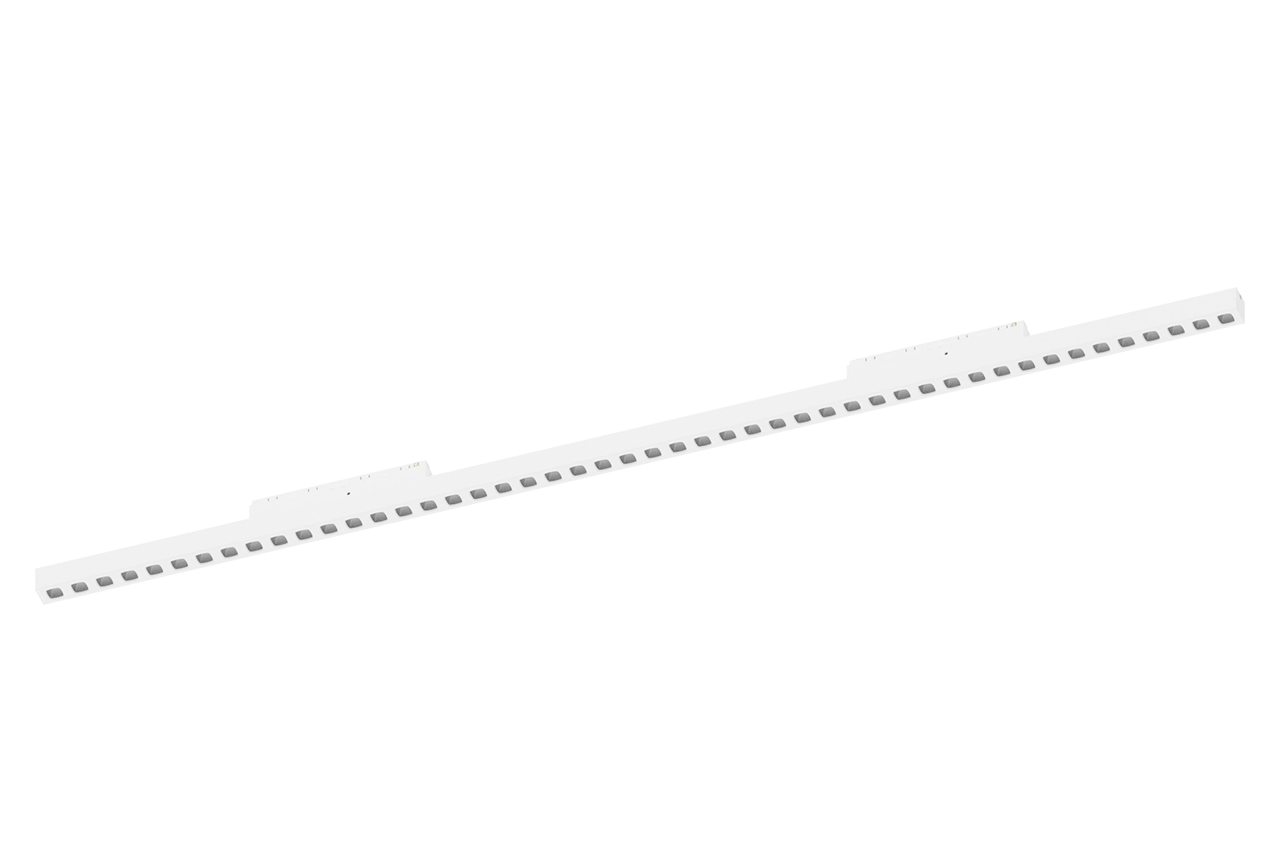

SENZAFINE UGR
SENZAFINE CORE11 M22-C
SENZAFINE UGR
48V linear light module. For 9600C CORE11 tracks. Aluminium body. Polycarbonate UGR reflector. Polyamide cover. K.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE UGR
technical specifications
SENZAFINE UGR
48V linear light module. For 9600C CORE11 tracks. Aluminium body. Polycarbonate UGR reflector. Polyamide cover. K. CRI≥90: LED.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM221128/W23-U-9-C
Length1125 mm
CRI95
ColourWhite
Control systemNO DRIVER
Luminous flux1652 lm
Power21.2 W
Efficiency77.9 lm/W
UGR<19
Lifetime>50Khr L90B10
FamilySenzafine
Product lineSENZAFINE CORE11 M22-C
CCT3000 K
OpticsUGR REFLECTOR (U)
MacAdam≤ 3
Variants60
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE UGR
dimensions
Dimension drawing
