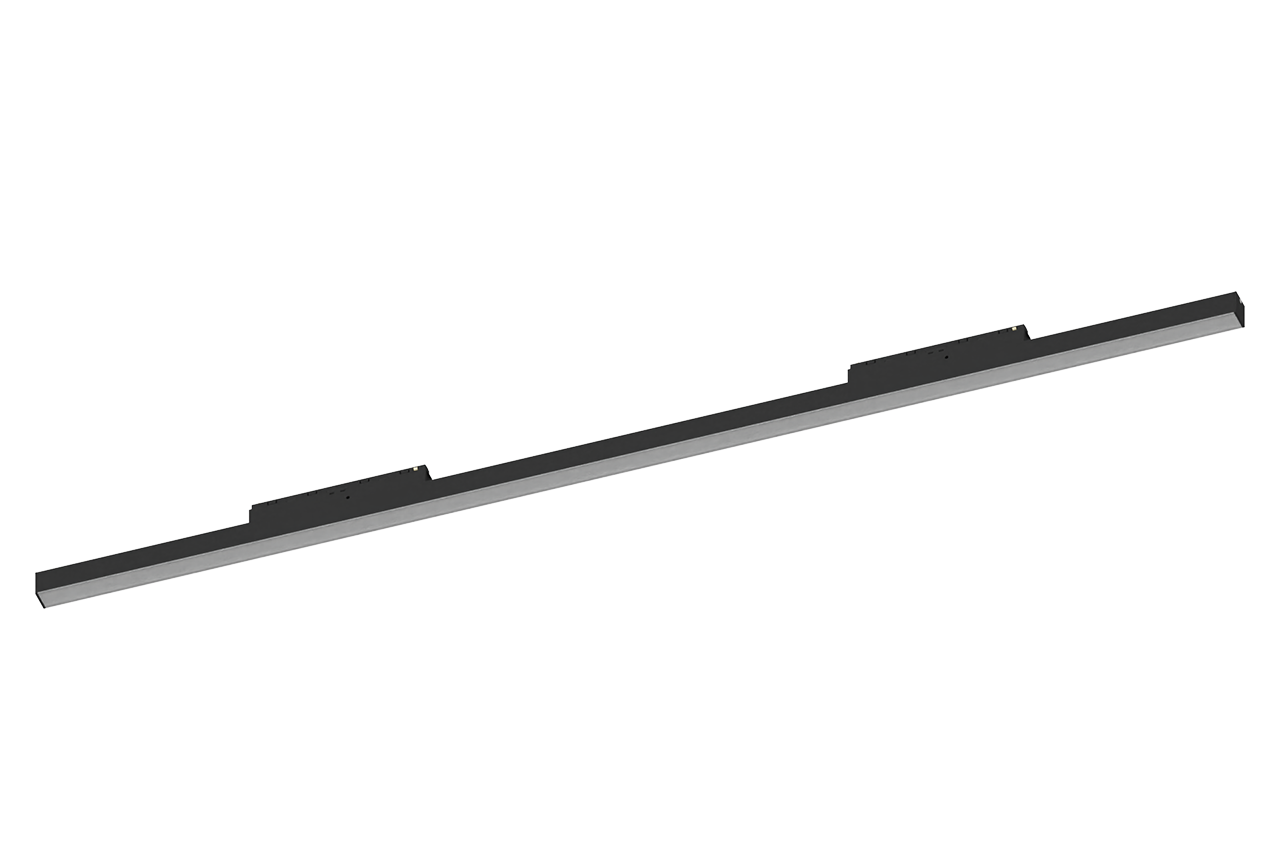

SENZAFINE OPAL
SENZAFINE CORE11 M22-C
SENZAFINE OPAL
48V linear light module. For 9600C CORE11 tracks. Aluminium body. Opal polycarbonate screen. K. CRI≥90: LED.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE OPAL
technical specifications
SENZAFINE OPAL
48V linear light module. For 9600C CORE11 tracks. Aluminium body. Opal polycarbonate screen. K. CRI≥90: LED.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM221128/B5-O-2-C
Length1125 mm
ColourBlack
Control systemDALI
Luminous flux1979 lm
Power22.9 W
Efficiency86.4 lm/W
FamilySenzafine
Product lineSENZAFINE CORE11 M22-C
CCT3000 K
OpticsOPAL (O)
CRI90
UGR>28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants30
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE OPAL
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
