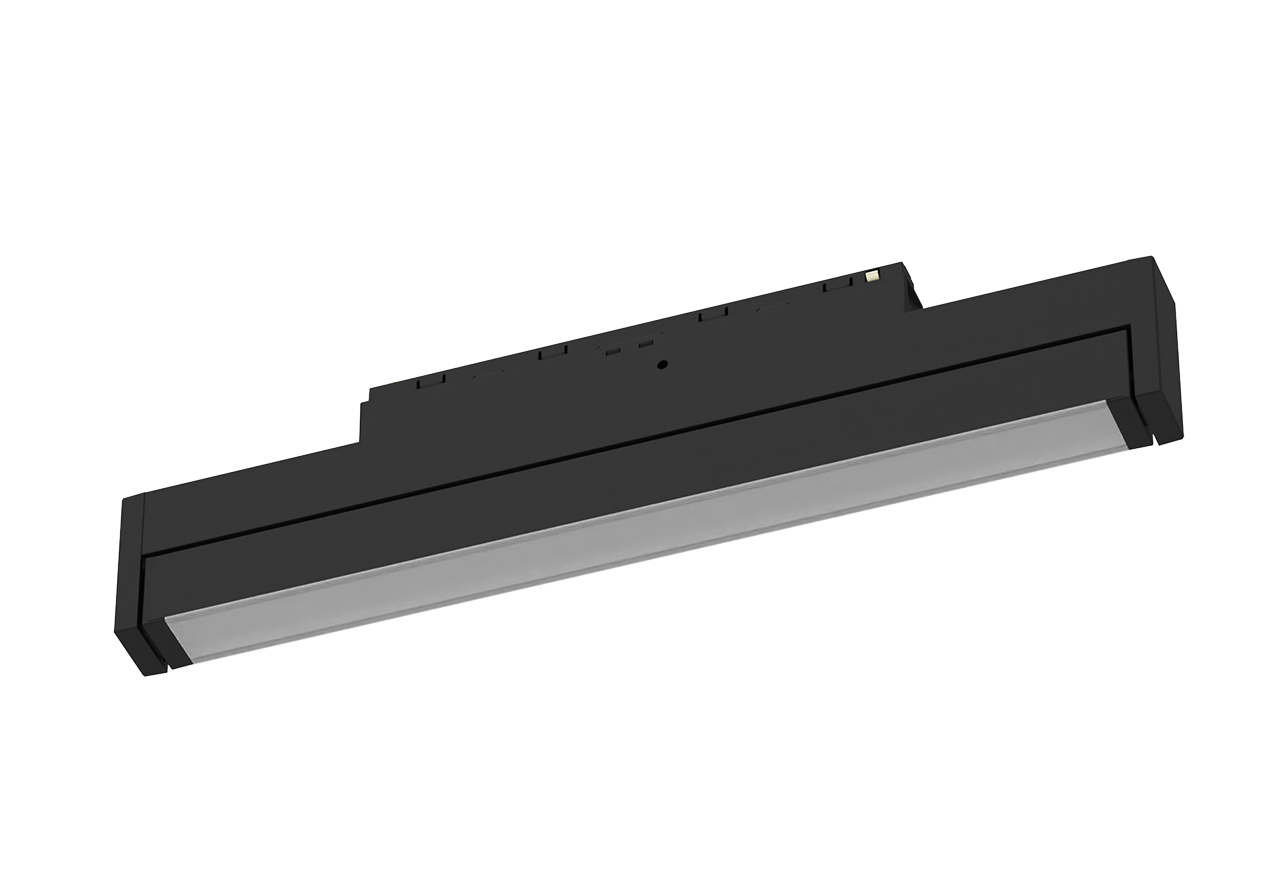

SENZAFINE OPAL ADJUSTABLE
SENZAFINE ADJUSTABLE M22A-C
SENZAFINE OPAL ADJUSTABLE
48V linear light module ADJUSTABLE. Mechanical fixing. For 9600C CORE11 tracks. Opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE OPAL ADJUSTABLE
technical specifications
SENZAFINE OPAL ADJUSTABLE
48V linear light module ADJUSTABLE. Mechanical fixing. For 9600C CORE11 tracks. Opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22A310/B5-O-0-C
Length312 mm
ColourBlack
Control systemON-OFF
Luminous flux495 lm
Power6.1 W
Efficiency81.1 lm/W
FamilySenzafine Adjustable
Product lineSENZAFINE ADJUSTABLE M22A-C
CCT3000 K
OpticsOPAL (O)
CRI90
UGR>28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants18
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE OPAL ADJUSTABLE
dimensions

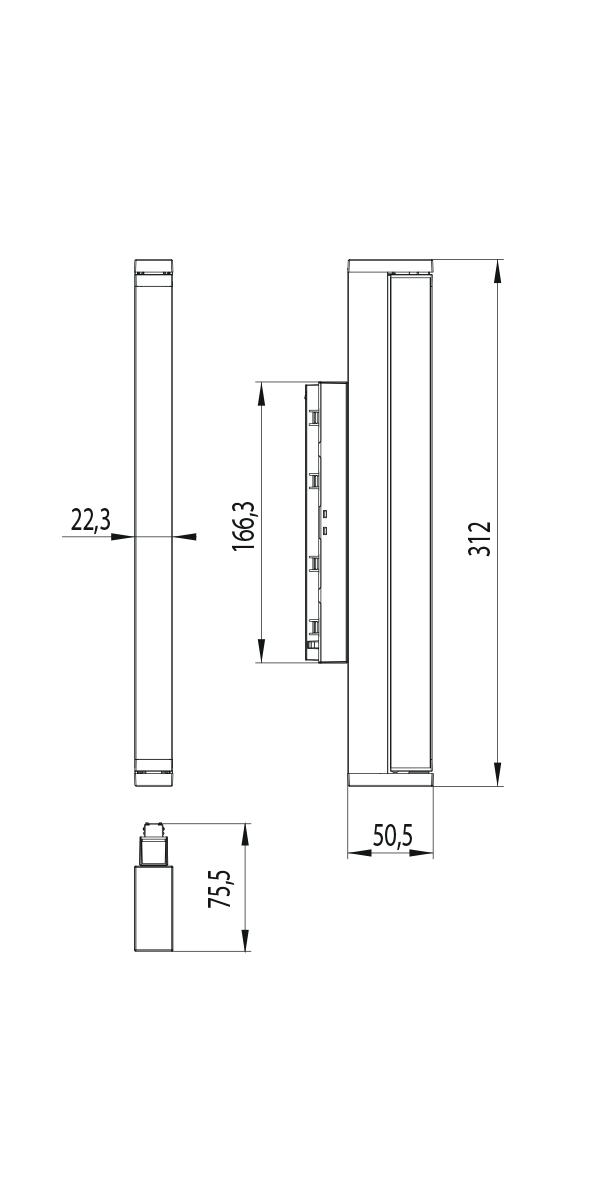

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
