SENZAFINE MICRO UGR
SENZAFINE MICRO M22-M
SENZAFINE MICRO UGR

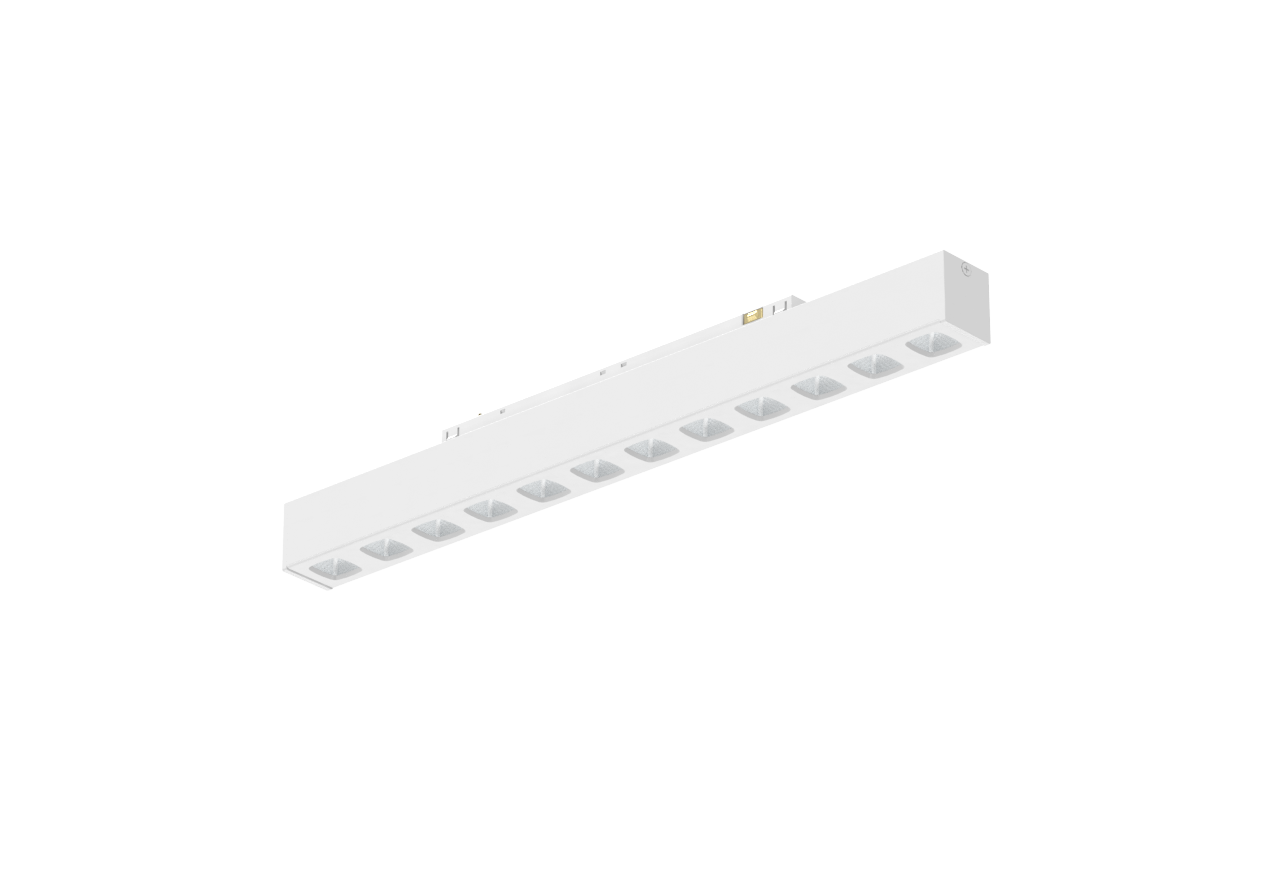

48V linear light module. For 9600 micro tracks. Aluminum body. Polycarbonate UGR reflector. Polyamide cover.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE MICRO UGR
technical specifications
SENZAFINE MICRO UGR
48V linear light module. For 9600 micro tracks. Aluminum body. Polycarbonate UGR reflector. Polyamide cover. L(mm): 284,5.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22286/W23-U-9-M
ColourWhite
Control systemNO DRIVER
FamilySenzafine
Product lineSENZAFINE MICRO M22-M
CCT3000 K
OpticsUGR REFLECTOR (U)
Length285 mm
CRI95
Luminous flux413 lm
Power5.4 W
Efficiency76.5 lm/W
UGR<19
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants4
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE MICRO UGR
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
