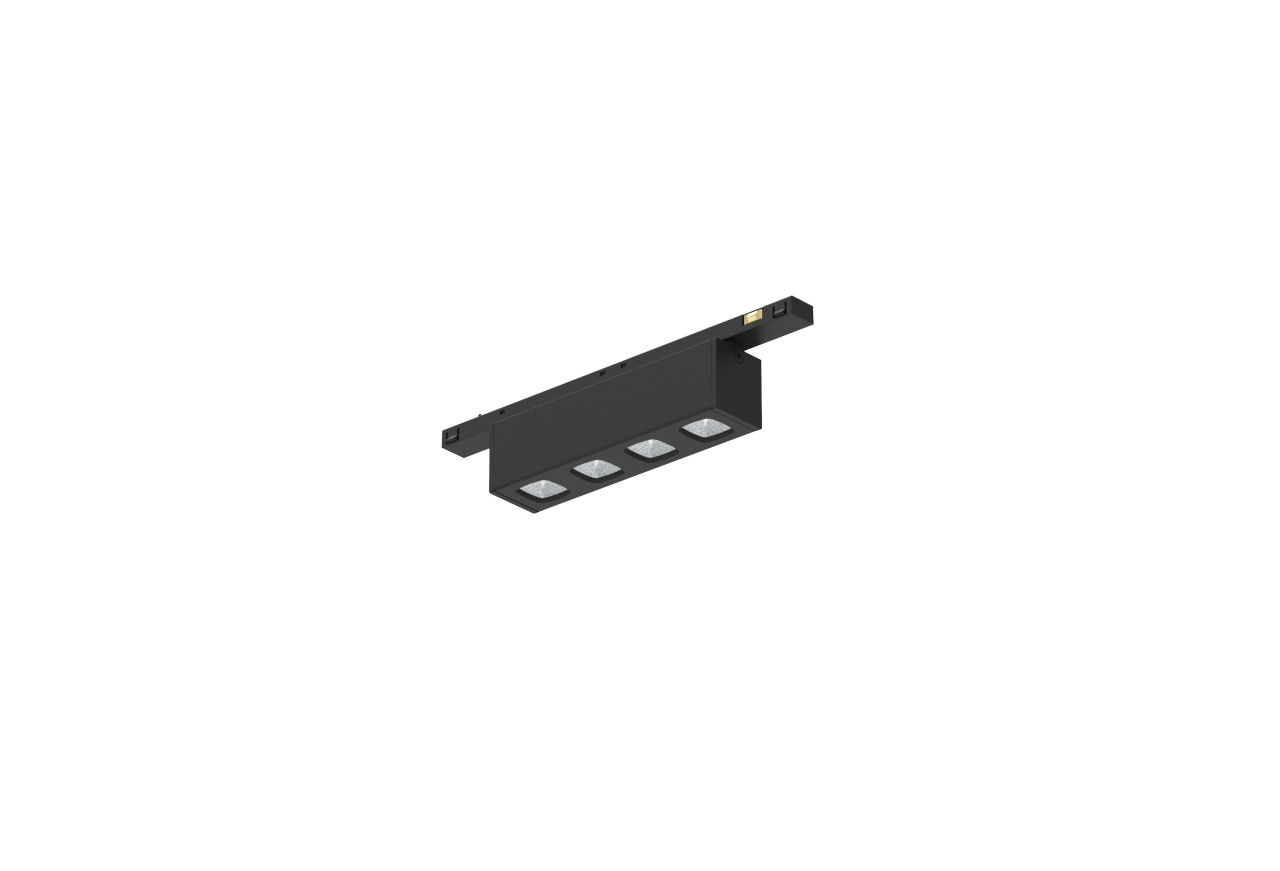

SENZAFINE MICRO UGR HIGH OUTPUT
SENZAFINE MICRO M22-M
SENZAFINE MICRO UGR HIGH OUTPUT
48V linear light module. High output version. For 9600 micro tracks. Aluminum body. Polycarbonate UGR reflector.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE MICRO UGR HIGH OUTPUT
technical specifications
SENZAFINE MICRO UGR HIGH OUTPUT
48V linear light module. High output version. For 9600 micro tracks. Aluminum body. Polycarbonate UGR reflector. Polyamide cover.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM2298/B1-U-2-M
Length98 mm
ColourBlack
Control systemDALI
Luminous flux625 lm
Power8.8 W
Efficiency71.0 lm/W
UGR<25
FamilySenzafine
Product lineSENZAFINE MICRO M22-M
CCT3000 K
OpticsUGR REFLECTOR (U)
CRI90
MacAdam≤ 3
Lifetime>60Khr L90B10
Variants8
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE MICRO UGR HIGH OUTPUT
dimensions

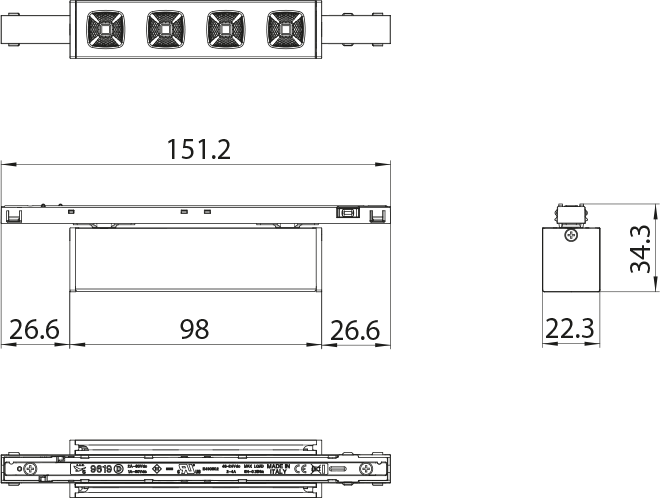

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
