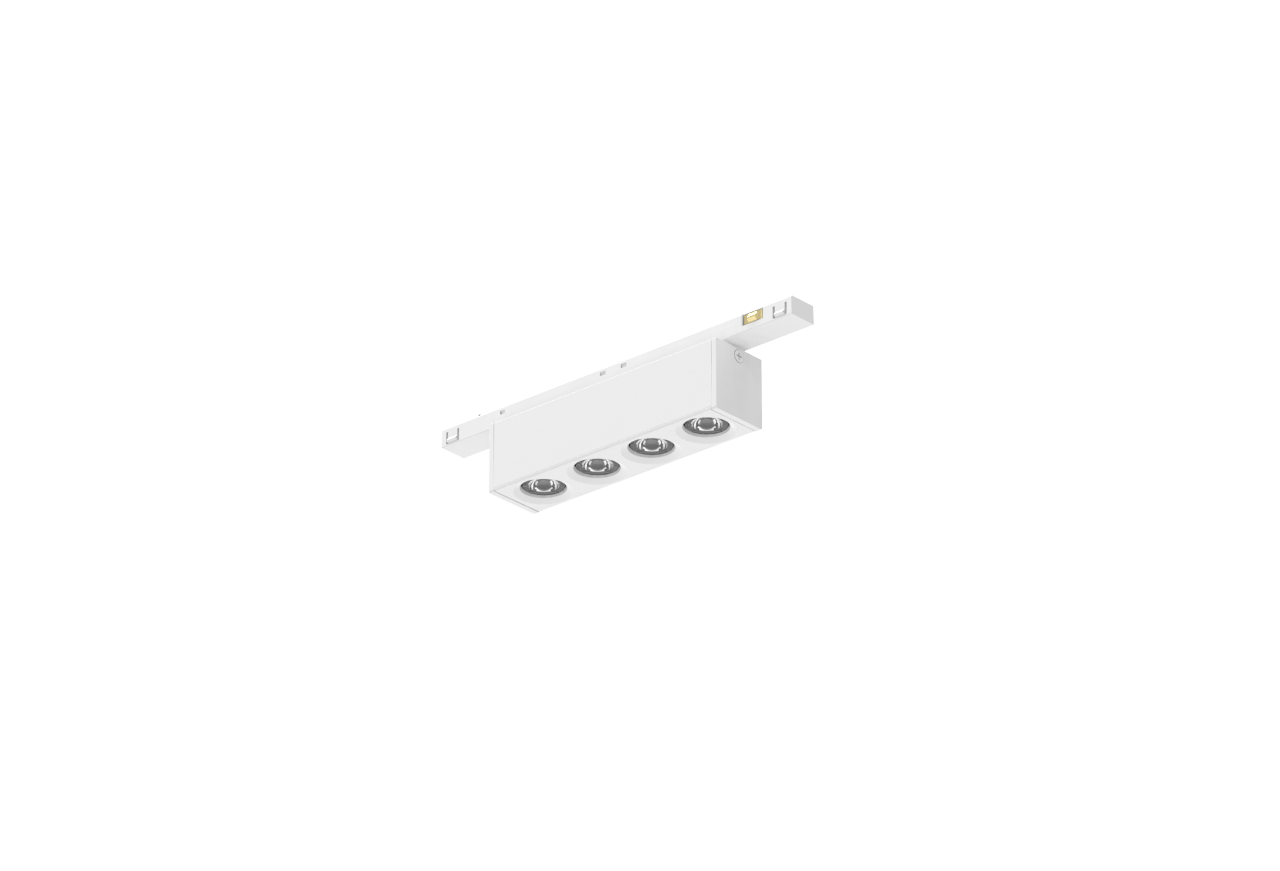

SENZAFINE MICRO LENTI HIGH OUTPUT
SENZAFINE MICRO M22-M
SENZAFINE MICRO LENTI HIGH OUTPUT
48V linear light module. High output version. For 9600 micro tracks. Aluminum body. Polyamide cover. L(mm): 98.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE MICRO LENTI HIGH OUTPUT
technical specifications
SENZAFINE MICRO LENTI HIGH OUTPUT
48V linear light module. High output version. For 9600 micro tracks. Aluminum body. Polyamide cover. L(mm): 98.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM2298/W21-B-9-M
OpticsMEDIUM BEAM LENSES (B)
ColourWhite
Control systemNO DRIVER
Luminous flux528 lm
Efficiency60.0 lm/W
UGR<22
DetailsPolycarbonate Lens 30°
FamilySenzafine
Product lineSENZAFINE MICRO M22-M
CCT3000 K
Length98 mm
CRI90
Power8.8 W
MacAdam≤ 3
Lifetime>60Khr L90B10
Variants12
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE MICRO LENTI HIGH OUTPUT
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
