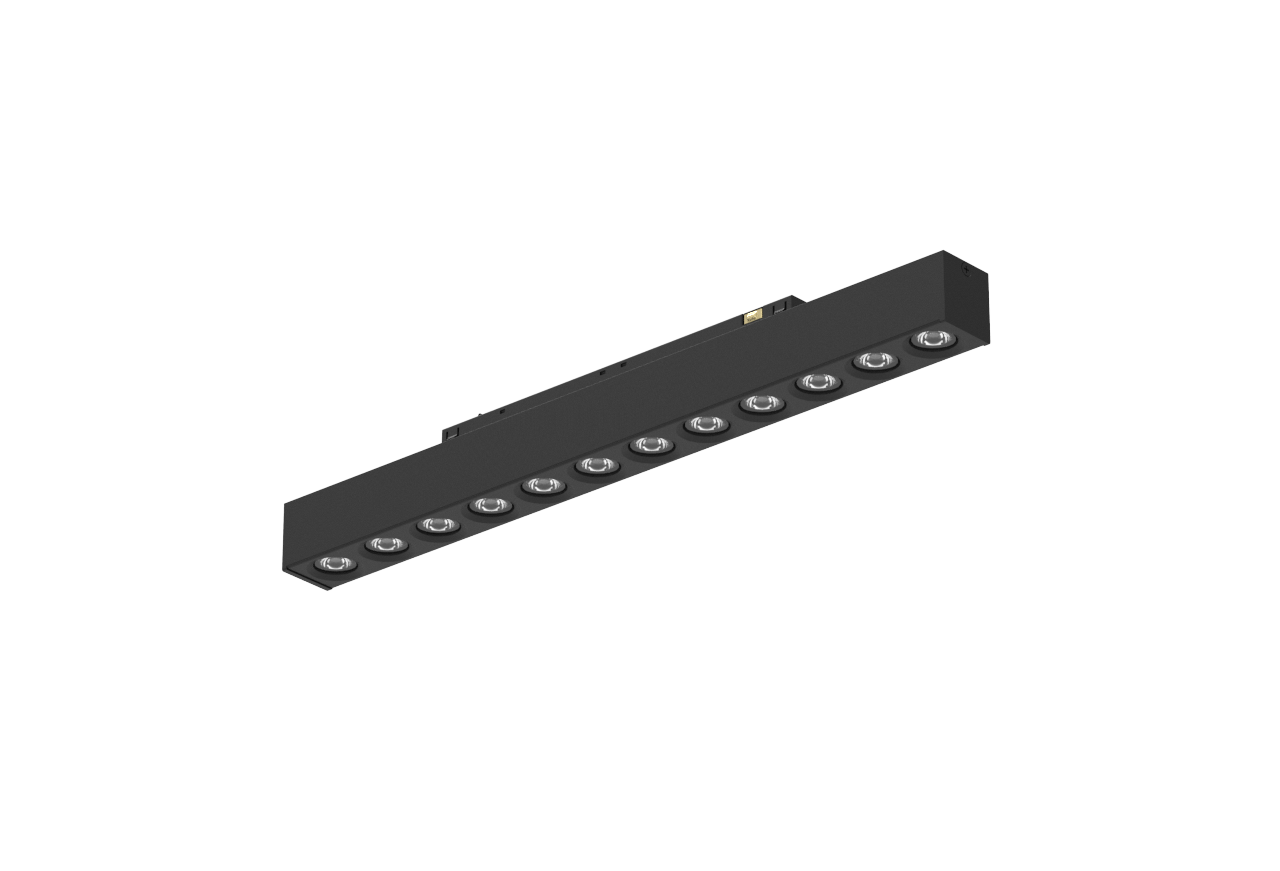

SENZAFINE MICRO LENS
SENZAFINE MICRO M22-M
SENZAFINE MICRO LENS
48V linear light module. For 9600 micro tracks. Aluminum body. Polyamide cover. L(mm): 284,5.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE MICRO LENS
technical specifications
SENZAFINE MICRO LENS
48V linear light module. For 9600 micro tracks. Aluminum body. Polyamide cover. L(mm): 284,5.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22286/B3-B-9-M
OpticsMEDIUM BEAM LENSES (B)
ColourBlack
Control systemNO DRIVER
Luminous flux414 lm
Efficiency76.6 lm/W
UGR<16
DetailsPolycarbonate Lens 30°
FamilySenzafine
Product lineSENZAFINE MICRO M22-M
CCT3000 K
Length285 mm
CRI95
Power5.4 W
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants12
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE MICRO LENS
dimensions

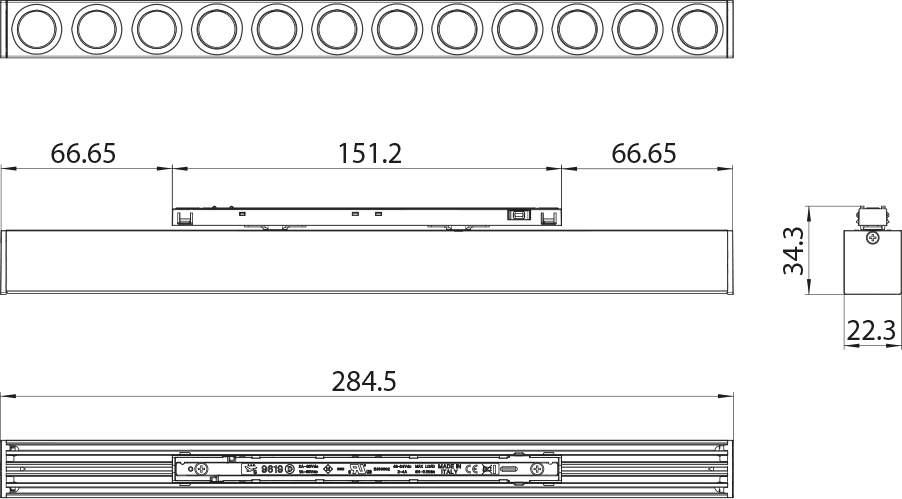

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
