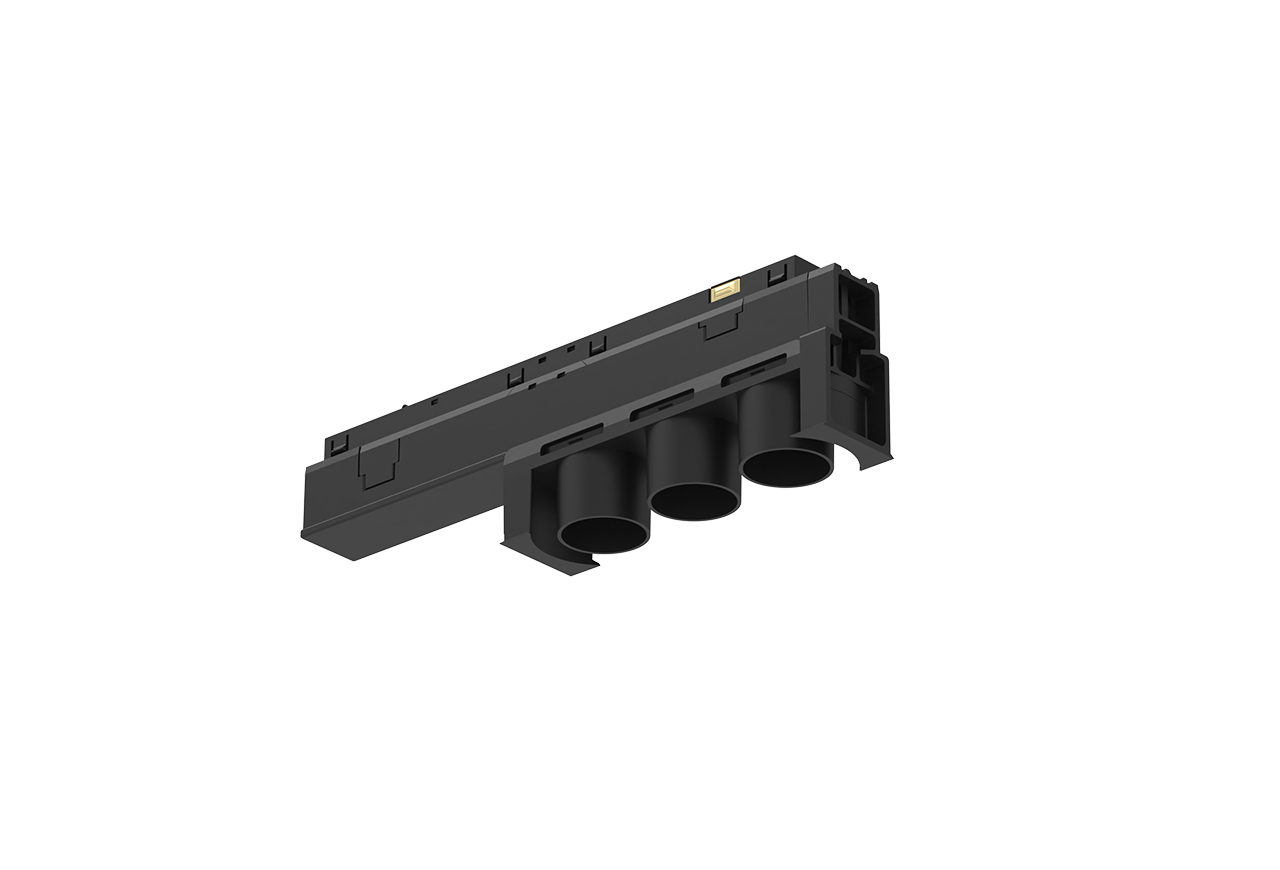

SENZAFINE M22D DEEP LENS ●
SENZAFINE M22D DEEP
SENZAFINE M22D DEEP LENS ●
48V linear light module. For 9600C CORE11 tracks. Polycarbonate body. L(mm): 164,9.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE M22D DEEP LENS ●
technical specifications
SENZAFINE M22D DEEP LENS ●
48V linear light module. For 9600C CORE11 tracks. Polycarbonate body. L(mm): 164,9.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22DR3/B5-C-2-C
CCT3000 K
OpticsMEDIUM BEAM LENSES (B)
ColourBlack
Luminous flux349 lm
Power7.1 W
Efficiency49.1 lm/W
UGR<13
DetailsThree round antiglare, polycarbonate medium beam lens
FamilySenzafine Deep
Product lineSENZAFINE M22D DEEP
Length165 mm
CRI90
Control systemDALI
MacAdam≤ 3
Lifetime>60Khr L90B10
Variants24
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE M22D DEEP LENS ●
dimensions

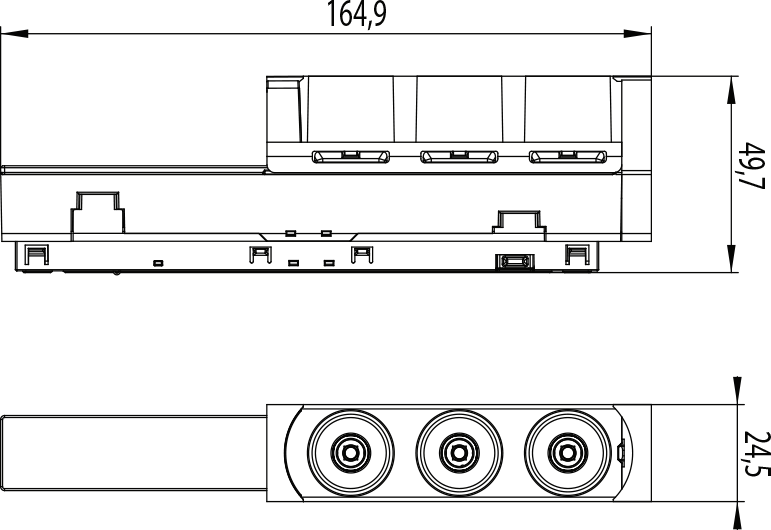

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
