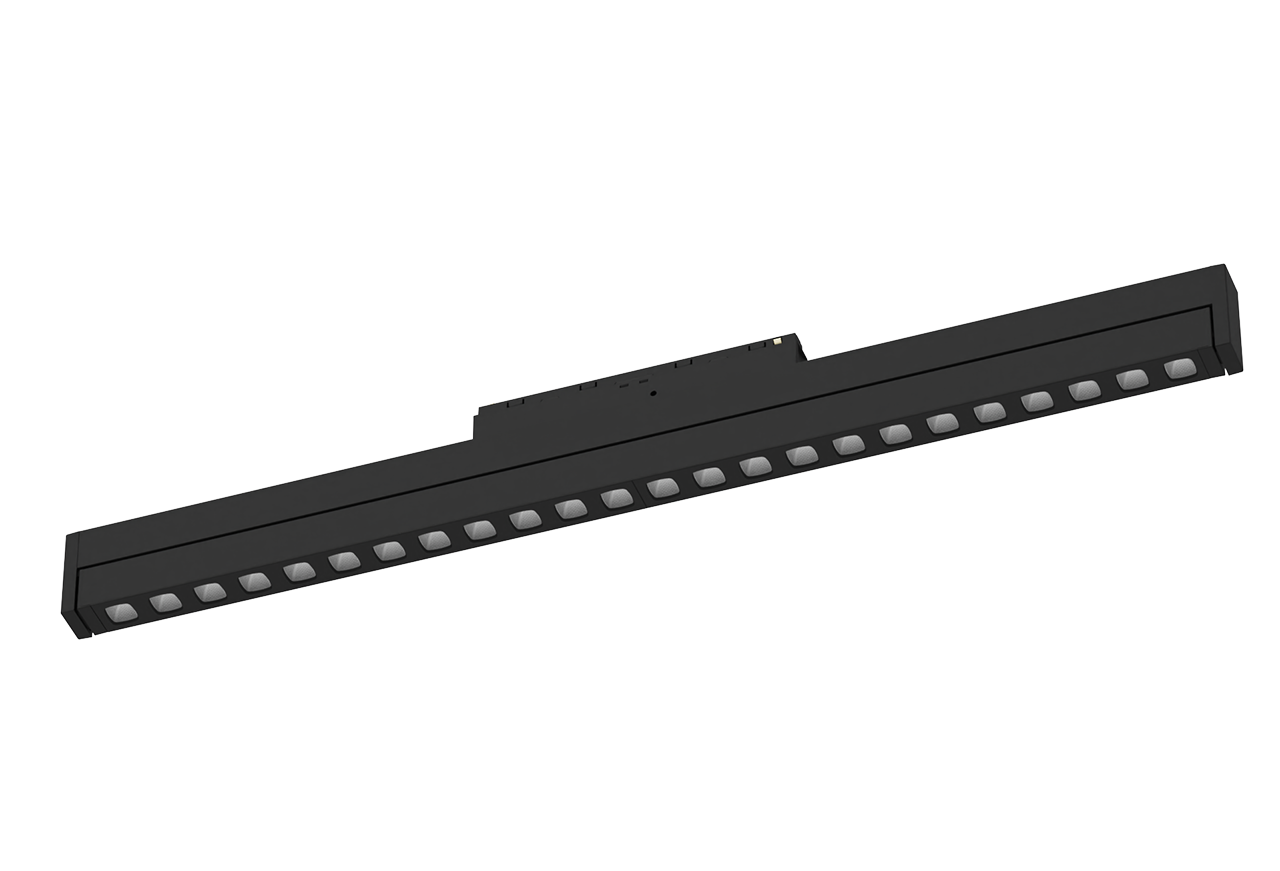

SENZAFINE LOW GLARE ADJUSTABLE
SENZAFINE ADJUSTABLE M22A-C
SENZAFINE LOW GLARE ADJUSTABLE
48V linear light module ADJUSTABLE. Mechanical fixing. For 9600C CORE11 tracks. Low glare screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE LOW GLARE ADJUSTABLE
technical specifications
SENZAFINE LOW GLARE ADJUSTABLE
48V linear light module ADJUSTABLE. Mechanical fixing. For 9600C CORE11 tracks. Low glare screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22A590/B3-U-0-C
Length592 mm
CRI95
ColourBlack
Control systemON-OFF
Luminous flux826 lm
Power10.6 W
Efficiency77.9 lm/W
UGR<19
Lifetime>50Khr L90B10
FamilySenzafine Adjustable
Product lineSENZAFINE ADJUSTABLE M22A-C
CCT3000 K
OpticsUGR REFLECTOR (U)
MacAdam≤ 3
Variants48
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE LOW GLARE ADJUSTABLE
dimensions

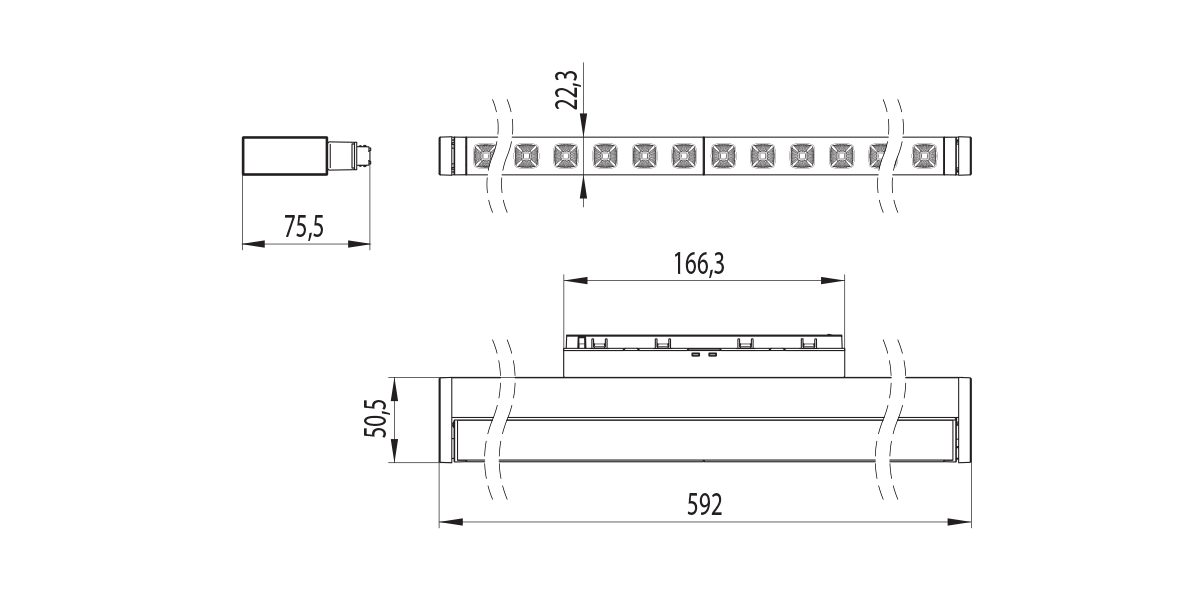

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
