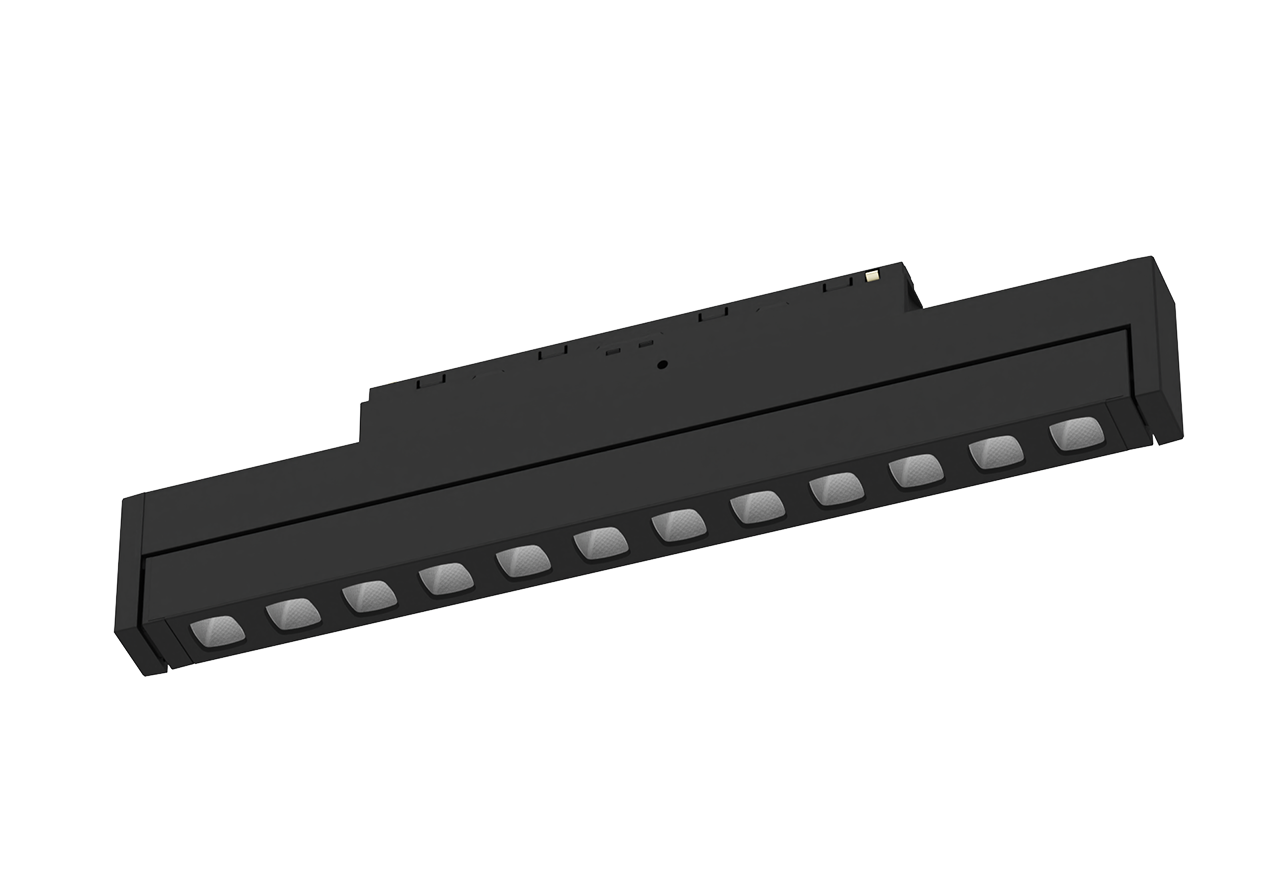

SENZAFINE LOW GLARE ADJUSTABLE
SENZAFINE ADJUSTABLE M22A-C
SENZAFINE LOW GLARE ADJUSTABLE
48V linear light module ADJUSTABLE. Mechanical fixing. For 9600C CORE11 tracks. Low glare screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE LOW GLARE ADJUSTABLE
technical specifications
SENZAFINE LOW GLARE ADJUSTABLE
48V linear light module ADJUSTABLE. Mechanical fixing. For 9600C CORE11 tracks. Low glare screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22A310/B1-U-9-C
Length312 mm
CRI90
ColourBlack
Control systemNO DRIVER
Luminous flux1011 lm
Power10.3 W
Efficiency98.1 lm/W
UGR<22
Lifetime>60Khr L90B10
FamilySenzafine Adjustable
Product lineSENZAFINE ADJUSTABLE M22A-C
CCT3000 K
OpticsUGR REFLECTOR (U)
MacAdam≤ 3
Variants48
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE LOW GLARE ADJUSTABLE
dimensions

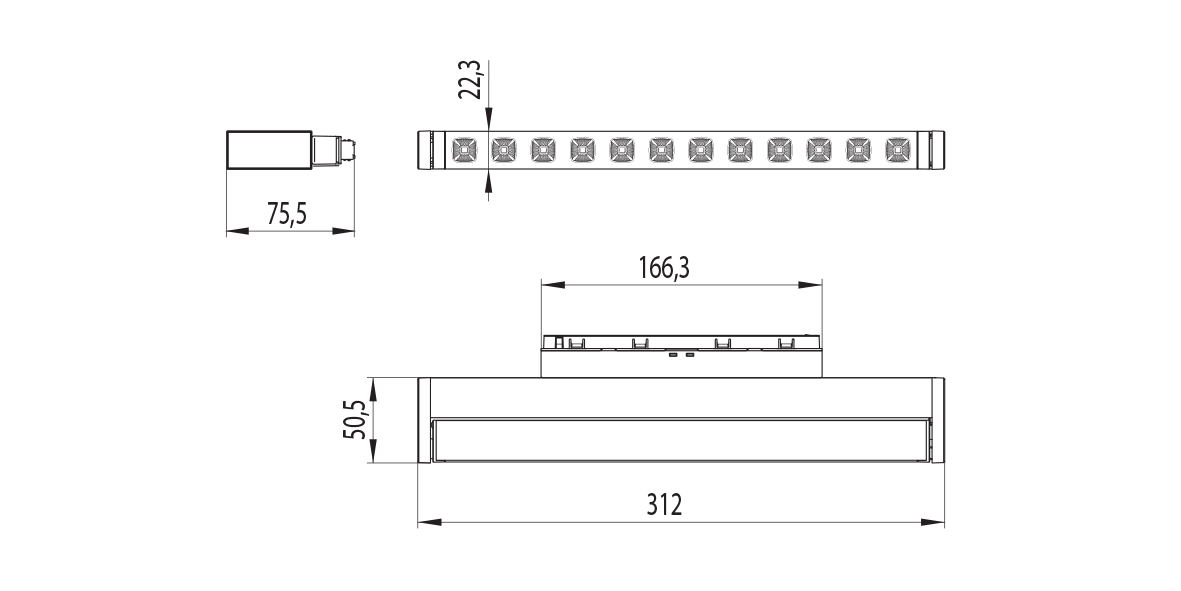

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
