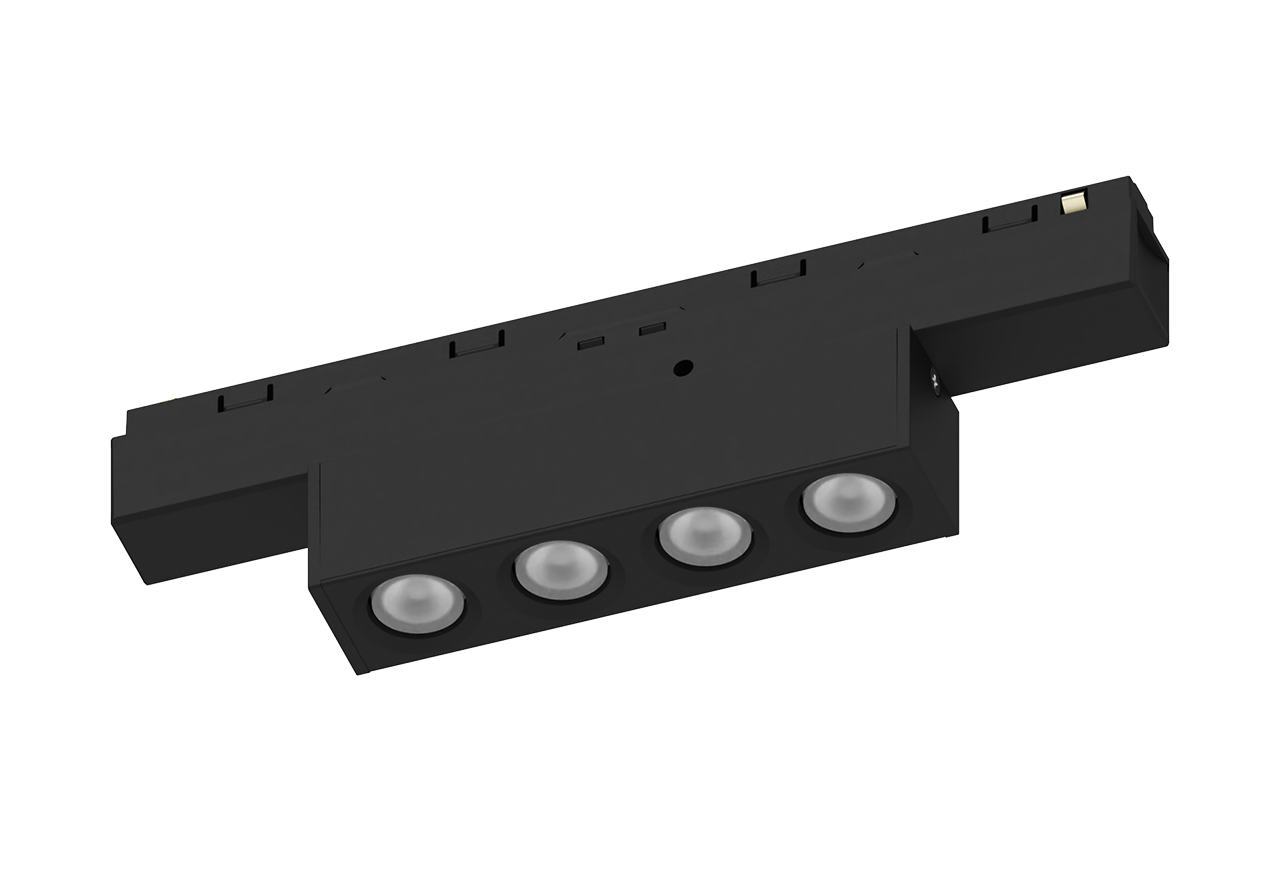

SENZAFINE LENS
SENZAFINE CORE11 M22-C
SENZAFINE LENS
48V linear light module. For 9600C CORE11 tracks. Aluminium body. Polyamide cover. K. CRI≥90: LED.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE LENS
technical specifications
SENZAFINE LENS
48V linear light module. For 9600C CORE11 tracks. Aluminium body. Polyamide cover. K. CRI≥90: LED.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM2298/B1-A-9-C
OpticsNARROW BEAM LENSES (A)
Length98 mm
CRI90
ColourBlack
Control systemNO DRIVER
Luminous flux549 lm
Power8.3 W
Efficiency66.2 lm/W
UGR<19
Lifetime>60Khr L90B10
DetailsHigh output version, 20° polycarbonate lenses
FamilySenzafine
Product lineSENZAFINE CORE11 M22-C
CCT3000 K
MacAdam≤ 3
Variants162
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE LENS
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
