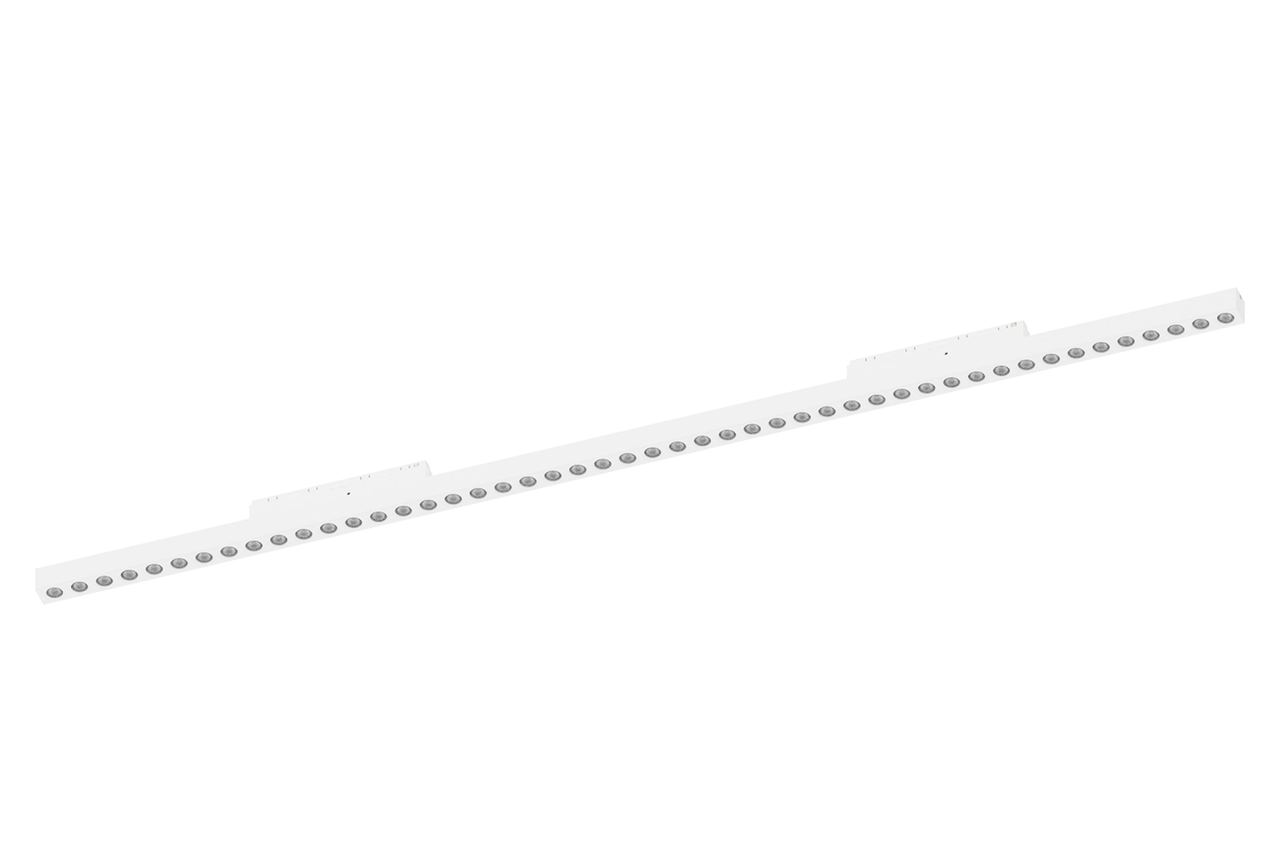

SENZAFINE LENS
SENZAFINE CORE11 M22-C
SENZAFINE LENS
48V linear light module. For 9600C CORE11 tracks. Aluminium body. Polyamide cover. K. CRI≥90: LED.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE LENS
technical specifications
SENZAFINE LENS
48V linear light module. For 9600C CORE11 tracks. Aluminium body. Polyamide cover. K. CRI≥90: LED.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM221128/W23-B-9-C
OpticsMEDIUM BEAM LENSES (B)
Length1125 mm
CRI95
ColourWhite
Control systemNO DRIVER
Luminous flux1655 lm
Power21.2 W
Efficiency78.1 lm/W
UGR<16
Lifetime>50Khr L90B10
Details30° polycarbonate lenses
FamilySenzafine
Product lineSENZAFINE CORE11 M22-C
CCT3000 K
MacAdam≤ 3
Variants162
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE LENS
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
