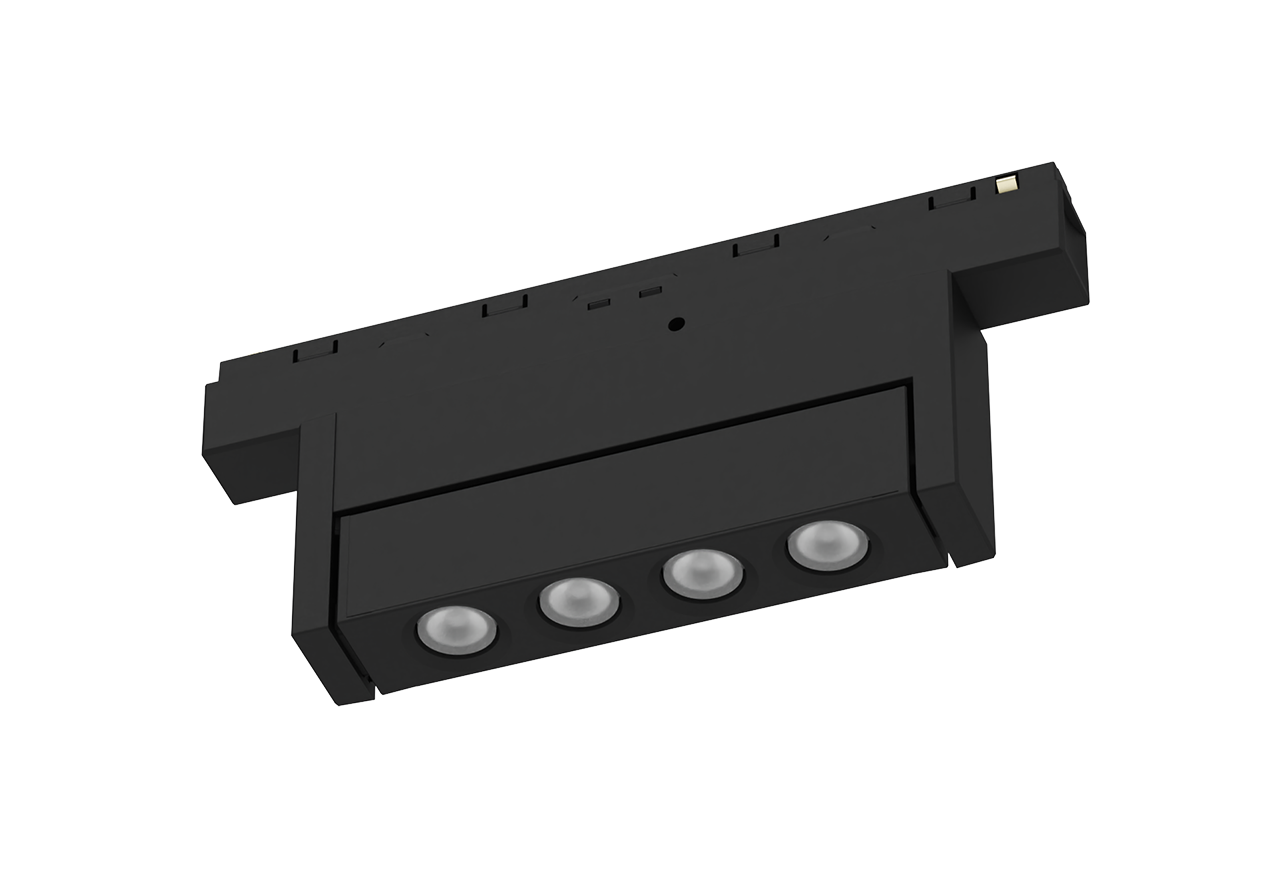

SENZAFINE LENS ADJUSTABLE
SENZAFINE ADJUSTABLE M22A-C
SENZAFINE LENS ADJUSTABLE
48V linear light module ADJUSTABLE. Mechanical fixing. For 9600C CORE11 tracks. Polyamide cover.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE LENS ADJUSTABLE
technical specifications
SENZAFINE LENS ADJUSTABLE
48V linear light module ADJUSTABLE. Mechanical fixing. For 9600C CORE11 tracks. Polyamide cover.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22A123/B1-A-0-C
OpticsNARROW BEAM LENSES (A)
Length123 mm
CRI90
ColourBlack
Control systemON-OFF
Luminous flux549 lm
Power8.3 W
Efficiency66.2 lm/W
UGR<19
Lifetime>60Khr L90B10
DetailsHigh output version, Polycarbonate Lens 20°
FamilySenzafine Adjustable
Product lineSENZAFINE ADJUSTABLE M22A-C
CCT3000 K
MacAdam≤ 3
Variants126
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE LENS ADJUSTABLE
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
