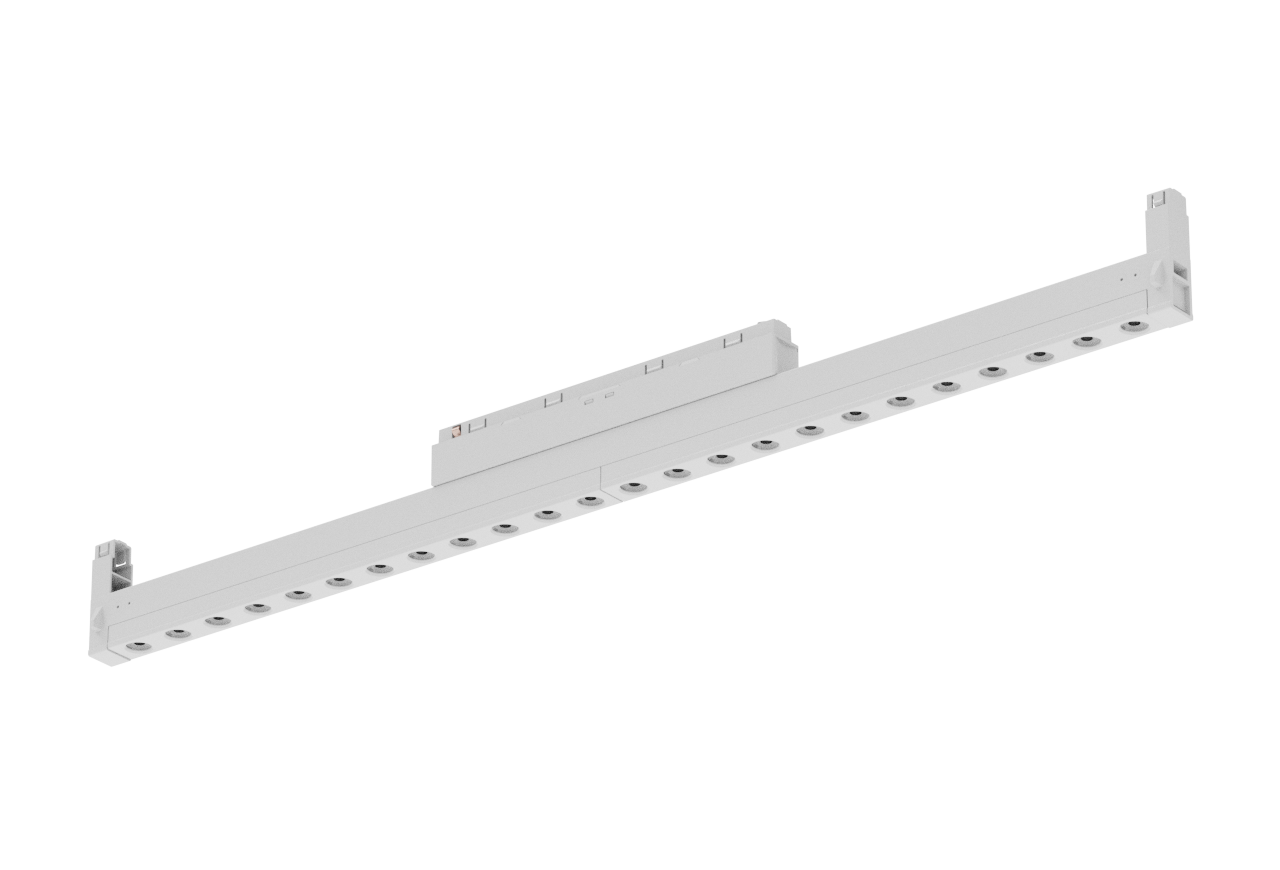

SENZAFINE HE LENS
SENZAFINE HE M14
SENZAFINE HE LENS
48V linear light module. For 9600C CORE11 tracks. Aluminum body. Polycarbonate cover.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE HE LENS
technical specifications
SENZAFINE HE LENS
48V linear light module. For 9600C CORE11 tracks. Aluminum body. Polycarbonate cover.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM14500/W5-E-2-C
CCT3000 K
OpticsWIDE BEAM LENSES (C)
Length521 mm
CRI90
ColourWhite
Control systemDALI 2
Luminous flux1107 lm
Power11.5 W
Efficiency96.3 lm/W
UGR<19
DetailsPMMA Lens 57°
FamilySenzafine HE
Product lineSENZAFINE HE M14
MacAdam≤ 3
Lifetime>60Khr L90B5
Variants144
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE HE LENS
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
