SENZAFINE FLAT MICRO OPAL
SENZAFINE FLAT MICRO M11
SENZAFINE FLAT MICRO OPAL
48V linear light module. For 9600 micro tracks. Polycarbonate opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE FLAT MICRO OPAL
technical specifications
SENZAFINE FLAT MICRO OPAL
48V linear light module. For 9600 micro tracks. Polycarbonate opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM111174/B5-O-2
Length1174 mm
Luminous flux858 lm
Power14.5 W
Efficiency59.2 lm/W
FamilySenzafine Flat
Product lineSENZAFINE FLAT MICRO M11
CCT3000 K
OpticsOPAL (O)
CRI90
ColourBlack
Control systemDALI
UGR>28
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants3
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE FLAT MICRO OPAL
dimensions

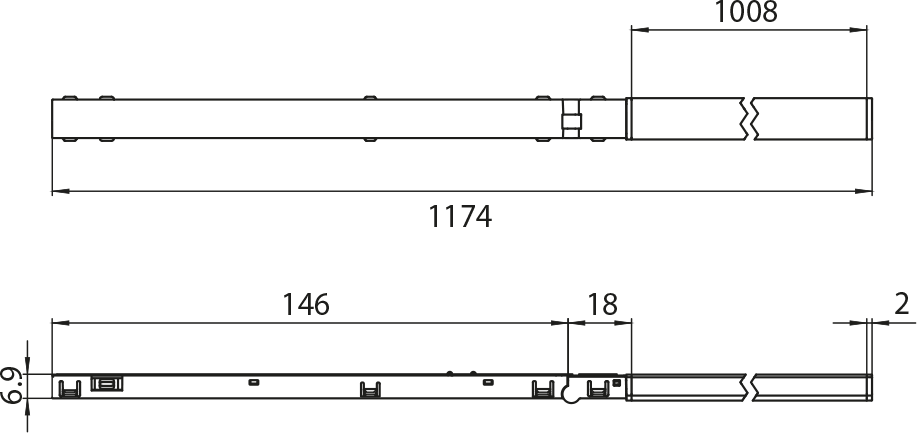

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
