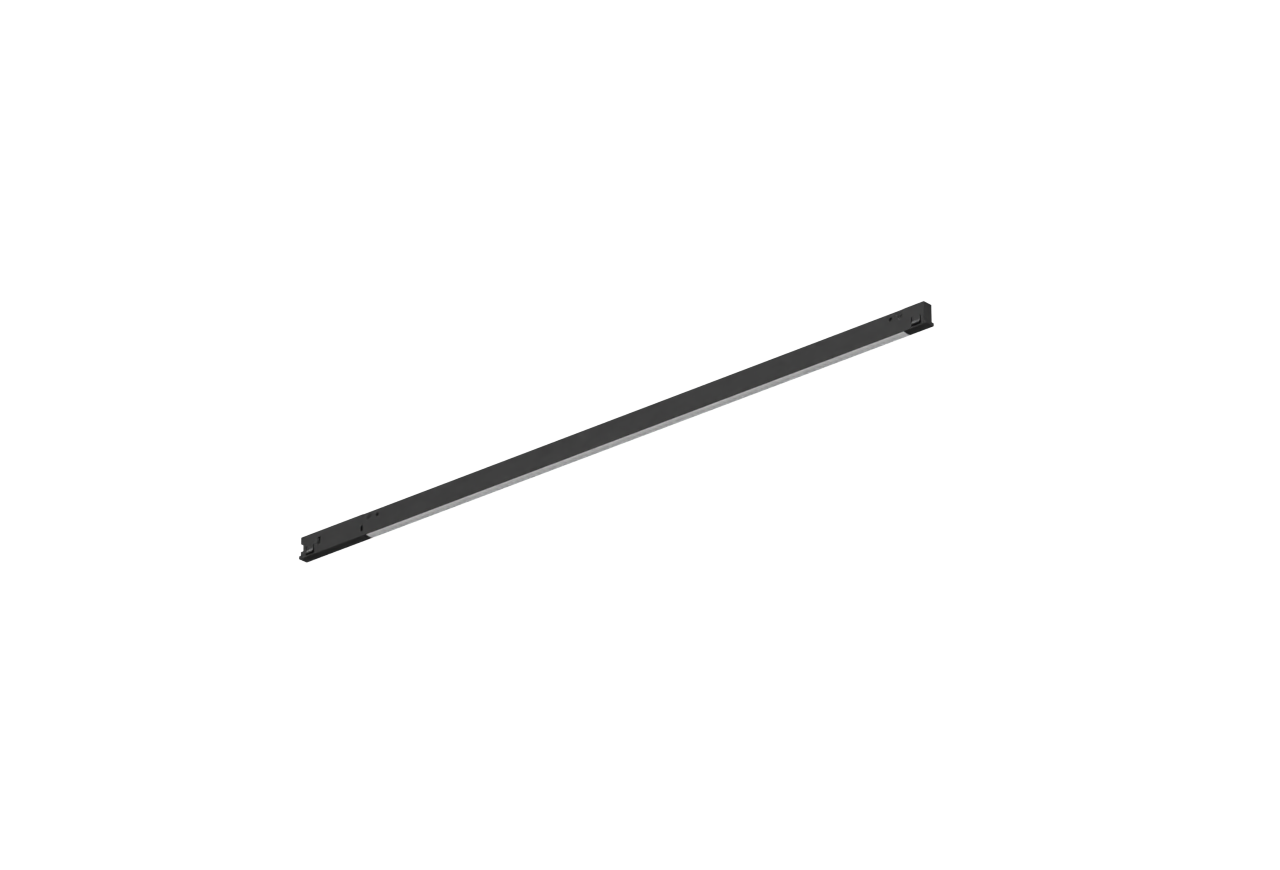

SENZAFINE FLAT CORE5 OPAL
SENZAFINE FLAT CORE5 M5
SENZAFINE FLAT CORE5 OPAL
24V linear light module. For 9800 CORE5 tracks. Opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE FLAT CORE5 OPAL
technical specifications
SENZAFINE FLAT CORE5 OPAL
24V linear light module. For 9800 CORE5 tracks. Opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM5345/B5-O-0
CCT3000 K
Length345 mm
Luminous flux252 lm
Power4.3 W
Efficiency58.5 lm/W
FamilySenzafine Flat
Product lineSENZAFINE FLAT CORE5 M5
OpticsOPAL (O)
CRI90
ColourBlack
Control system24V Dimmerabile
UGR>28
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants12
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE FLAT CORE5 OPAL
dimensions

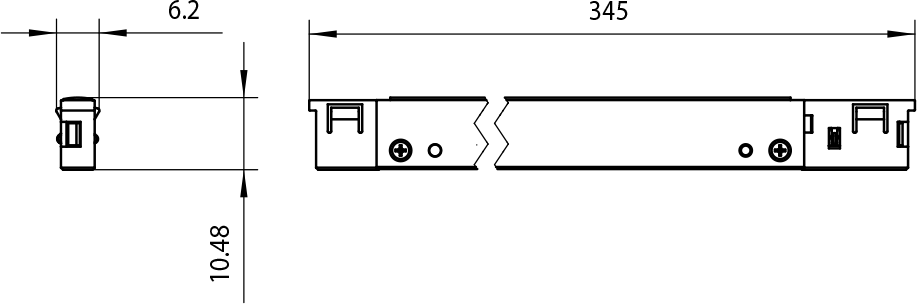

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
