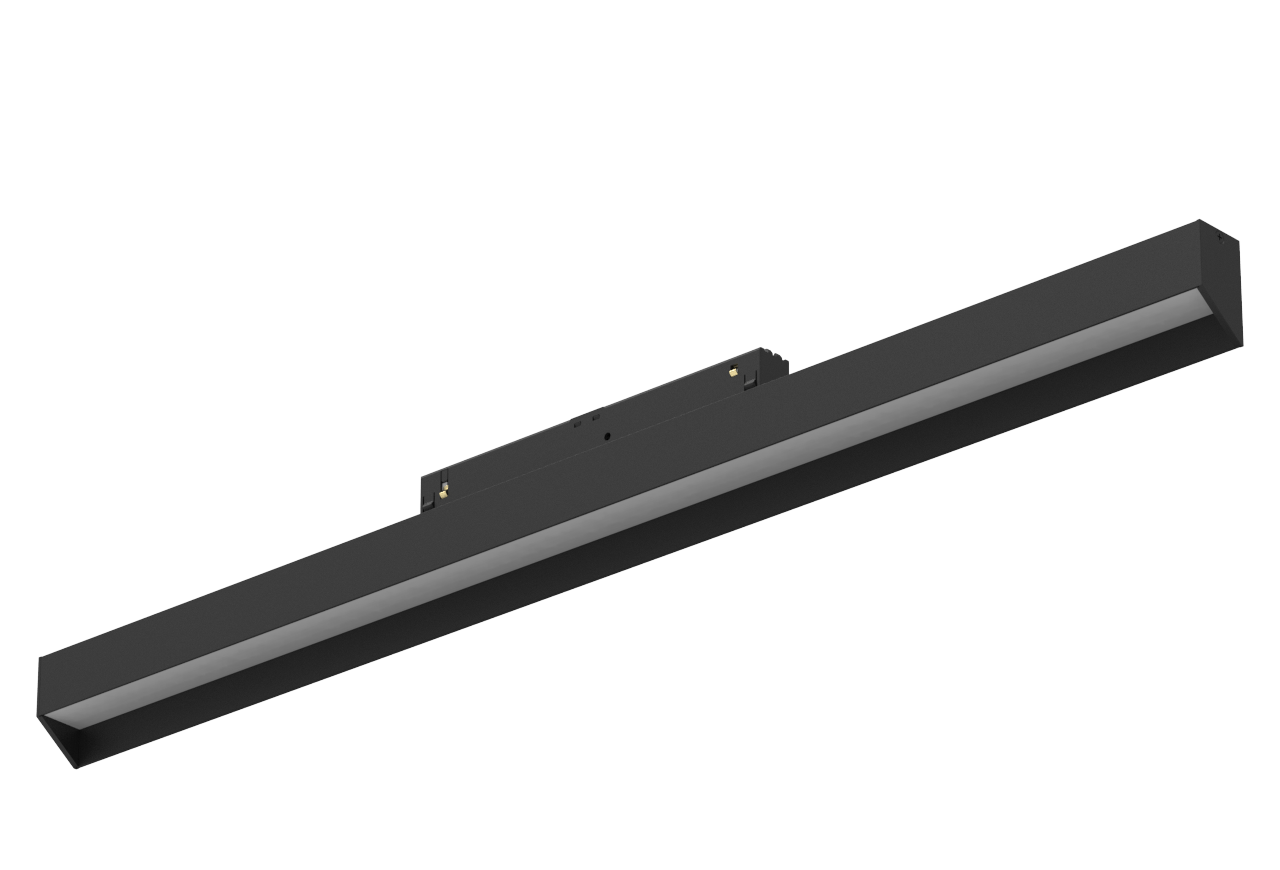

SENZAFINE EVO WALLWASHER
SENZAFINE EVO M22
SENZAFINE EVO WALLWASHER
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate wall washer screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO WALLWASHER
technical specifications
SENZAFINE EVO WALLWASHER
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate wall washer screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22567/B5-W-9-E
Length565 mm
ColourBlack
Control systemNO DRIVER
Luminous flux1766 lm
Power25.3 W
Efficiency69.8 lm/W
FamilySenzafine EVO
Product lineSENZAFINE EVO M22
CCT3000 K
OpticsWALL WASHER (W)
CRI90
UGR>28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants20
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO WALLWASHER
dimensions

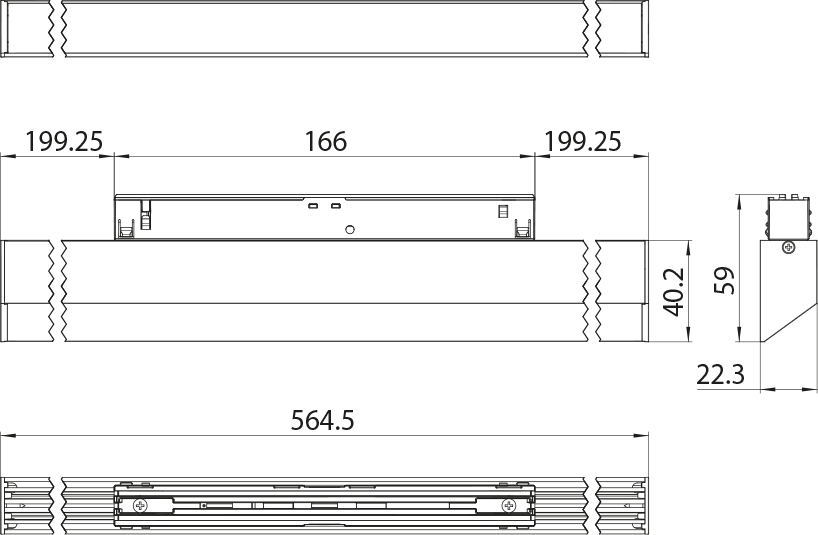

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
