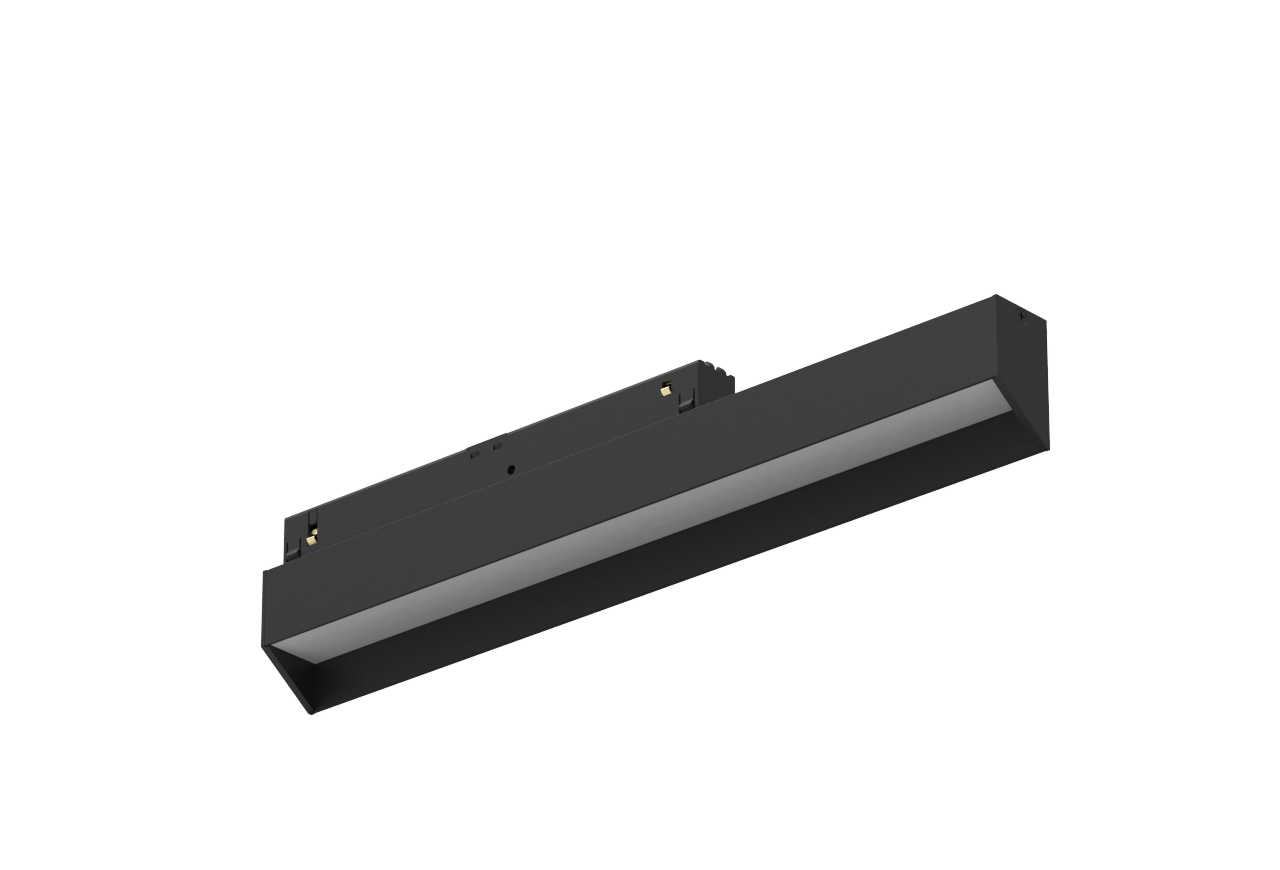

SENZAFINE EVO WALLWASHER
SENZAFINE EVO M22
SENZAFINE EVO WALLWASHER
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate wall washer screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO WALLWASHER
technical specifications
SENZAFINE EVO WALLWASHER
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate wall washer screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22286/B5-W-0-E
Length285 mm
ColourBlack
Control systemON-OFF
Luminous flux883 lm
Power12.7 W
Efficiency69.5 lm/W
FamilySenzafine EVO
Product lineSENZAFINE EVO M22
CCT3000 K
OpticsWALL WASHER (W)
CRI90
UGR>28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants20
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO WALLWASHER
dimensions

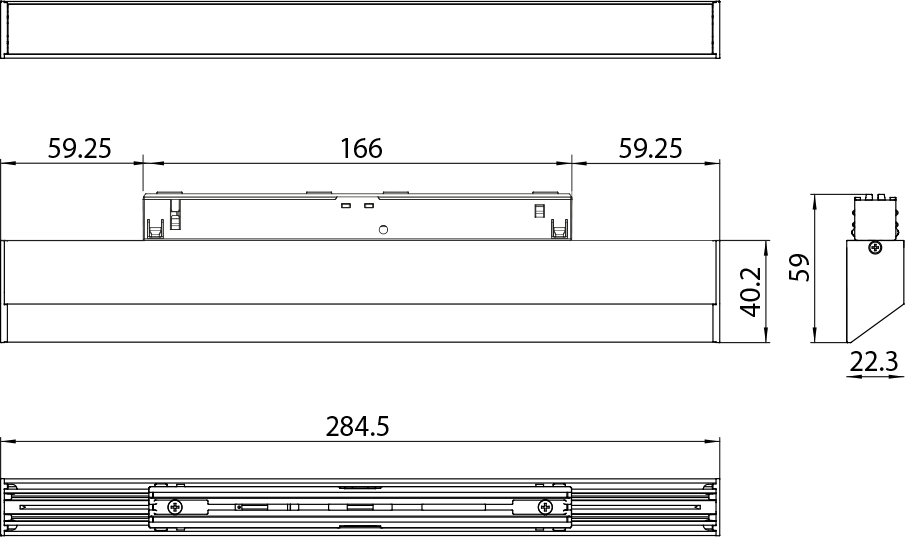

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
