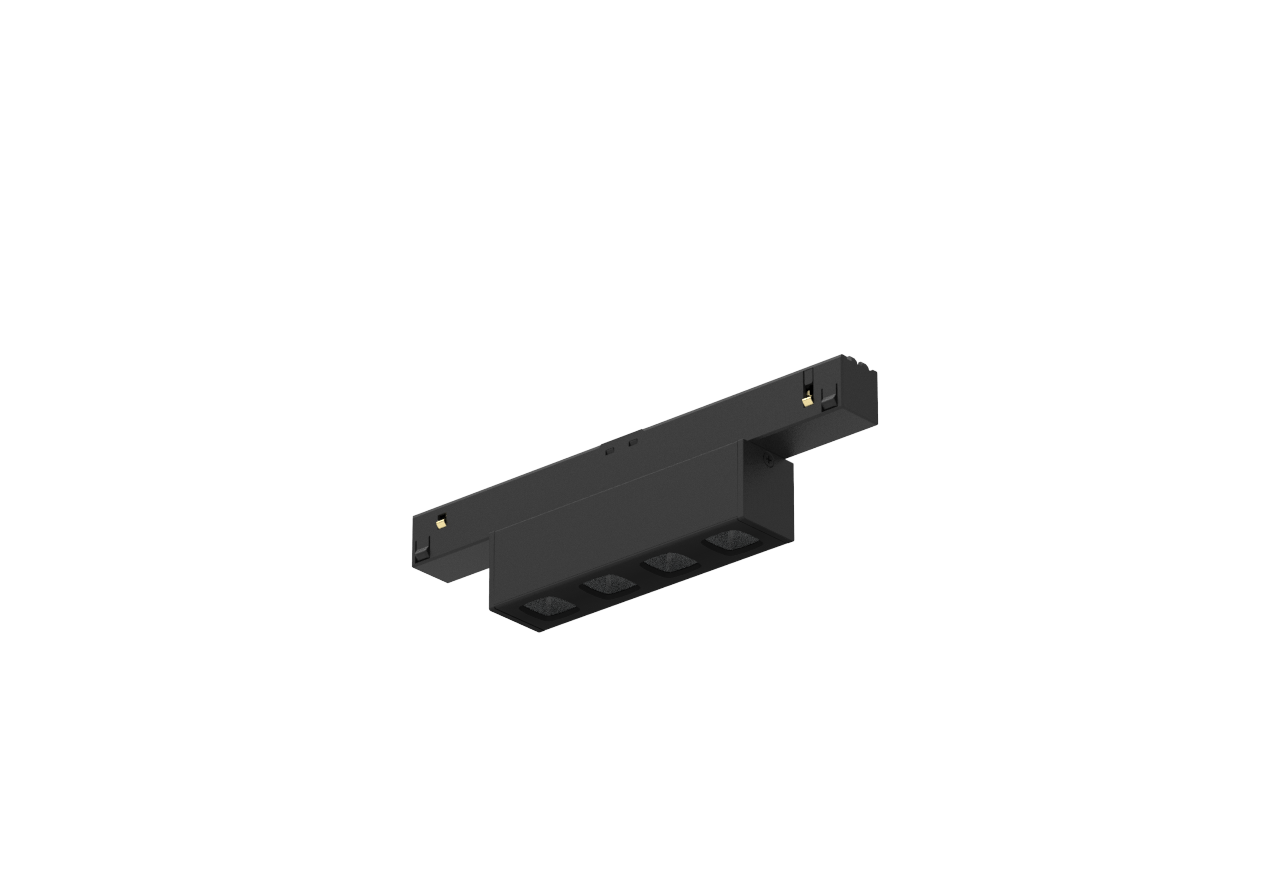

SENZAFINE EVO UGR
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate UGR reflector.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO UGR
technical specifications
SENZAFINE EVO UGR
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate UGR reflector. Polyamide cover.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM2298/B1-U-9-E
Length98 mm
CRI90
ColourBlack
Control systemNO DRIVER
Luminous flux625 lm
Power8.3 W
Efficiency75.3 lm/W
UGR<25
Lifetime>60Khr L90B10
DetailsHigh output version
FamilySenzafine EVO
Product lineSENZAFINE EVO M22
CCT3000 K
OpticsUGR REFLECTOR (U)
MacAdam≤ 3
Variants88
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO UGR
dimensions

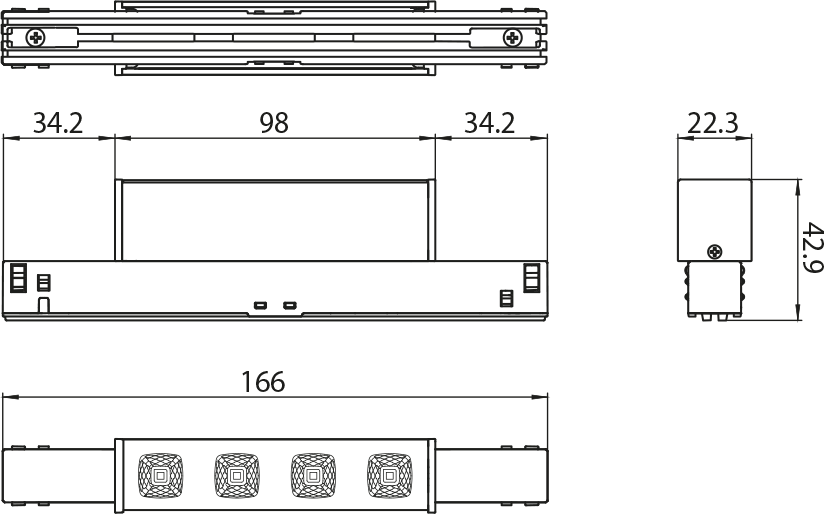

Dimension drawing
