SENZAFINE EVO UGR
SENZAFINE EVO M22

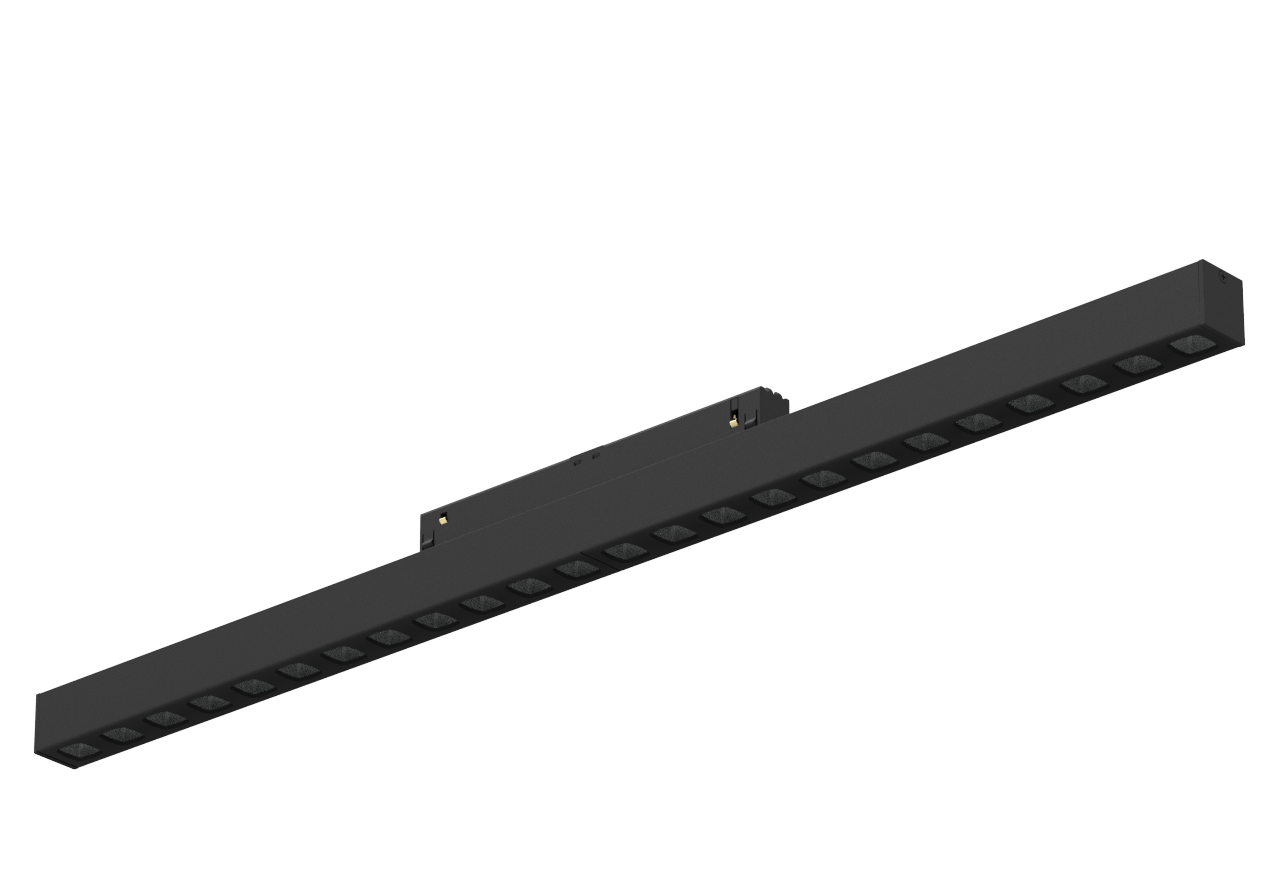

SENZAFINE EVO UGR
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate UGR reflector.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO UGR
technical specifications
SENZAFINE EVO UGR
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate UGR reflector. Polyamide cover.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22567/B3-U-2-E
Length565 mm
CRI95
ColourBlack
Control systemDALI
Luminous flux826 lm
Power10.6 W
Efficiency77.9 lm/W
UGR<19
Lifetime>50Khr L90B10
FamilySenzafine EVO
Product lineSENZAFINE EVO M22
CCT3000 K
OpticsUGR REFLECTOR (U)
MacAdam≤ 3
Variants88
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO UGR
dimensions

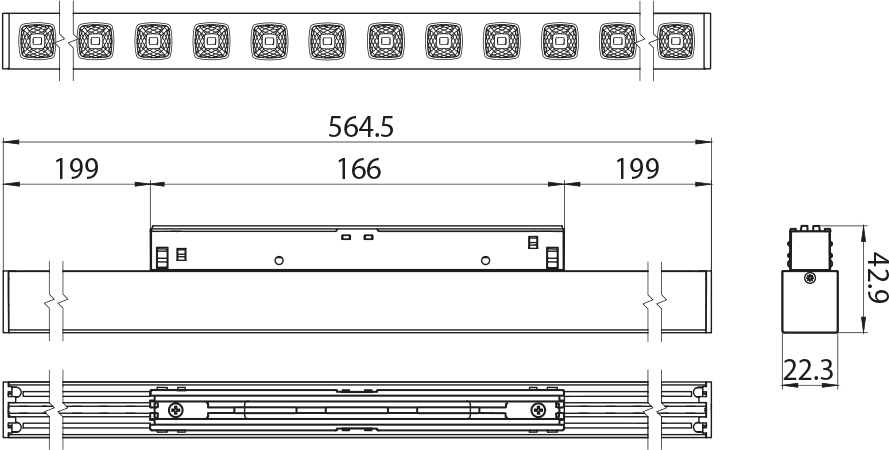

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
