SENZAFINE EVO UGR
SENZAFINE EVO M22
SENZAFINE EVO UGR
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate UGR reflector.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO UGR
technical specifications

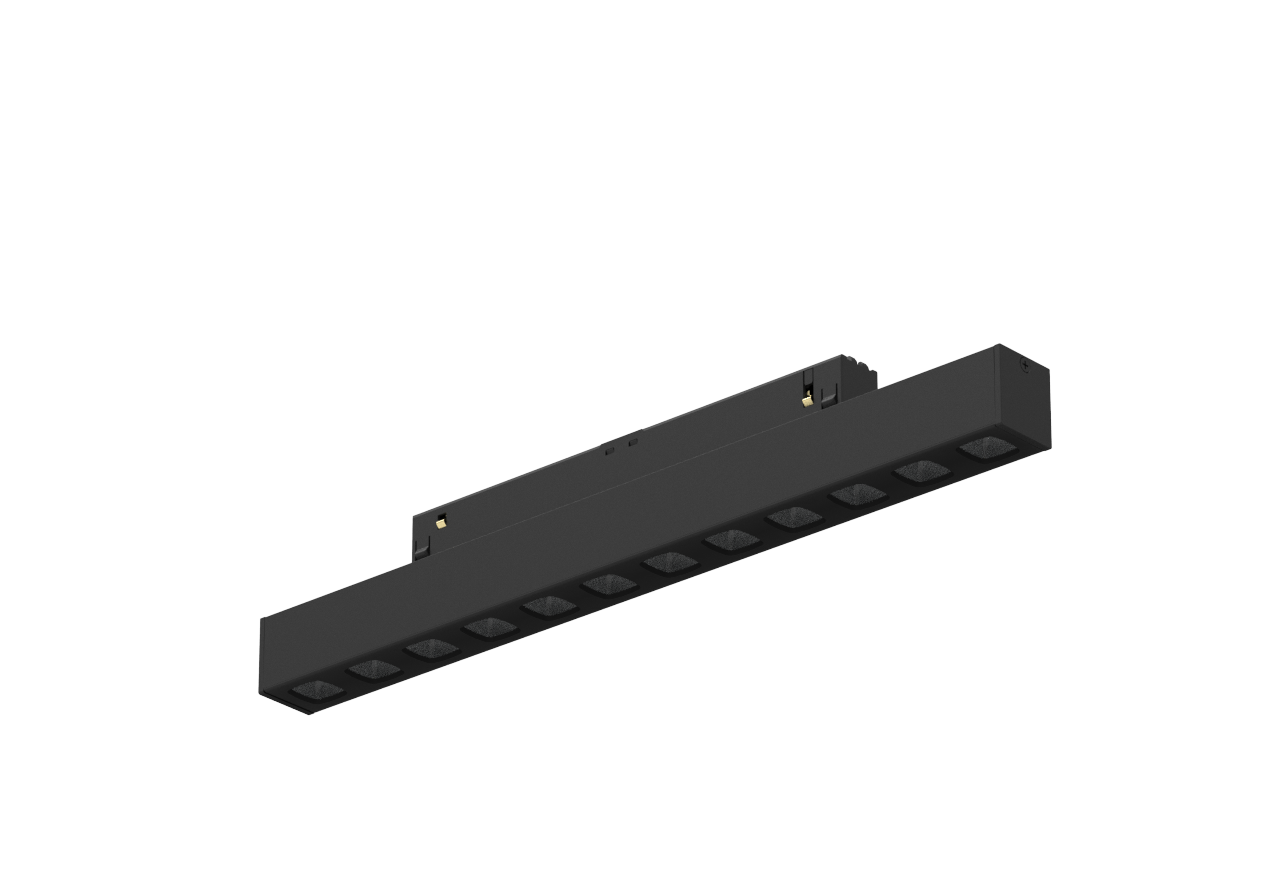

SENZAFINE EVO UGR
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate UGR reflector. Polyamide cover.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22286/B1-U-2-E
Length285 mm
CRI90
ColourBlack
Control systemDALI
Luminous flux1011 lm
Power10.3 W
Efficiency98.1 lm/W
UGR<22
Lifetime>60Khr L90B10
DetailsHigh output version
FamilySenzafine EVO
Product lineSENZAFINE EVO M22
CCT3000 K
OpticsUGR REFLECTOR (U)
MacAdam≤ 3
Variants88
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO UGR
dimensions

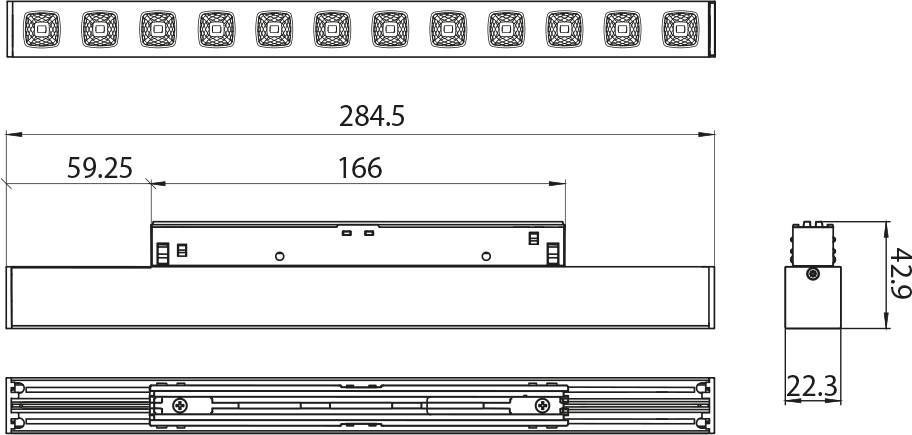

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
