SENZAFINE EVO TWIST
SENZAFINE EVO TWIST T30
SENZAFINE EVO TWIST
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO TWIST
technical specifications
SENZAFINE EVO TWIST
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeT30H575/B5-O-0
Length575 mm
Control systemON-OFF
Luminous flux1092 lm
Power11.4 W
Efficiency95.8 lm/W
FamilySenzafine Twist
Product lineSENZAFINE EVO TWIST T30
CCT3000 K
OpticsOPAL (O)
CRI90
ColourBlack
UGR<28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants8
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO TWIST
dimensions

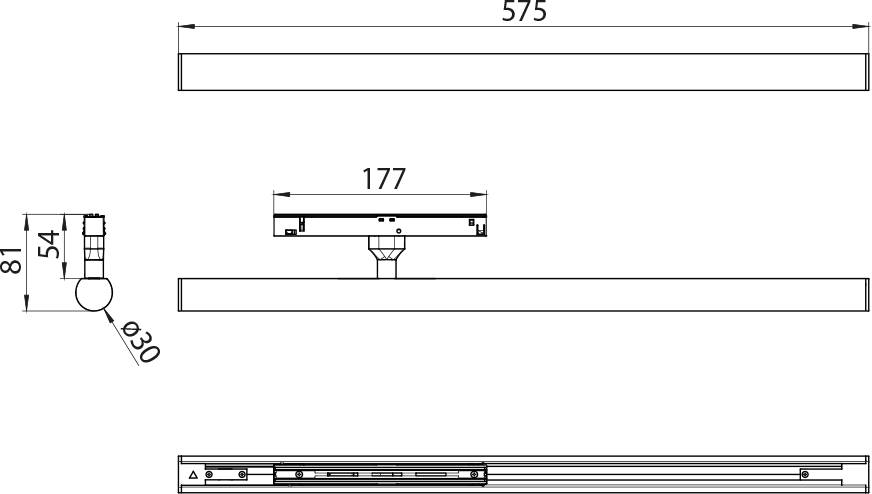

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
