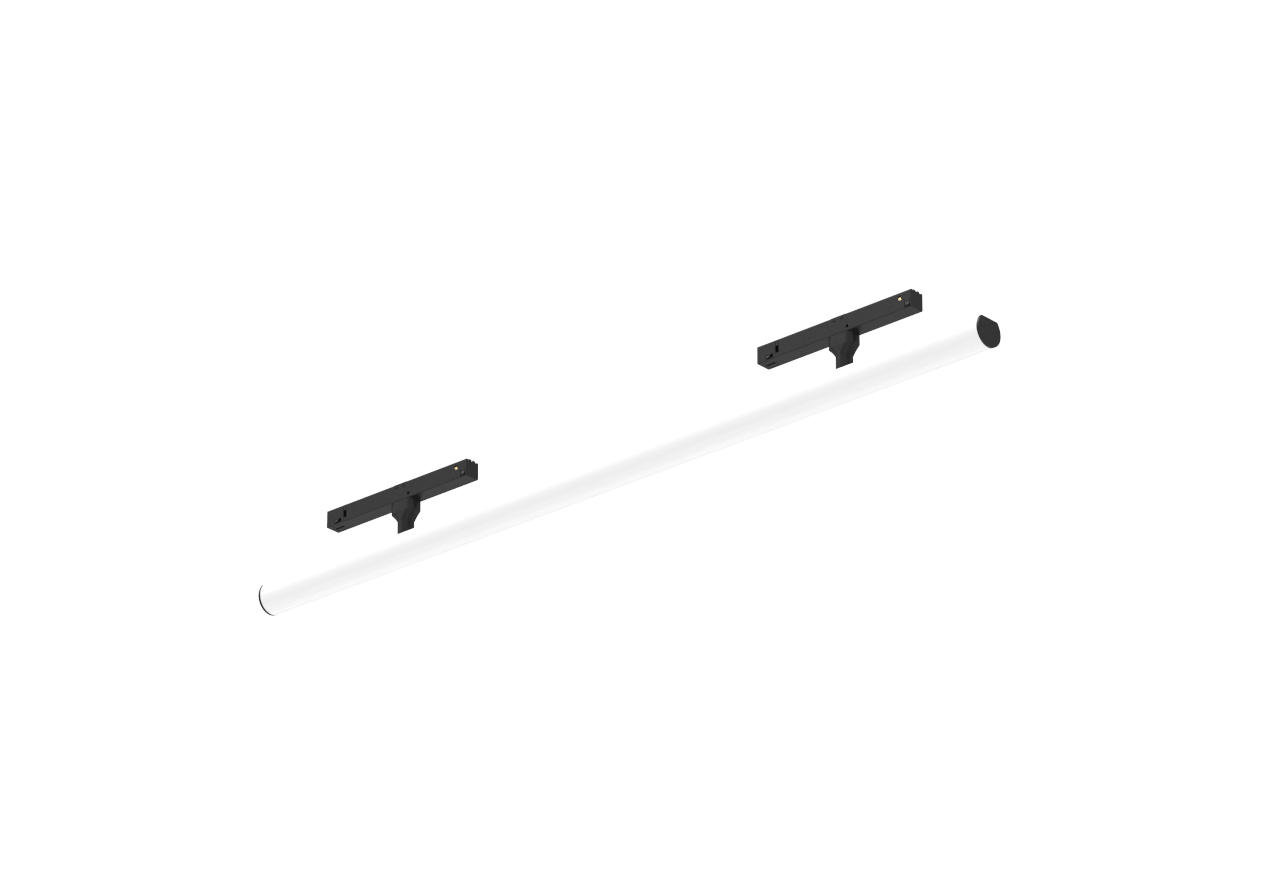

SENZAFINE EVO TWIST CROSS T30C
SENZAFINE EVO TWIST CROSS T30C
SENZAFINE EVO TWIST CROSS T30C
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO TWIST CROSS T30C
technical specifications
SENZAFINE EVO TWIST CROSS T30C
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeT30CH855/B5-O-2
Length855 mm
Control systemDALI
Luminous flux1638 lm
Power17.2 W
Efficiency95.2 lm/W
FamilySenzafine Twist
Product lineSENZAFINE EVO TWIST CROSS T30C
CCT3000 K
OpticsOPAL (O)
CRI90
ColourBlack
UGR<28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants18
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO TWIST CROSS T30C
dimensions

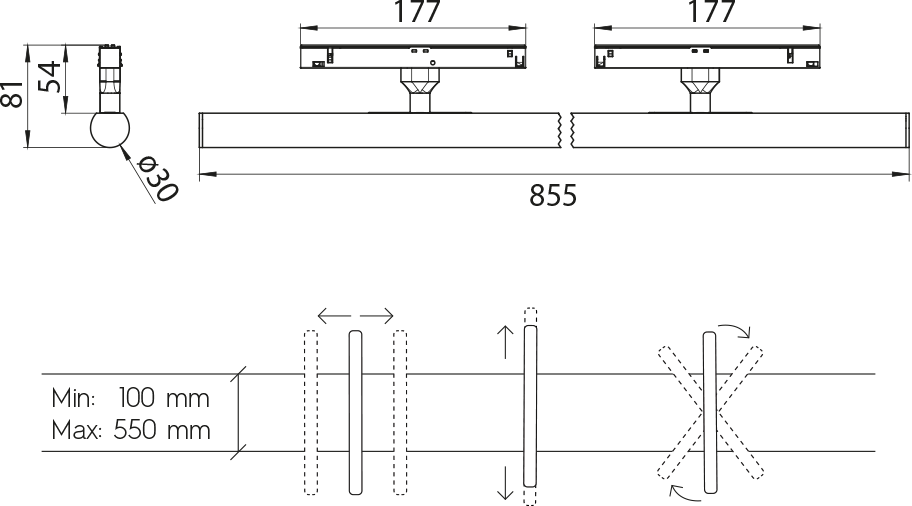

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
