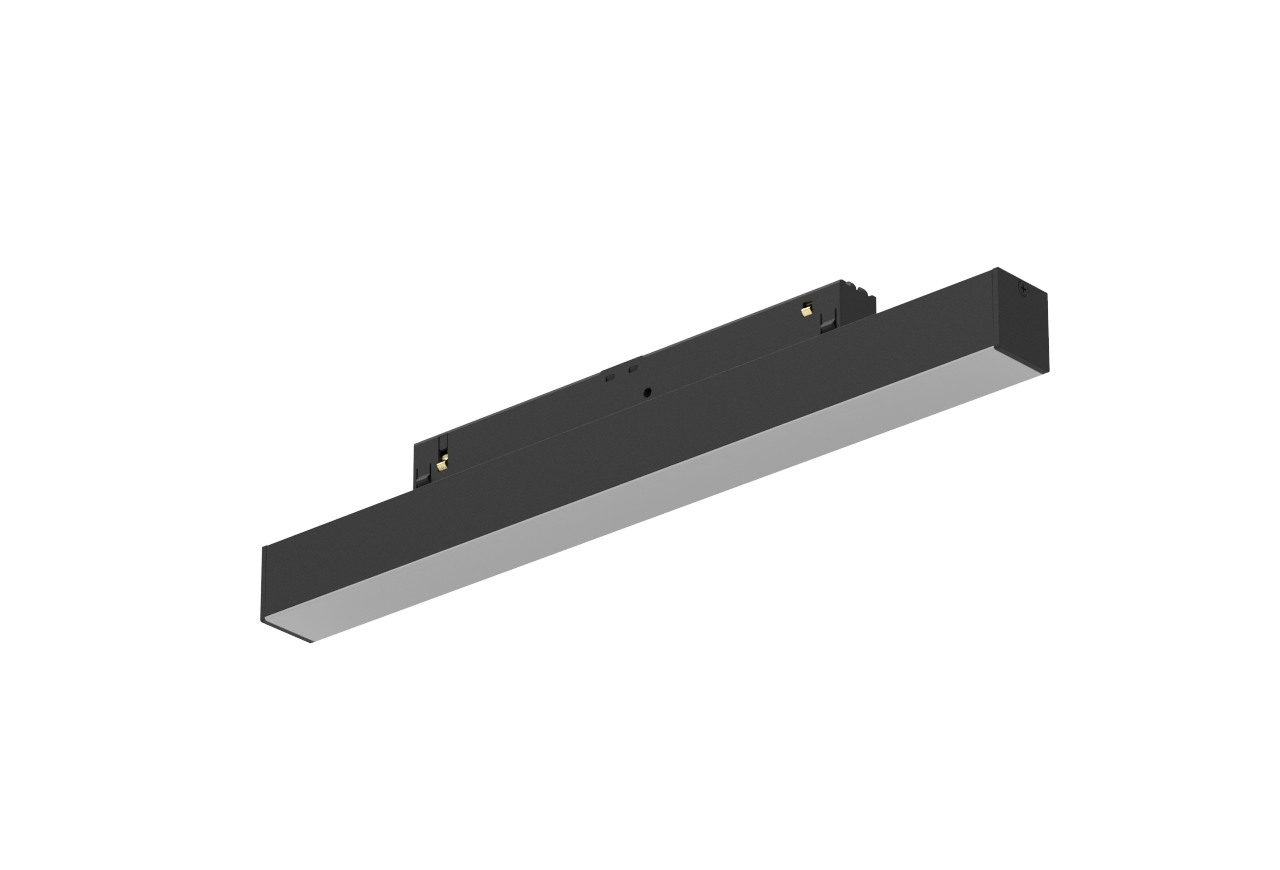

SENZAFINE EVO OPALINO
SENZAFINE EVO M22
SENZAFINE EVO OPALINO
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO OPALINO
technical specifications
SENZAFINE EVO OPALINO
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22286/B5-O-2-E
Length285 mm
ColourBlack
Control systemDALI
Luminous flux495 lm
Power6.1 W
Efficiency81.1 lm/W
FamilySenzafine EVO
Product lineSENZAFINE EVO M22
CCT3000 K
OpticsOPAL (O)
CRI90
UGR>28
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants40
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO OPALINO
dimensions

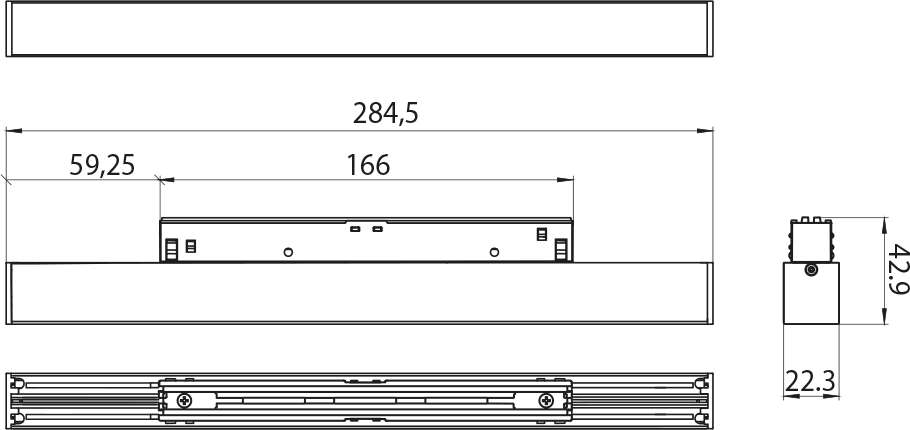

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
