SENZAFINE EVO MICROPRISMATICO
SENZAFINE EVO M22

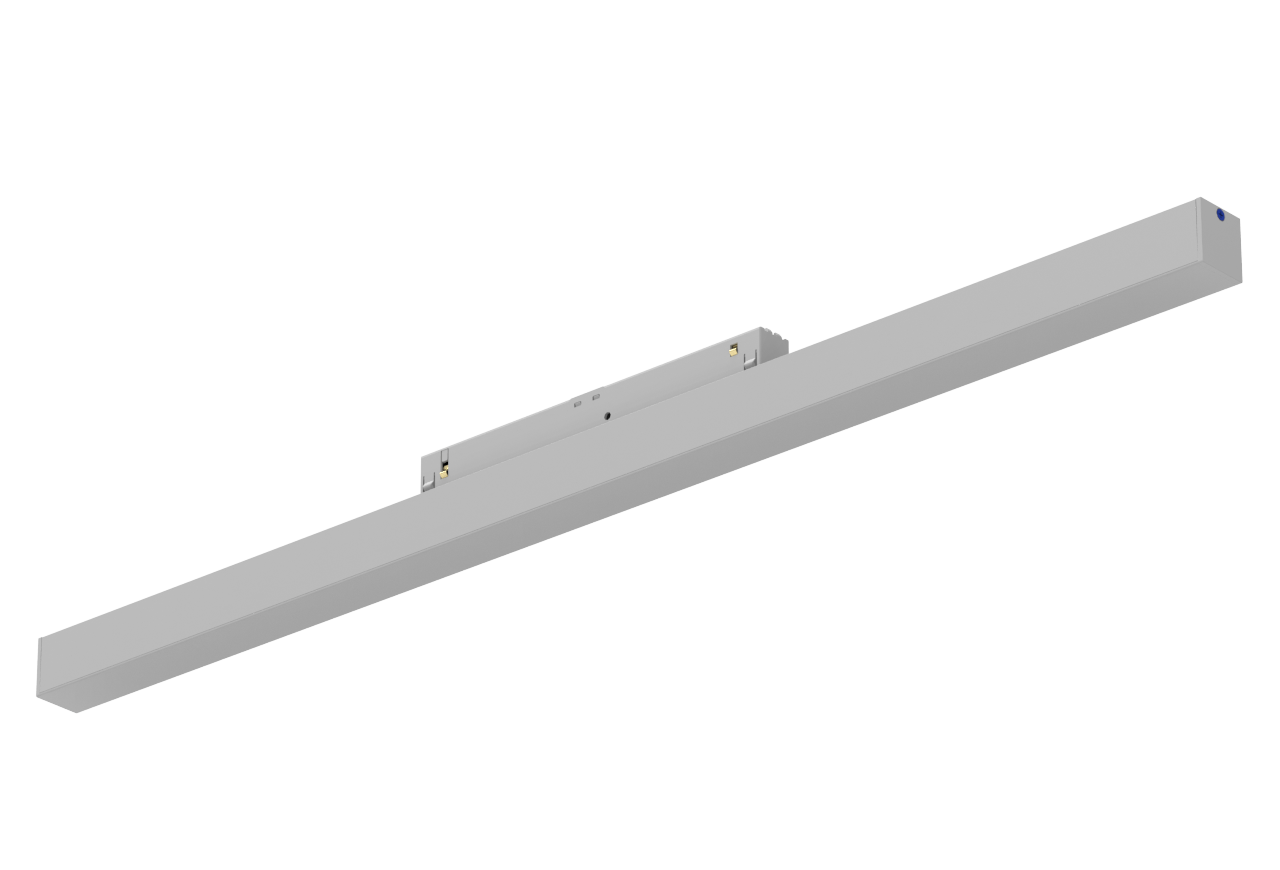

SENZAFINE EVO MICROPRISMATICO
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate microprismatic screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO MICROPRISMATICO
technical specifications
SENZAFINE EVO MICROPRISMATICO
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate microprismatic screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22567/W25-M-0-E
Length565 mm
ColourWhite
Control systemON-OFF
Luminous flux694 lm
Power11.4 W
Efficiency60.9 lm/W
FamilySenzafine EVO
Product lineSENZAFINE EVO M22
CCT3000 K
OpticsMICROPRISMATIC (M)
CRI90
UGR<25
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants40
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO MICROPRISMATICO
dimensions

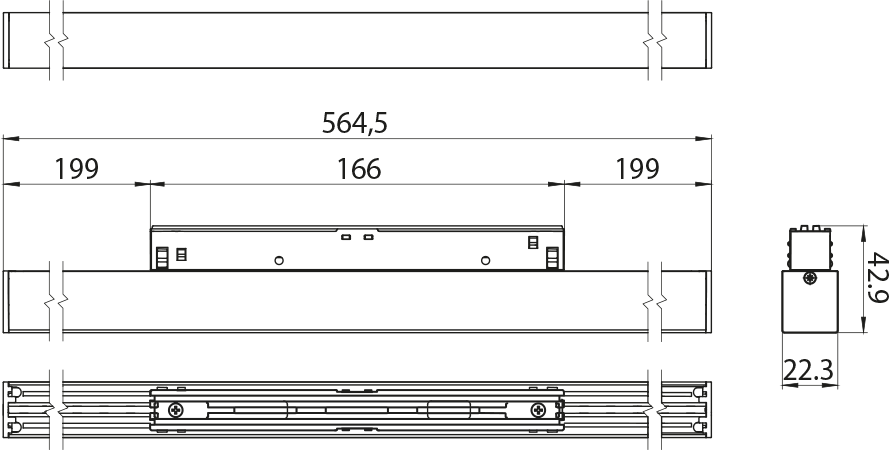

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
