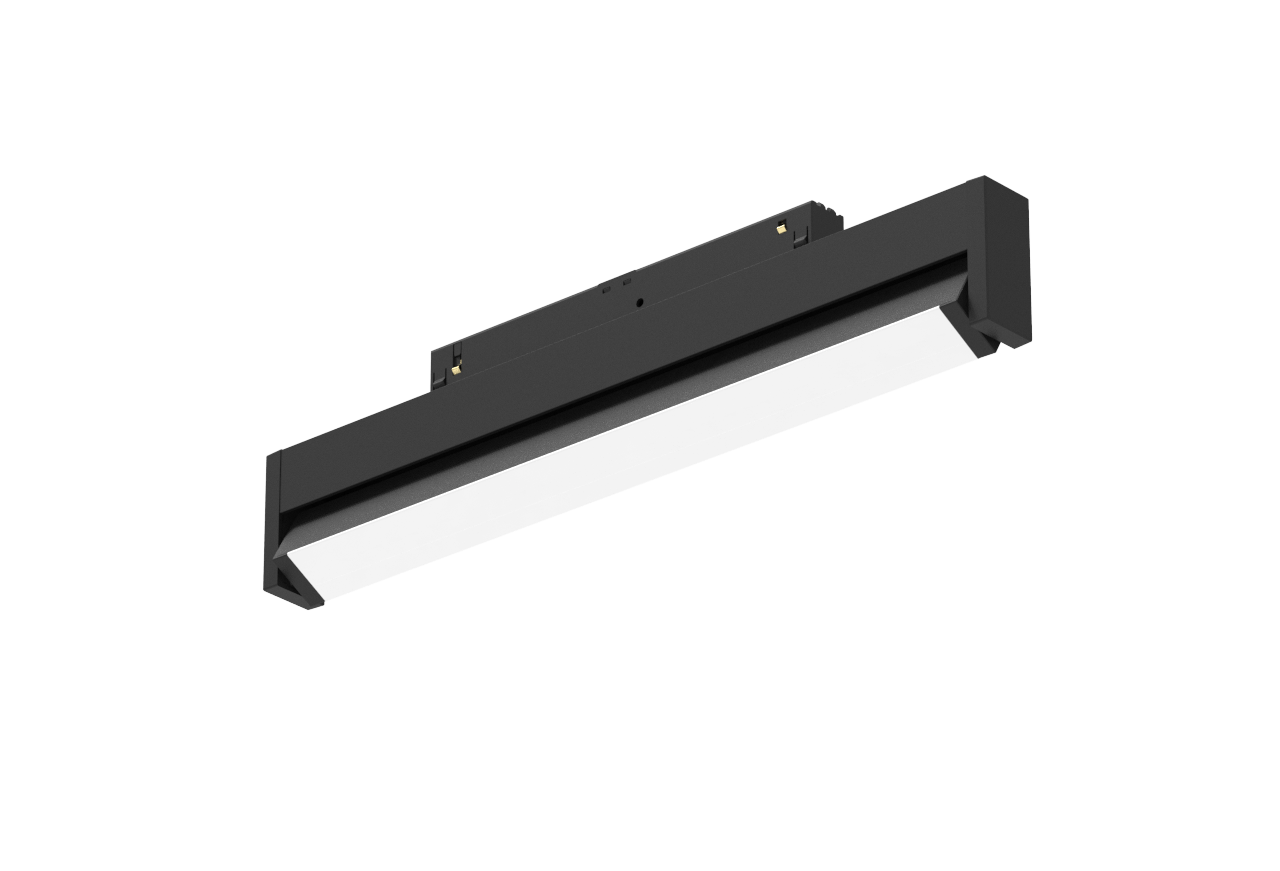

SENZAFINE EVO MICROPRISMATICO ADJUSTABLE
SENZAFINE EVO ADJUSTABLE M22A
SENZAFINE EVO MICROPRISMATICO ADJUSTABLE
48V linear light module ADJUSTABLE. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO MICROPRISMATICO ADJUSTABLE
technical specifications
SENZAFINE EVO MICROPRISMATICO ADJUSTABLE
48V linear light module ADJUSTABLE. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate microprismatic screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22A310/B5-M-0-E
Length312 mm
ColourBlack
Control systemON-OFF
Luminous flux347 lm
Power6.1 W
Efficiency56.9 lm/W
FamilySenzafine Adjustable
Product lineSENZAFINE EVO ADJUSTABLE M22A
CCT3000 K
OpticsMICROPRISMATIC (M)
CRI90
UGR<25
MacAdam≤ 3
Lifetime>50Khr L90B5
Variants24
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO MICROPRISMATICO ADJUSTABLE
dimensions

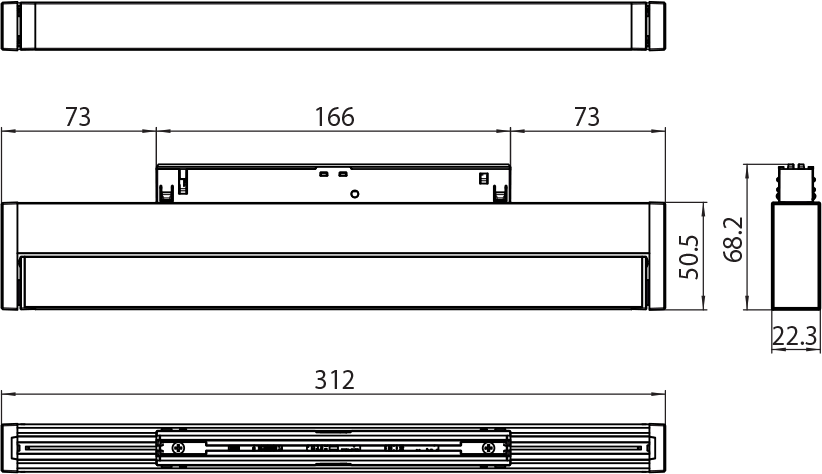

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
