SENZAFINE EVO M22D DEEP LENS ■
SENZAFINE EVO M22D DEEP

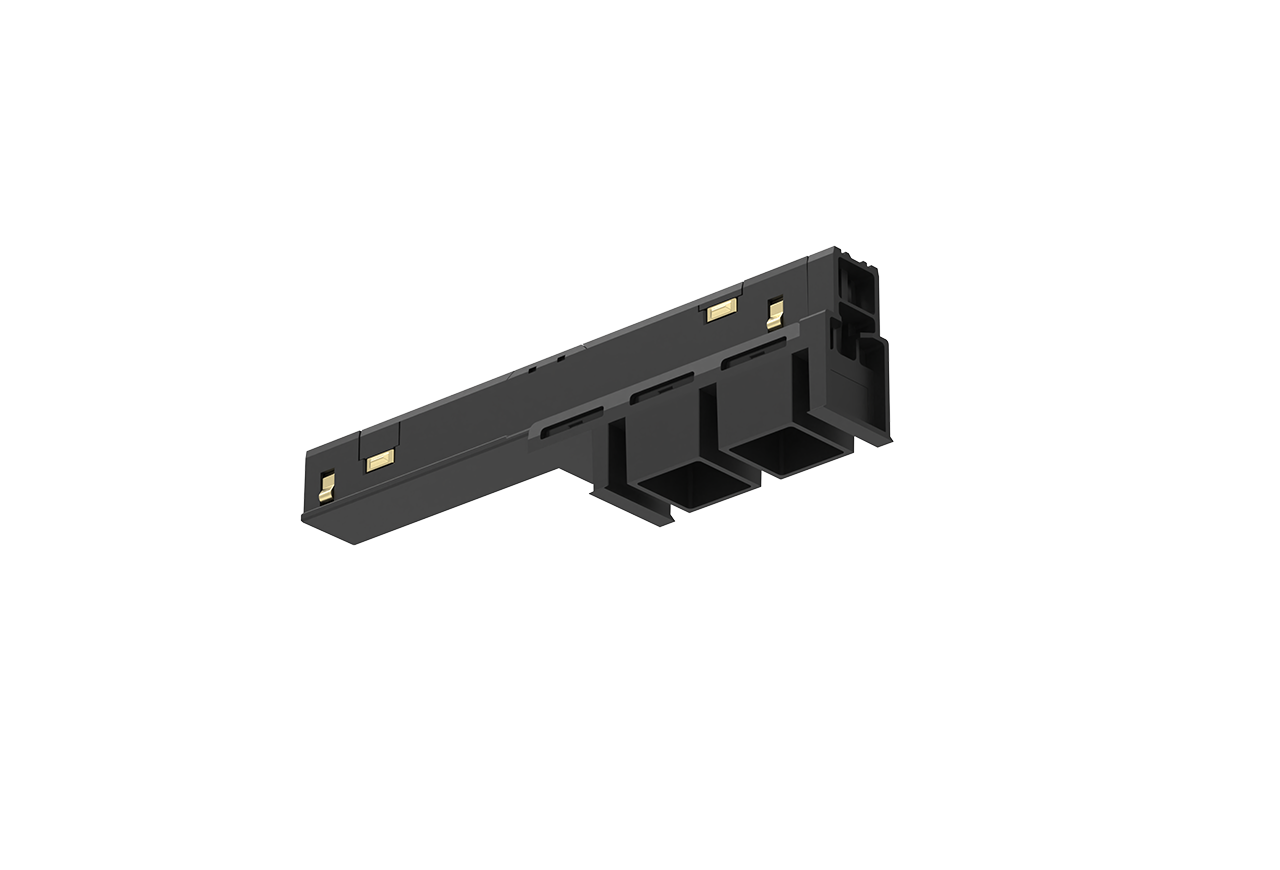

SENZAFINE EVO M22D DEEP LENS ■
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Polycarbonate body. L(mm): 164,9.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO M22D DEEP LENS ■
technical specifications
SENZAFINE EVO M22D DEEP LENS ■
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Polycarbonate body. L(mm): 164,9.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22DS2/B5-C-2-E
CCT3000 K
OpticsMEDIUM BEAM LENSES (B)
ColourBlack
Luminous flux257 lm
Power5.3 W
Efficiency48.5 lm/W
UGR<13
DetailsTwo square antiglare, polycarbonate medium beam lens
FamilySenzafine Deep
Product lineSENZAFINE EVO M22D DEEP
Length165 mm
CRI90
Control systemDALI
MacAdam≤ 3
Lifetime>60Khr L90B10
Variants24
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO M22D DEEP LENS ■
dimensions

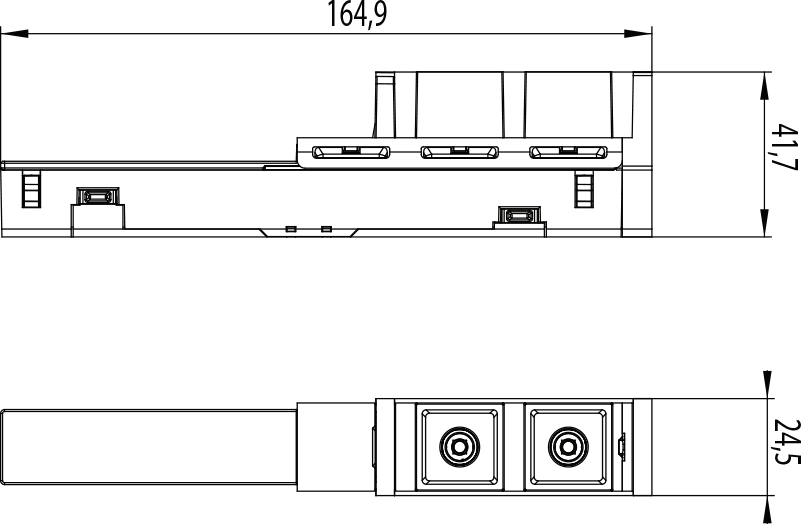

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
