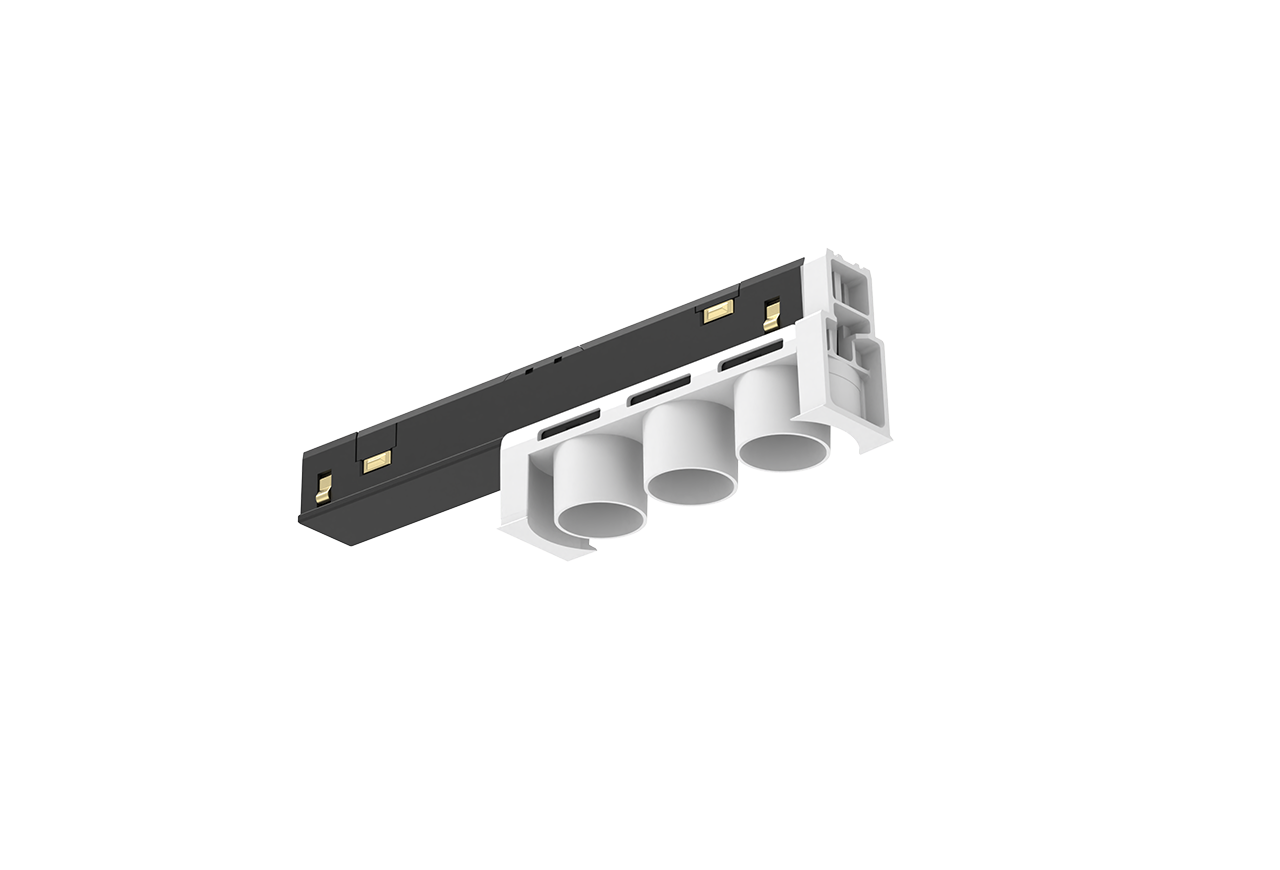

SENZAFINE EVO M22D DEEP LENS ●
SENZAFINE EVO M22D DEEP
SENZAFINE EVO M22D DEEP LENS ●
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Polycarbonate body. L(mm): 164,9.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO M22D DEEP LENS ●
technical specifications
SENZAFINE EVO M22D DEEP LENS ●
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Polycarbonate body. L(mm): 164,9.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22DR3/W8-F-2-E
CCT2700 K
OpticsELLIPTICAL BEAM LENSES (E)
ColourWhite
Luminous flux330 lm
Power7.1 W
Efficiency46.4 lm/W
UGR<25
DetailsThree round antiglare, polycarbonate elliptical lens
FamilySenzafine Deep
Product lineSENZAFINE EVO M22D DEEP
Length165 mm
CRI90
Control systemDALI
MacAdam≤ 3
Lifetime>60Khr L90B10
Variants24
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO M22D DEEP LENS ●
dimensions

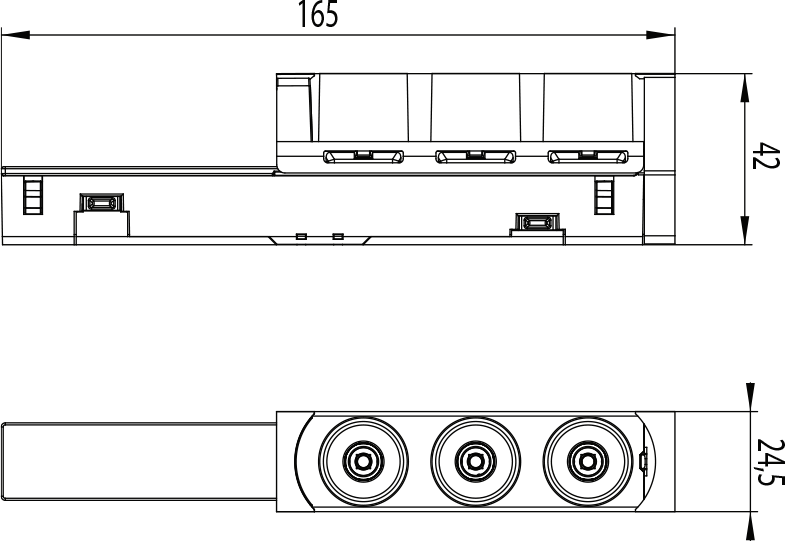

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
