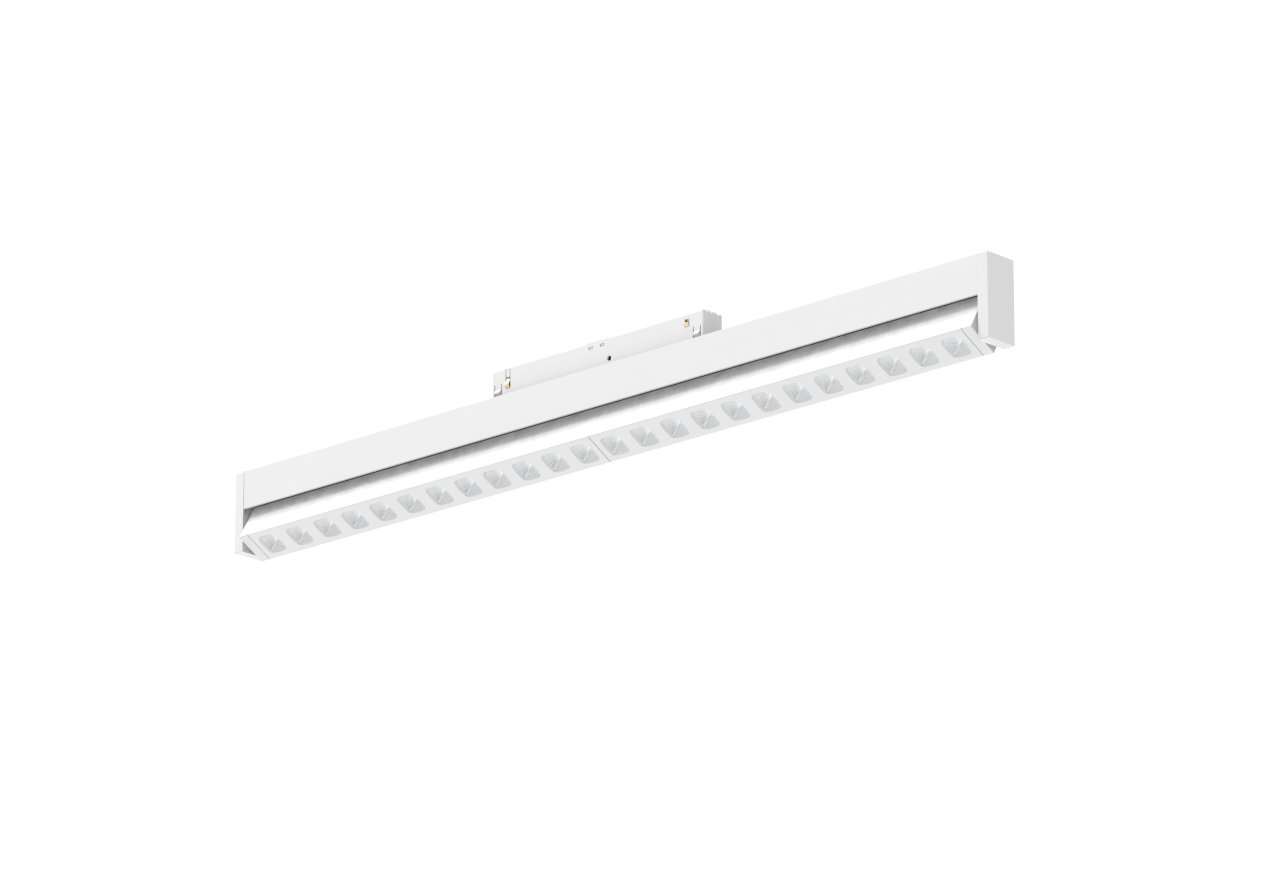

SENZAFINE EVO LOW GLARE ADJUSTABLE
SENZAFINE EVO ADJUSTABLE M22A
SENZAFINE EVO LOW GLARE ADJUSTABLE
48V linear light module ADJUSTABLE. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Low glare screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO LOW GLARE ADJUSTABLE
technical specifications
SENZAFINE EVO LOW GLARE ADJUSTABLE
48V linear light module ADJUSTABLE. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Low glare screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22A590/W23-U-9-E
Length592 mm
CRI95
ColourWhite
Control systemNO DRIVER
Luminous flux826 lm
Power10.6 W
Efficiency77.9 lm/W
UGR<19
Lifetime>50Khr L90B10
FamilySenzafine Adjustable
Product lineSENZAFINE EVO ADJUSTABLE M22A
CCT3000 K
OpticsUGR REFLECTOR (U)
MacAdam≤ 3
Variants68
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO LOW GLARE ADJUSTABLE
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
