SENZAFINE EVO LENS
SENZAFINE EVO M22

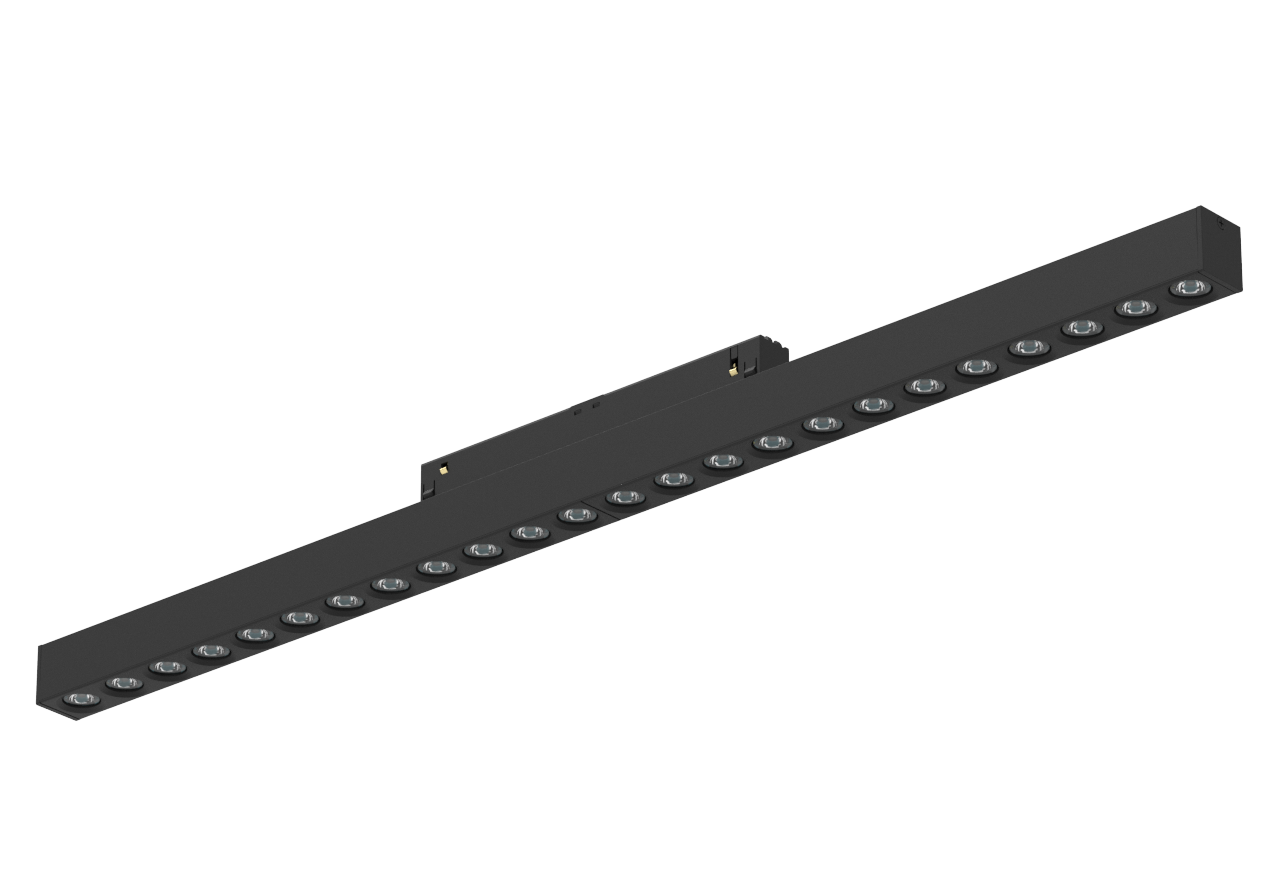

SENZAFINE EVO LENS
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polyamide cover.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO LENS
technical specifications
SENZAFINE EVO LENS
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polyamide cover.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22567/B3-A-0-E
OpticsNARROW BEAM LENSES (A)
Length565 mm
CRI95
ColourBlack
Control systemON-OFF
Luminous flux778 lm
Power10.6 W
Efficiency73.3 lm/W
UGR<16
Lifetime>50Khr L90B10
DetailsPolycarbonate Lens 20°
FamilySenzafine EVO
Product lineSENZAFINE EVO M22
CCT3000 K
MacAdam≤ 3
Variants216
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO LENS
dimensions

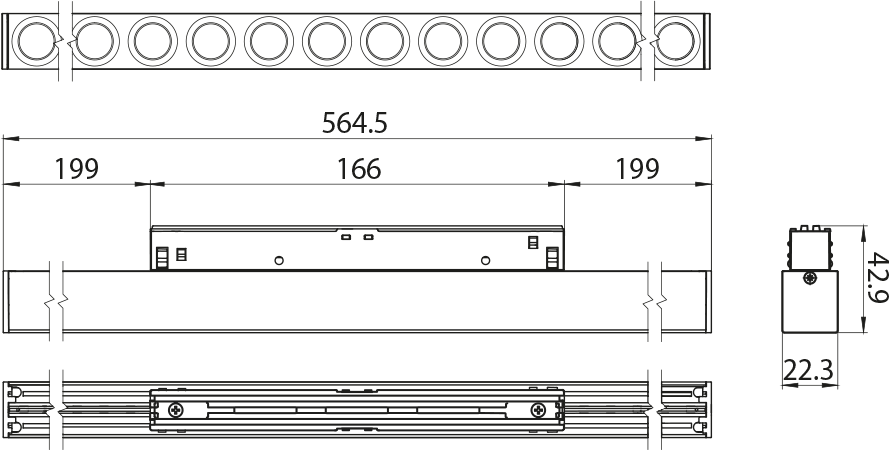

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
