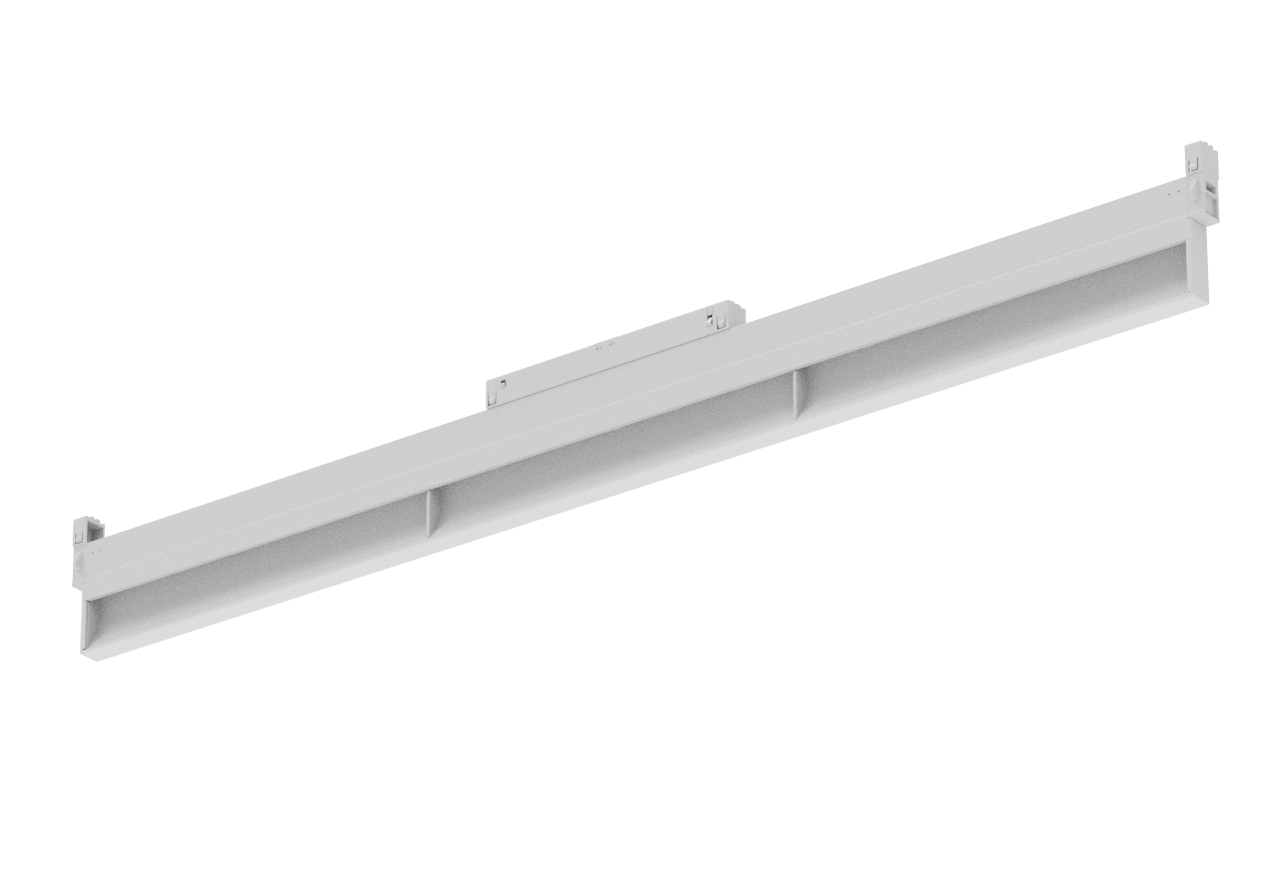

SENZAFINE EVO HE WALLWASHER
SENZAFINE EVO HE M14
SENZAFINE EVO HE WALLWASHER
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate wall washer reflector.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO HE WALLWASHER
technical specifications
SENZAFINE EVO HE WALLWASHER
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate wall washer reflector.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM14750/W25-WL-1-E
CCT3000 K
Length771 mm
ColourWhite
Control system0...10V
Luminous flux1441 lm
Power16.8 W
Efficiency85.8 lm/W
FamilySenzafine HE
Product lineSENZAFINE EVO HE M14
OpticsWALL WASHER (W)
CRI90
UGR>30
MacAdam≤ 3
Lifetime>60Khr L90B5
Variants90
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO HE WALLWASHER
dimensions

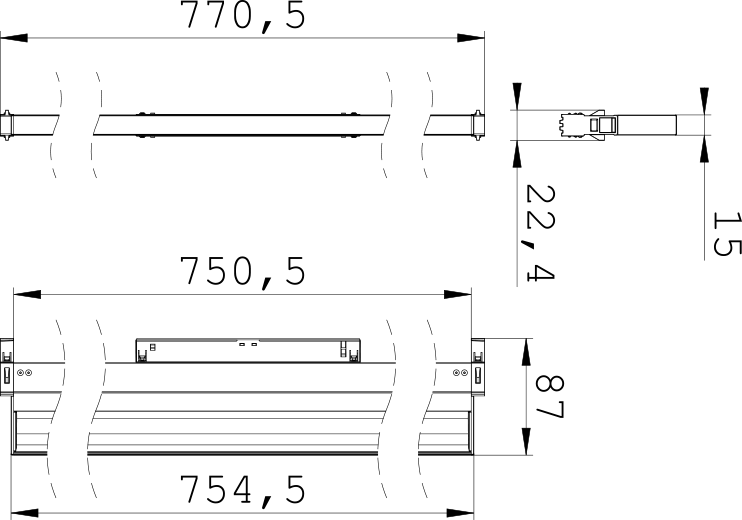

Dimension drawing
