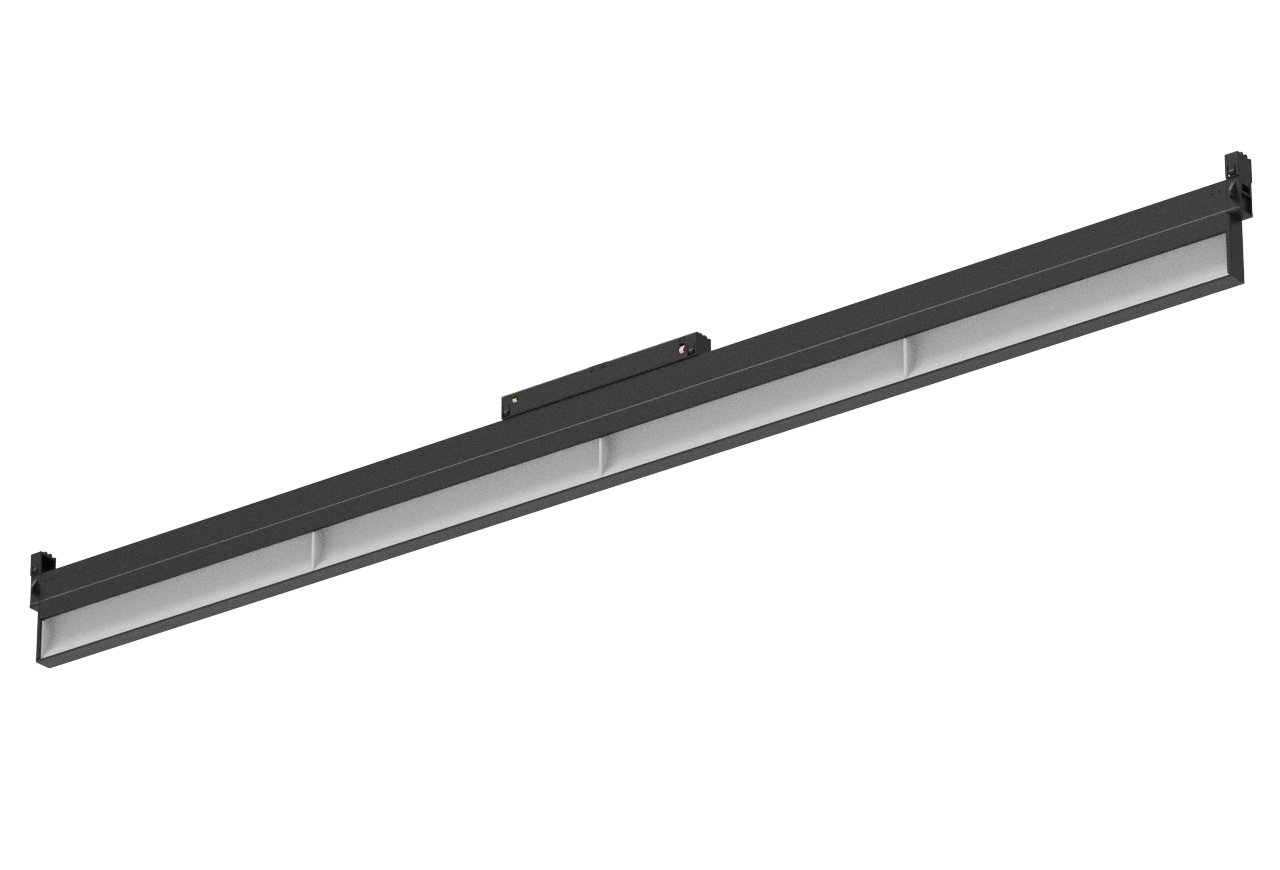

SENZAFINE EVO HE WALLWASHER
SENZAFINE EVO HE M14
SENZAFINE EVO HE WALLWASHER
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate wall washer reflector.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO HE WALLWASHER
technical specifications
SENZAFINE EVO HE WALLWASHER
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate wall washer reflector.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM141000/BG8-WW-2-E
CCT2700 K
Length1021 mm
ColourBlack
Control systemDALI 2
Luminous flux1855 lm
Power21.6 W
Efficiency85.9 lm/W
FamilySenzafine HE
Product lineSENZAFINE EVO HE M14
OpticsWALL WASHER (W)
CRI90
UGR>30
MacAdam≤ 3
Lifetime>60Khr L90B5
Variants90
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO HE WALLWASHER
dimensions

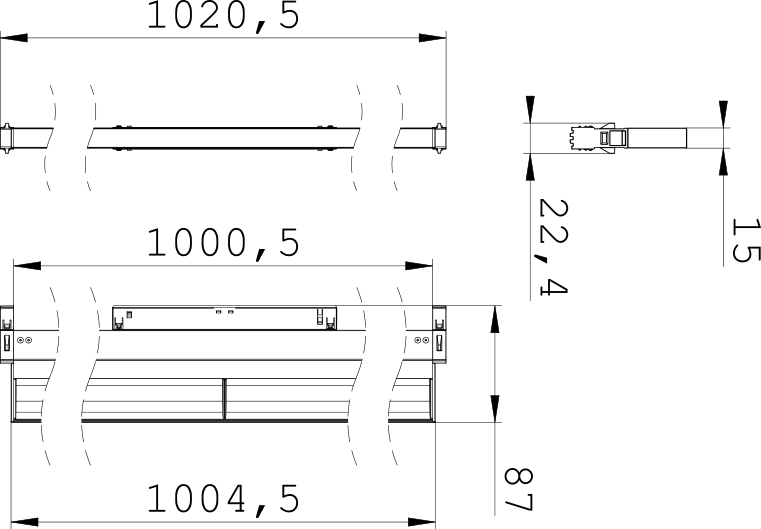

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
