SENZAFINE EVO HE OPAL
SENZAFINE EVO HE M14
SENZAFINE EVO HE OPAL

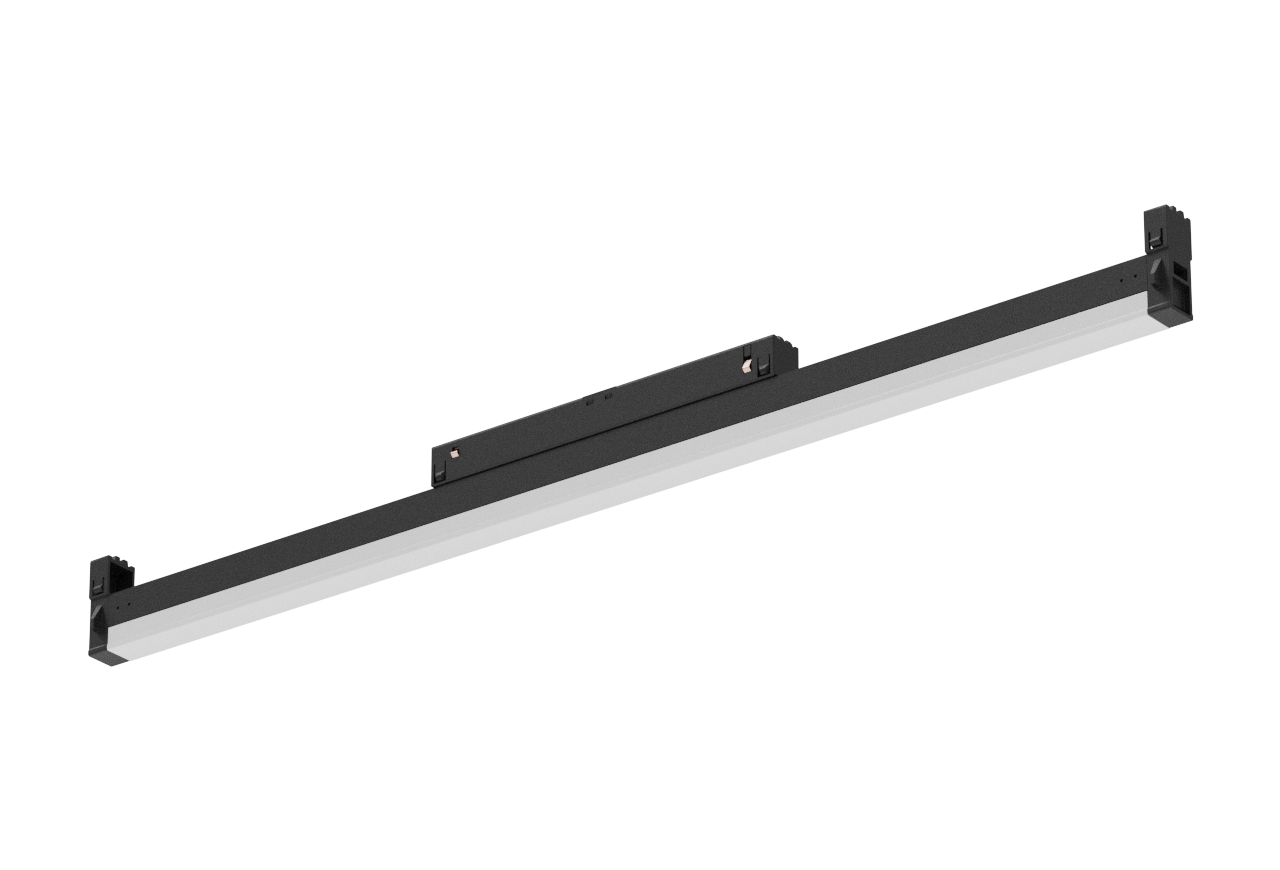

48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO HE OPAL
technical specifications
SENZAFINE EVO HE OPAL
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM14500/BI-O-0-E
CCT4000 K
Length521 mm
CRI80
ColourBlack
Control systemON-OFF
Luminous flux1085 lm
Power8.1 W
Efficiency134.0 lm/W
DetailsCRI≥80: LED
FamilySenzafine HE
Product lineSENZAFINE EVO HE M14
OpticsOPAL (O)
UGR>30
MacAdam≤ 3
Lifetime>60Khr L90B5
Variants96
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO HE OPAL
dimensions

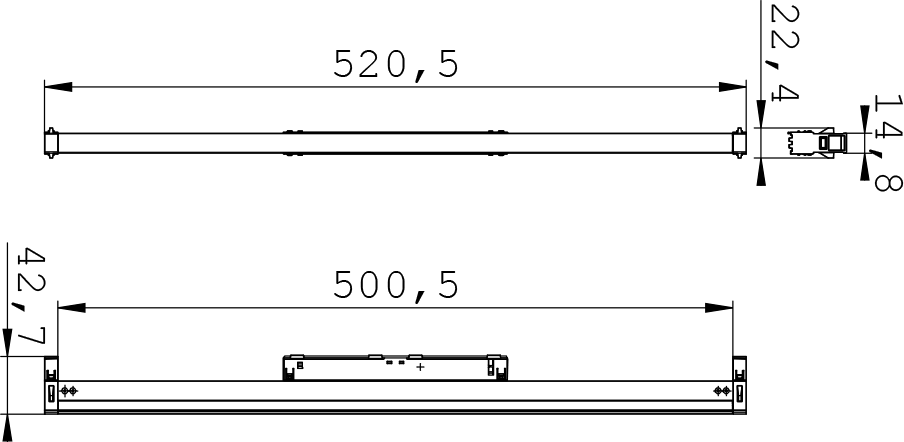

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
