SENZAFINE EVO HE LENS
SENZAFINE EVO HE M14

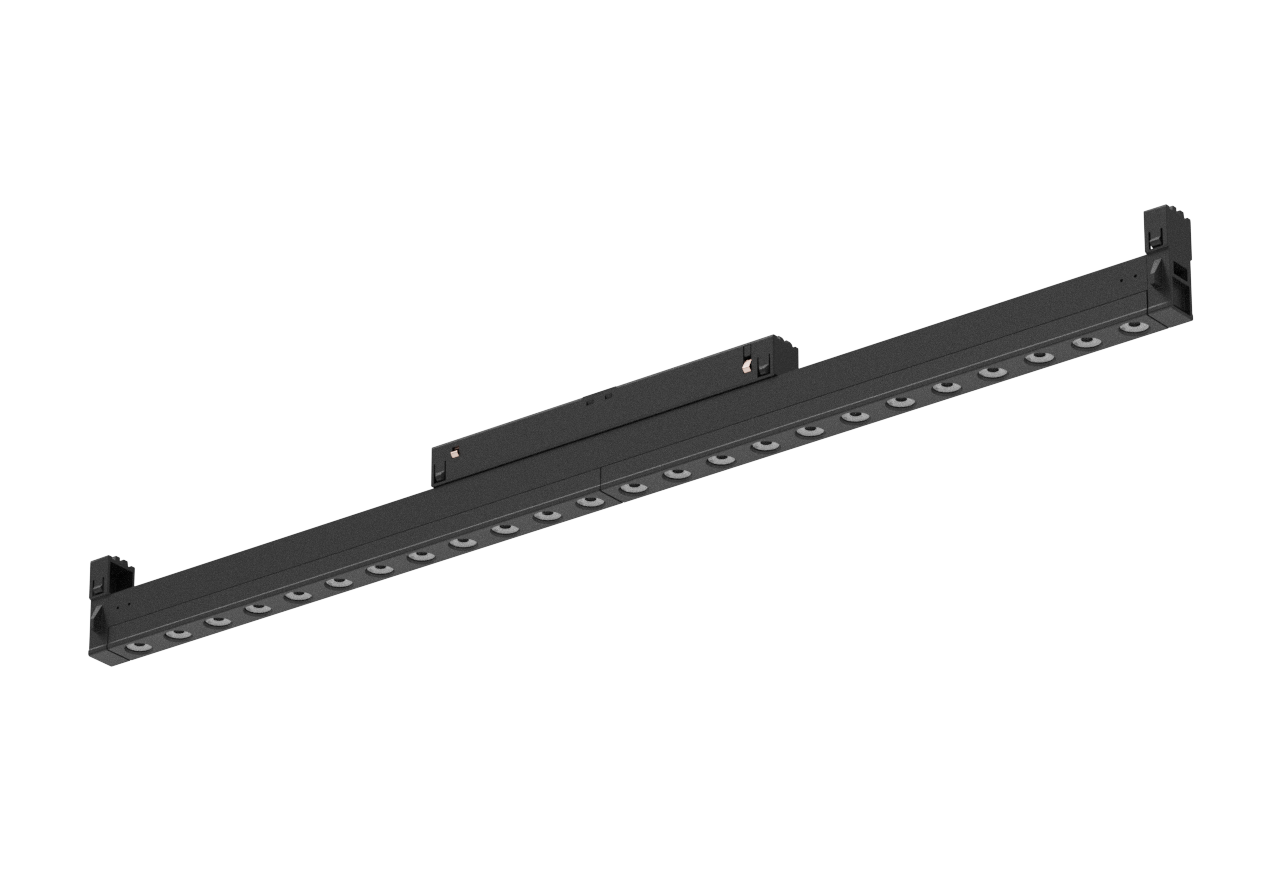

SENZAFINE EVO HE LENS
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate cover.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO HE LENS
technical specifications
SENZAFINE EVO HE LENS
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate cover.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM14500/B5-C-2-E-MV
CCT3000 K
OpticsMEDIUM BEAM LENSES (B)
Length521 mm
CRI90
ColourBlack
Control systemDALI 2
Luminous flux1106 lm
Power11.5 W
Efficiency96.2 lm/W
UGR<13
DetailsPMMA Lens 37°
FamilySenzafine HE
Product lineSENZAFINE EVO HE M14
MacAdam≤ 3
Lifetime>60Khr L90B5
Variants192
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO HE LENS
dimensions

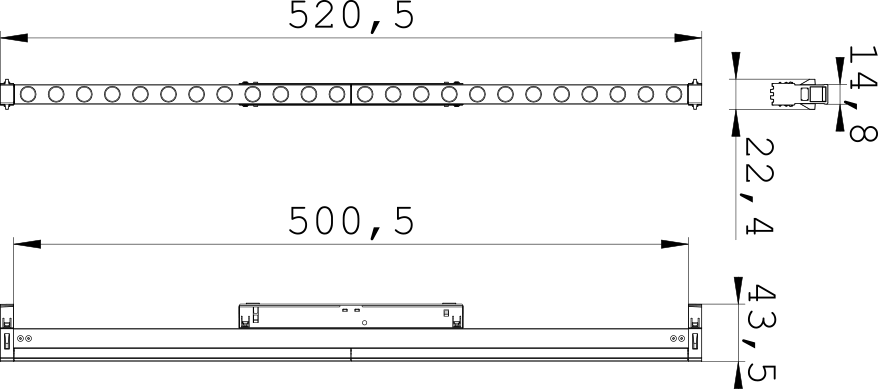

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
