SENZAFINE EVO FLAT UGR
SENZAFINE FLAT EVO M16
SENZAFINE EVO FLAT UGR
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate UGR reflector. Polyamide cover.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO FLAT UGR
technical specifications
SENZAFINE EVO FLAT UGR
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate UGR reflector. Polyamide cover. L(mm): 300.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM16300/B5-U-2
ColourBlack
Luminous flux285 lm
Efficiency58.2 lm/W
FamilySenzafine Flat
Product lineSENZAFINE FLAT EVO M16
CCT3000 K
OpticsUGR REFLECTOR (U)
Length300 mm
CRI90
Control systemDALI
Power4.9 W
UGR<22
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants2
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO FLAT UGR
dimensions

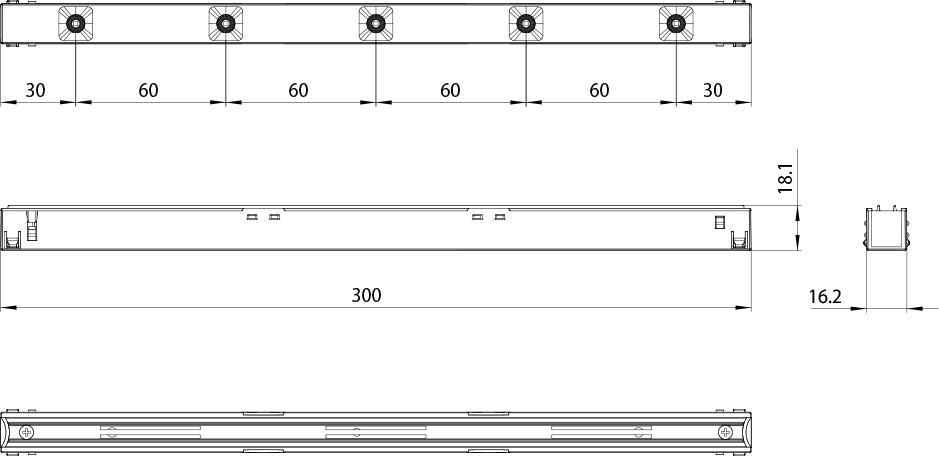

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
