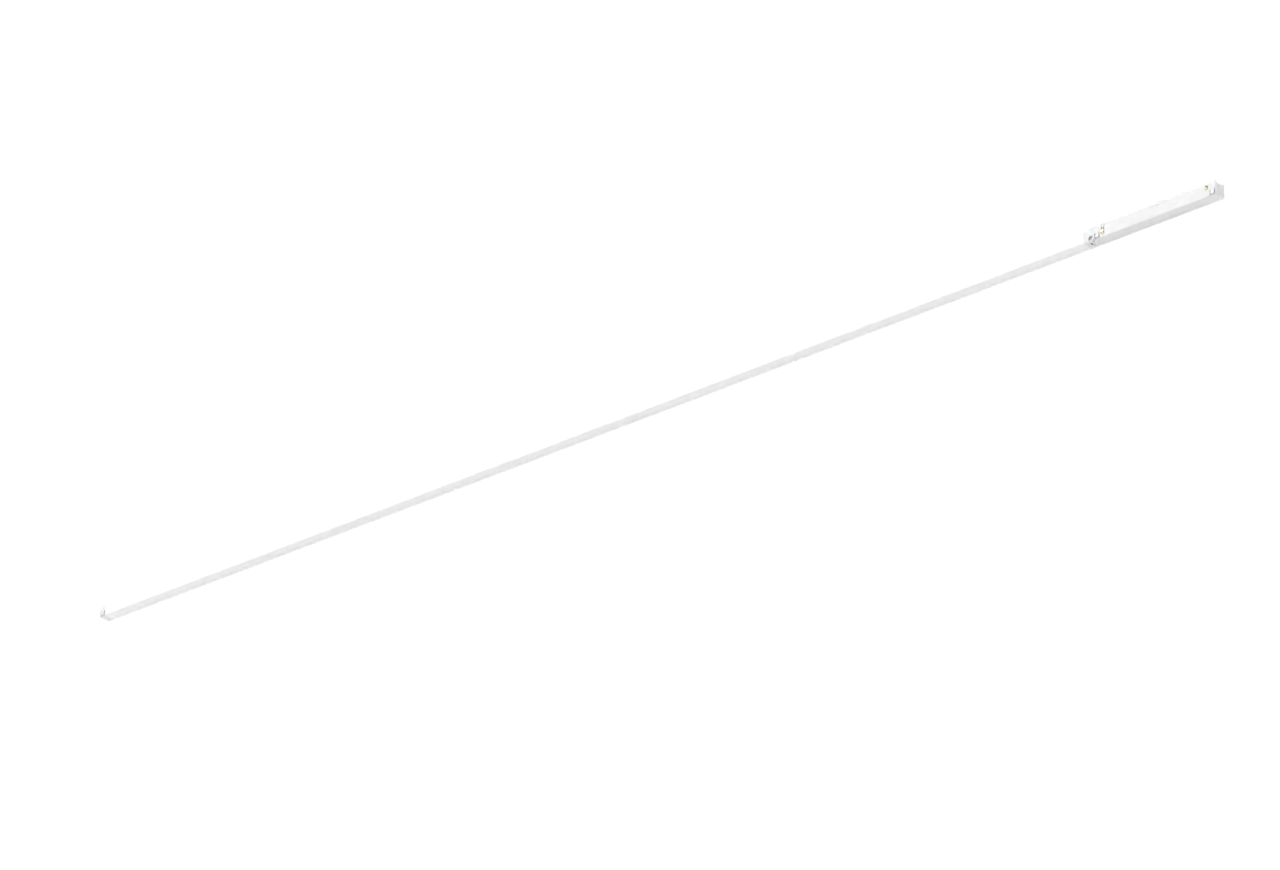

SENZAFINE EVO FLAT OPAL
SENZAFINE FLAT EVO M16
SENZAFINE EVO FLAT OPAL
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO FLAT OPAL
technical specifications
SENZAFINE EVO FLAT OPAL
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM161700/W25-O-1
Length1694 mm
ColourWhite
Control system0...10V
Luminous flux1700,43
Power25,4
Efficiency66,9
FamilySenzafine Flat
Product lineSENZAFINE FLAT EVO M16
CCT3000 K
OpticsOPAL (O)
CRI90
UGR>28
MacAdam≤ 3
Lifetime>50Khr L70B5
Variants18
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO FLAT OPAL
dimensions

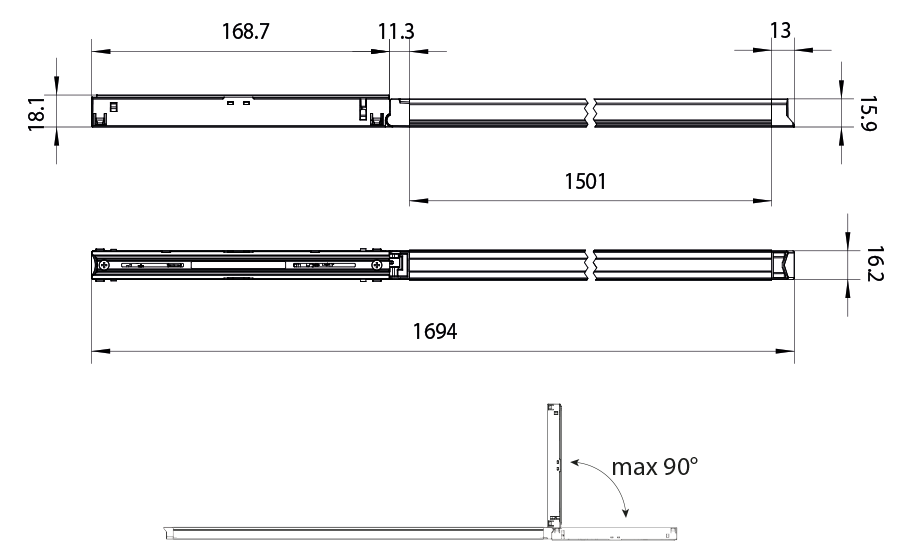

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
