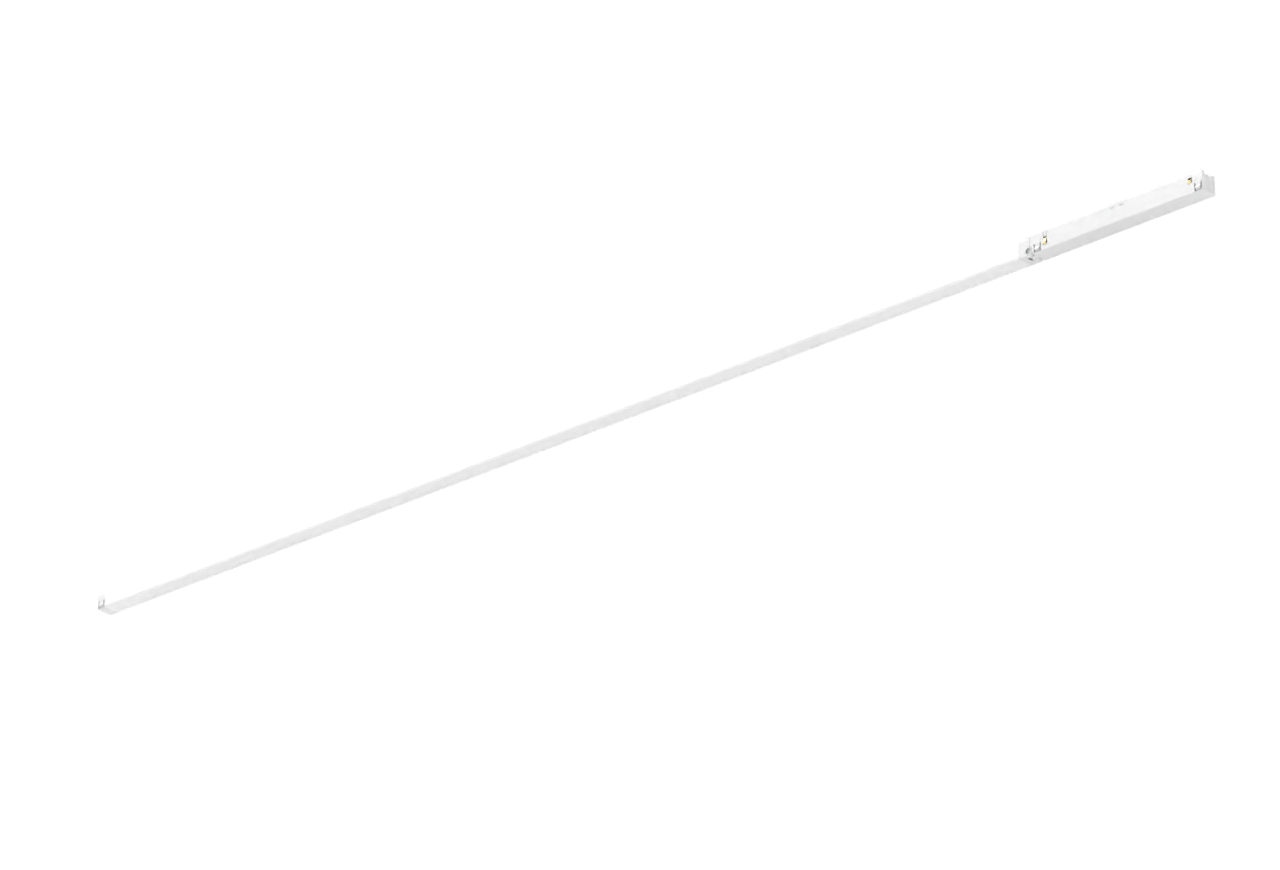

SENZAFINE EVO FLAT OPAL
SENZAFINE FLAT EVO M16
SENZAFINE EVO FLAT OPAL
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO FLAT OPAL
technical specifications
SENZAFINE EVO FLAT OPAL
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate opal screen.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM161200/W25-O-0
Length1194 mm
ColourWhite
Control systemON-OFF
Luminous flux1133,62
Power17,6
Efficiency64.4 lm/W
FamilySenzafine Flat
Product lineSENZAFINE FLAT EVO M16
CCT3000 K
OpticsOPAL (O)
CRI90
UGR>28
MacAdam≤ 3
Lifetime>50Khr L70B5
Variants18
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO FLAT OPAL
dimensions

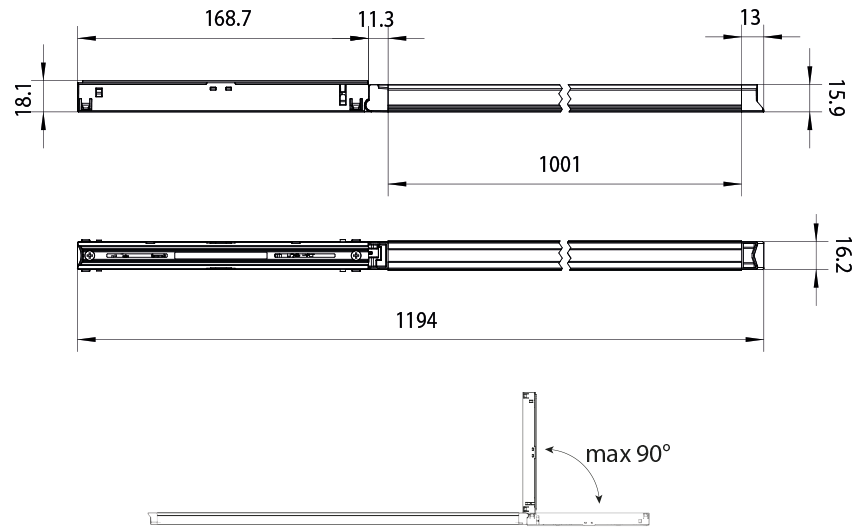

Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
