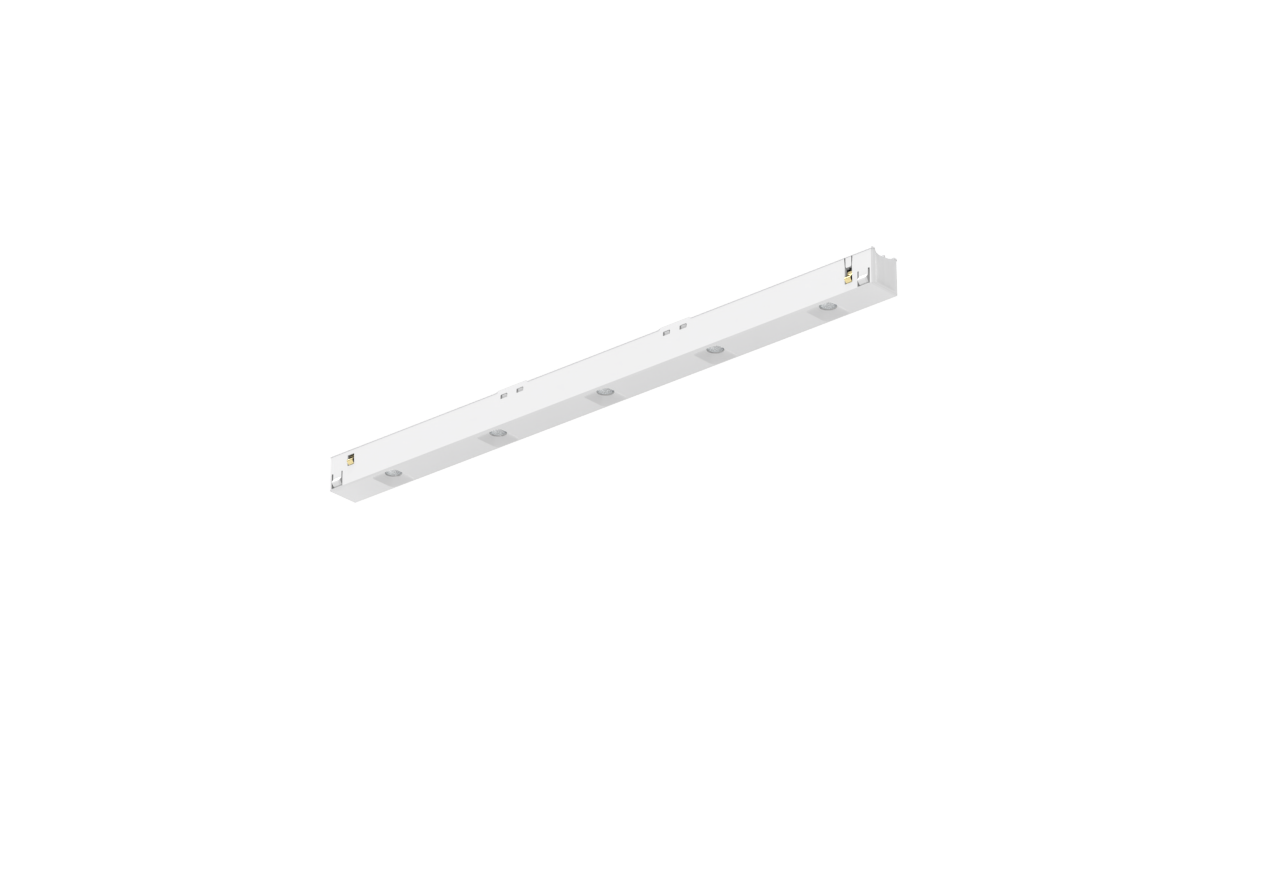

SENZAFINE EVO FLAT LENS
SENZAFINE FLAT EVO M16
SENZAFINE EVO FLAT LENS
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polyamide body. L(mm): 300.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO FLAT LENS
technical specifications
SENZAFINE EVO FLAT LENS
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polyamide body. L(mm): 300.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM16300/W25-E-2
OpticsELLIPTICAL BEAM LENSES (E)
ColourWhite
Luminous flux273 lm
Efficiency55.8 lm/W
UGR<22
DetailsPolycarbonate Lens 26°x42°
FamilySenzafine Flat
Product lineSENZAFINE FLAT EVO M16
CCT3000 K
Length300 mm
CRI90
Control systemDALI
Power4.9 W
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants4
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO FLAT LENS
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
