SENZAFINE EVO CROSS UGR
SENZAFINE EVO CROSS M22C
SENZAFINE EVO CROSS UGR

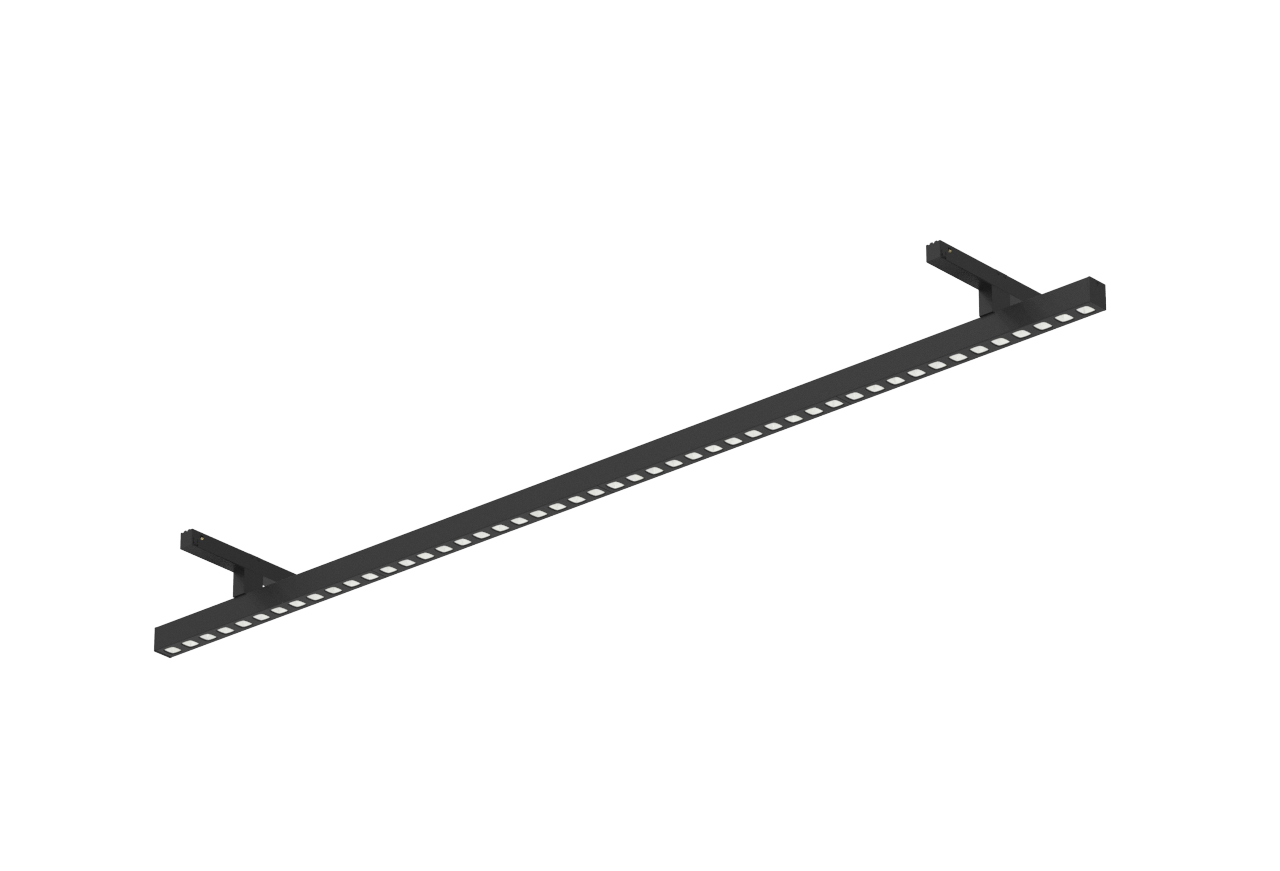

48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate UGR reflector. Polyamide cover.
Products are updated regularly, visit luxtron.net for an updated product list.Page 1
SENZAFINE EVO CROSS UGR
technical specifications
SENZAFINE EVO CROSS UGR
48V linear light module. For 9500 tracks. EVO / MULTISYSTEM®. Aluminum body. Polycarbonate UGR reflector. Polyamide cover. L(mm): 1125.
Track fixtures from
A.A.G. Stucchi

Technical Data

Item codeM22C1128/B3-U-9-E2
CRI95
ColourBlack
Control systemNO DRIVER
Luminous flux1652 lm
Power21.2 W
Efficiency77.9 lm/W
FamilySenzafine Cross
Product lineSENZAFINE EVO CROSS M22C
CCT3000 K
OpticsUGR REFLECTOR (U)
Length1125 mm
UGR<19
MacAdam≤ 3
Lifetime>50Khr L90B10
Variants32
Products are updated regularly, visit luxtron.net for an updated product list.
Original datasheetPage 2
SENZAFINE EVO CROSS UGR
dimensions
Dimension drawing
Products are updated regularly, visit luxtron.net for an updated product list.Page 3
